70100 (10-32) - Toro Recycler Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) ENGINE BRIGGS & STRATTON MODEL 28B707-0122-01 Parts Diagram

Recycler Rear-Engine Riding Mower

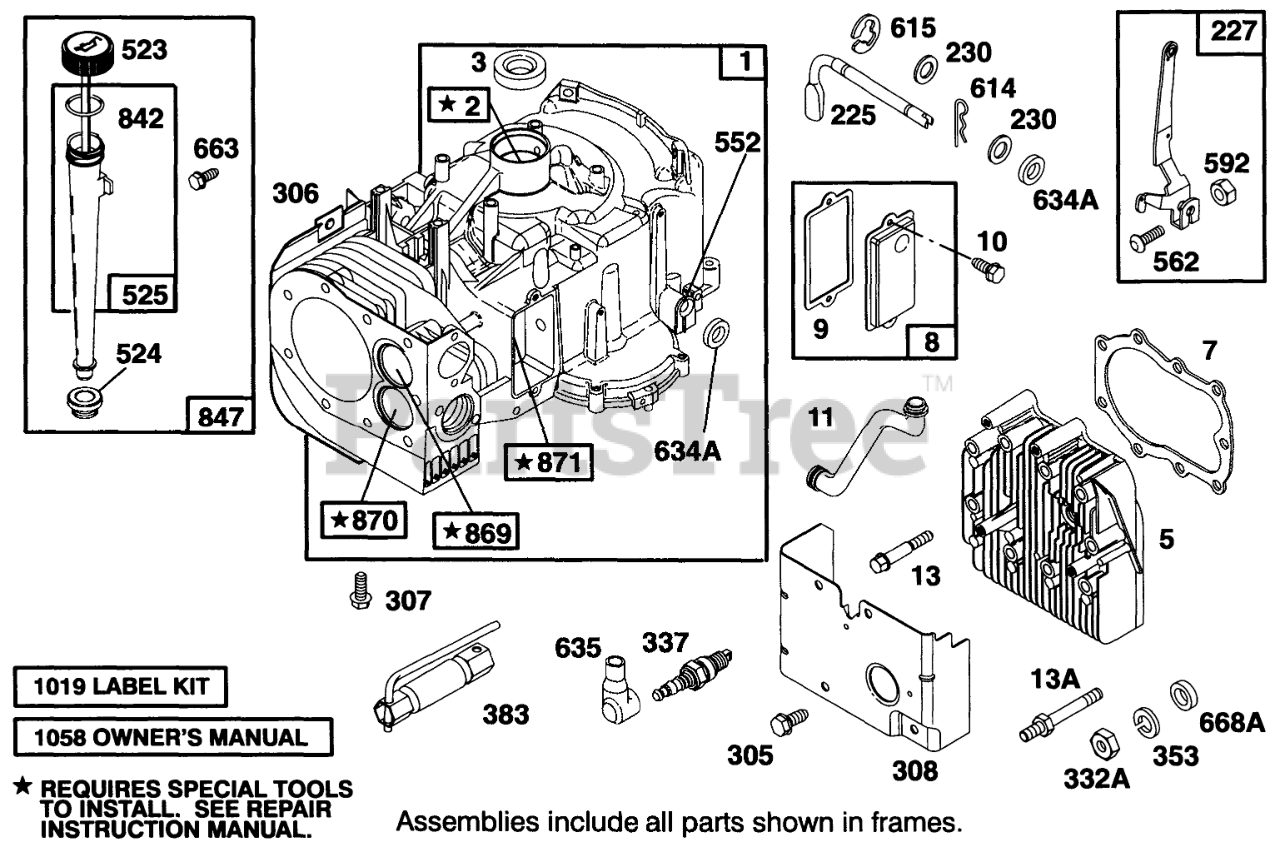

ENGINE BRIGGS & STRATTON MODEL 28B707-0122-01 Parts Diagram

  • Title

1

Briggs & Stratton 496413

Cylinder Assembly

$344.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

Bushing and Seal Kit
(Superseded to 797673)

$18.99

$

In Stock, Qty 7

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 494241.

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 494240

Head-Cylinder

$110.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 271866

Gasket-Cylinder Head
(Superseded to 271866S)

Note: Included in Gasket Set-Part No. 494241.

$9.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton 495735

Breather ASM

$63.99

$

In Stock, Qty 6

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 494241.

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 281246

Tube-Breather
(Superseded to 691328)

$15.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 94622

Screw-Cylinder Head
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

13A

Briggs & Stratton 94776

Stud-Cyl. Head
(Superseded to 691690)

$

$

Not available

74

Briggs & Stratton 93758

Screw-Sem
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

225

Briggs & Stratton 231058

Crank-Governor
(Superseded to 692012)

$13.99

$

In Stock, only 2 left!

0

227

Briggs & Stratton 493935

Lever-Governor
(Superseded to 691374)

$26.99

$

In Stock, only 2 left!

0

230

Briggs & Stratton 94742

Washer-Flat
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

305

Briggs & Stratton 94786

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

306

Briggs & Stratton 224545

Shield-Cylinder
(Superseded to 698477)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94386

Screw-Self Tap
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 491490

Cover-Cylinder Head
(Superseded to 698476)

$49.99

$

In Stock, only 1 left!

0

332A

Briggs & Stratton 94314

Nut
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

353

Briggs & Stratton 94315

Lockwasher
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

523

Briggs & Stratton 495229

Dipstick
(Superseded to 692013)

$25.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 281370

Seal
(Superseded to 281370S)

Note: Included in Gasket Set-Part No. 494241.

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 496068

Tube-Oil Filler
(Superseded to 690841)

$22.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 231597

Nut-Hex.
(Superseded to 491986)

$

$

Not available

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 3 left!

0

634A

Briggs & Stratton 491323

Seal-Oil
(Superseded to 692407)

Note: Included in Gasket Set-Part No. 494241.

$7.99

$

In Stock, Qty 7

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

663

Briggs & Stratton 94073

Screw-Sem
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

668A

Briggs & Stratton 231109

Spacer
(Superseded to 690510)

$6.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 494241.

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 496367

Fill Group-Oil

$30.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 261463

Seat-Intake Valve
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 213316

CG7024 TWO WHEEL TR
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 261961

Manual-Owner's

$14.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491254

Label Kit

$27.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 272697

Owner-s Manual

$

$

Not available
