7010 (1690334) - Simplicity 42" Garden Tractor, 10hp Wheel, Axle & Steering Group (7010 & 7016) Parts Diagram

42" Garden Tractor, 10hp

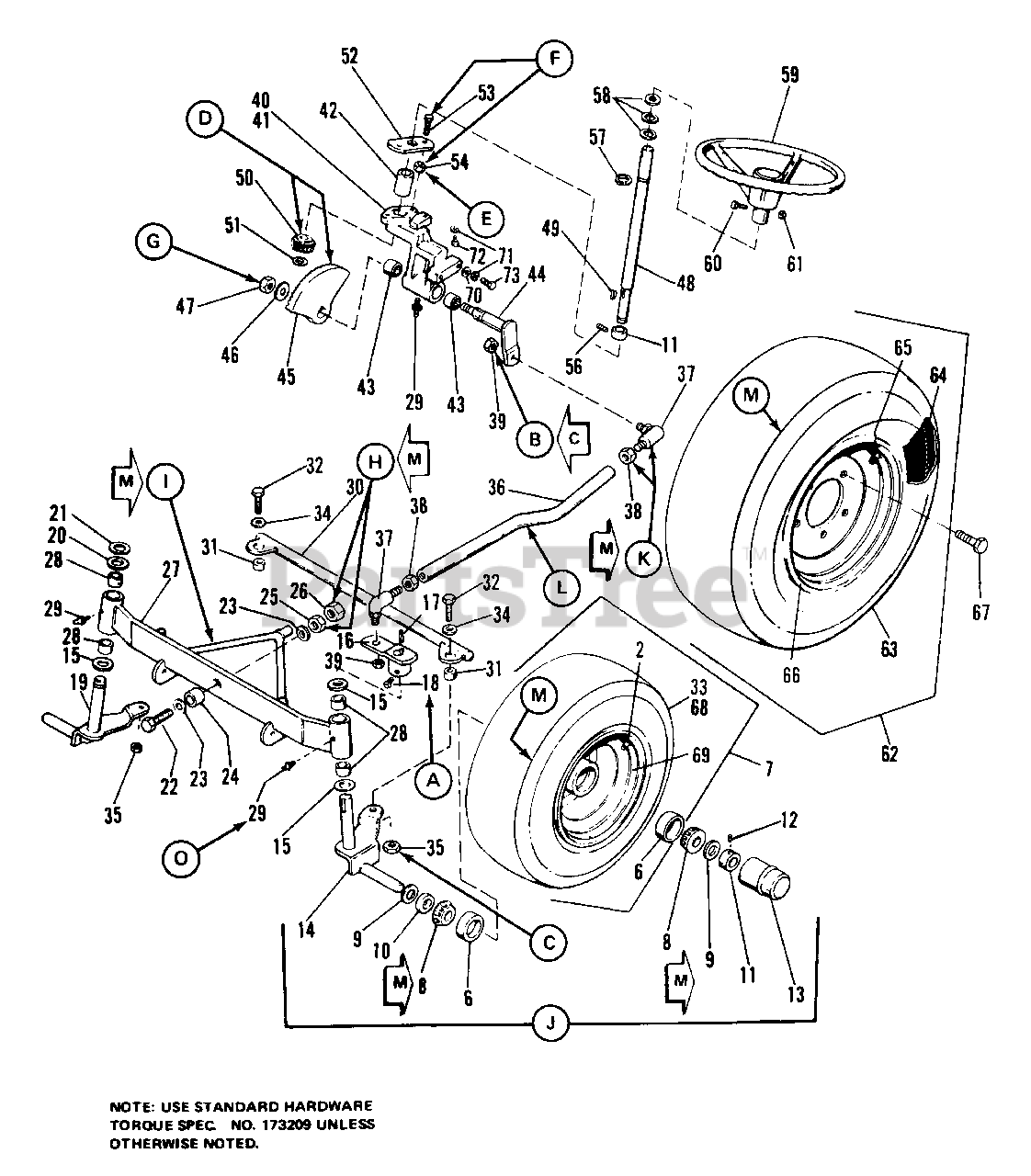

Wheel, Axle & Steering Group (7010 & 7016) Parts Diagram

  • Title

2

Simplicity 2156305

VALVE STEM & CAP

$

$

Not available

6

Simplicity 2154393SM

CUP, Bearing (7010 Only)

$22.99

$

In Stock, only 3 left!

0

7

Simplicity 171376

WHEEL & TIRE ASSY

$

$

Not available

8

Simplicity 2154486SM

CONE, Bearing

$36.99

$

In Stock, Qty 6

0

9

Simplicity 2171375SM

SPACER

$15.99

$

In Stock, Qty 12

0

10

Simplicity 2170168SM

SEAL

$38.99

$

Usually ships in 2-12 days

0

11

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$

$

Not available

12

Simplicity 2828691

SETSCREW, Sq. Hd., Cup Pt., 5/16-18 x 5/16

$

$

Not available

13

Simplicity 2154487SM

CAP, Hub
(Superseded to 2154487YP)

$9.99

$

In Stock, Qty 20+

0

14

Simplicity 2171774ASM

SPINDLE ASSY, LH.

$353.99

$

Usually ships in 2-12 days

0

15

Simplicity 2108181

WASHER

$

$

Not available

16

Simplicity 2170998SM

ARM, Steering L.H.

$

$

Not available

17

Simplicity 2157427SM

KEY, Square

$5.49

$

In Stock, only 1 left!

0

18

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 10

0

19

Simplicity 2157494SM

SPINDLE ASSY, R.H.
(Superseded to 2157494ASM)

$148.99

$

Usually ships in 2-12 days

0

20

Simplicity 1729259SM

WASHER

$5.99

$

In Stock, Qty 7

0

21

Simplicity 2827794SM

"E" RING, External

$3.49

$

In Stock, Qty 16

0

22

Simplicity 2827469

CAPSCREW, Hex Hd., 1/2-13 x 2-1/4

$

$

Not available

23

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

24

Simplicity 2157618SM

SPACER

$23.99

$

Usually ships in 2-12 days

0

25

Simplicity 2830648

LOCKNUT, Hex, 1/2-13

$

$

Not available

26

Simplicity 2813744

NUT, Jam Hex, 1/2-13

$

$

Not available

27

Simplicity 1650553SM

FRONT AXLE ASSY

$463.99

$

Usually ships in 2-12 days

0

28

Simplicity 2154289SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

29

Simplicity 2814687

FITTING, Grease

$

$

Not available

30

Simplicity 2157499SM

TIE ROD ASSY
(Superseded to 2157499ASM)

$122.99

$

Usually ships in 2-12 days

0

31

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 1 left!

0

32

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

$

$

Not available

33

Simplicity 2157490

TIRE, 16x6.50-8, Goodyear

$

$

Not available

33

Simplicity 1709381SM

TIRE, 16x6.50-8, Carlisle

$

$

Not available

34

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 1930645SM

LOCKNUT. Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

36

Simplicity 171830

LINK, Drag

$

$

Not available

37

Simplicity 2164272SM

JOINT, Ball

$71.99

$

In Stock, Qty 8

0

38

Simplicity 2819262

NUT, Jam Hex, 1/2-20

$

$

Not available

39

Simplicity 2830245

LOCKNUT, Hex, 1/2-20

$

$

Not available

40

Simplicity 2171832

STEERING HOUSING ASSY,(Incl. Ref. No's 41, 42 & 43)

$

$

Not available

41

HOUSING, Steering

$

$

Not available

42

Simplicity 2170992SM

BUSHING

$25.99

$

Usually ships in 2-12 days

0

43

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, Qty 8

0

44

Simplicity 170999

STEERING ARM ASSEMBLY

$

$

Not available

45

Simplicity 2170987SM

GEAR, Bevel

$62.99

$

Usually ships in 2-12 days

0

46

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

47

Simplicity 2824058

LOCKNUT, Hex, 7/16-14

$

$

Not available

48

Simplicity 171020

SHAFT, Steering

$

$

Not available

49

Simplicity 2810224SM

KEY, Woodruff, No. 6, 5/32 x 5/8

$3.99

$

Usually ships in 2-12 days

0

50

Simplicity 2170988SM

PINION, Bevel

$

$

Not available

51

Simplicity 2827793SM

"E" RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

52

Simplicity 2171000SM

PLATE, Steering

$49.99

$

Usually ships in 2-12 days

0

53

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

54

Simplicity 2828731

LOCKNUT, 3/8-16

$

$

Not available

56

Simplicity 2828734

SETSCREW, Sq. Hd., 5/16-18 x 1/4

$

$

Not available

57

Simplicity 2154264SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

58

Simplicity 158223

WASHER

$

$

Not available

59

Simplicity 1606342SM

WHEEL, Steering

$

$

Not available

60

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

61

Simplicity 2829001

LOCKNUT, Flange, 5/16-18

$

$

Not available

62

Simplicity 173431

WHEEL & TIRE ASSEMBLY (7010 Only)

$

$

Not available

62

Simplicity 173432

WHEEL & TIRE ASSY. (1690423 Only)

$

$

Not available

62

Simplicity 1657752

WHEEL & TIRE ASSY, R.H. (1690425 Only)

$

$

Not available

62

Simplicity 1657753

WHEEL & TIRE ASSY., L H. (1690425 Only)

$

$

Not available

63

Simplicity 157024

TIRE, 23-8.50 x 12, Goodyear (7010 Only)

$

$

Not available

63

Simplicity 1605968

TIRE, 23-8.50 x 12 Carlisle (7010 Only)

$

$

Not available

63

Simplicity 1709969SM

TIRE, Turf, 23-10.50, Carlisle (1690423 Only)
(Superseded to 1722830SM)

$242.99

$

Usually ships in 2-12 days

0

63

Simplicity 1709969SM

TIRE, Turf, 23-10.50, Firestone (1690423 Only)
(Superseded to 1722830SM)

$242.99

$

Usually ships in 2-12 days

0

63

Simplicity 1657694SM

TIRE, Ag., 23-10 50 (1690425 Only)

$249.99

$

Usually ships in 2-12 days

0

64

Simplicity 157602

TUBE (7010 Only)

$

$

Not available

64

Simplicity 2157638SM

TUBE (7016 Only)

$86.99

$

In Stock, only 2 left!

0

65

Simplicity 2172353SM

STEM & VALVE CAP (7010 Only)
(Superseded to 024373MA)

$

$

Not available

66

Simplicity 2173430

WHEEL, Drive (7010 Only)

$

$

Not available

67

Simplicity 1729280SM

BOLT, Hub

$6.49

$

In Stock, only 2 left!

0

68

Simplicity 2164247SM

TUBE, (7016 0nly)

$40.99

$

Usually ships in 2-12 days

0

69

Simplicity 2171377

WHEEL ASSY (7016 Only)

$

$

Not available

70

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

71

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

72

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

73

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available
