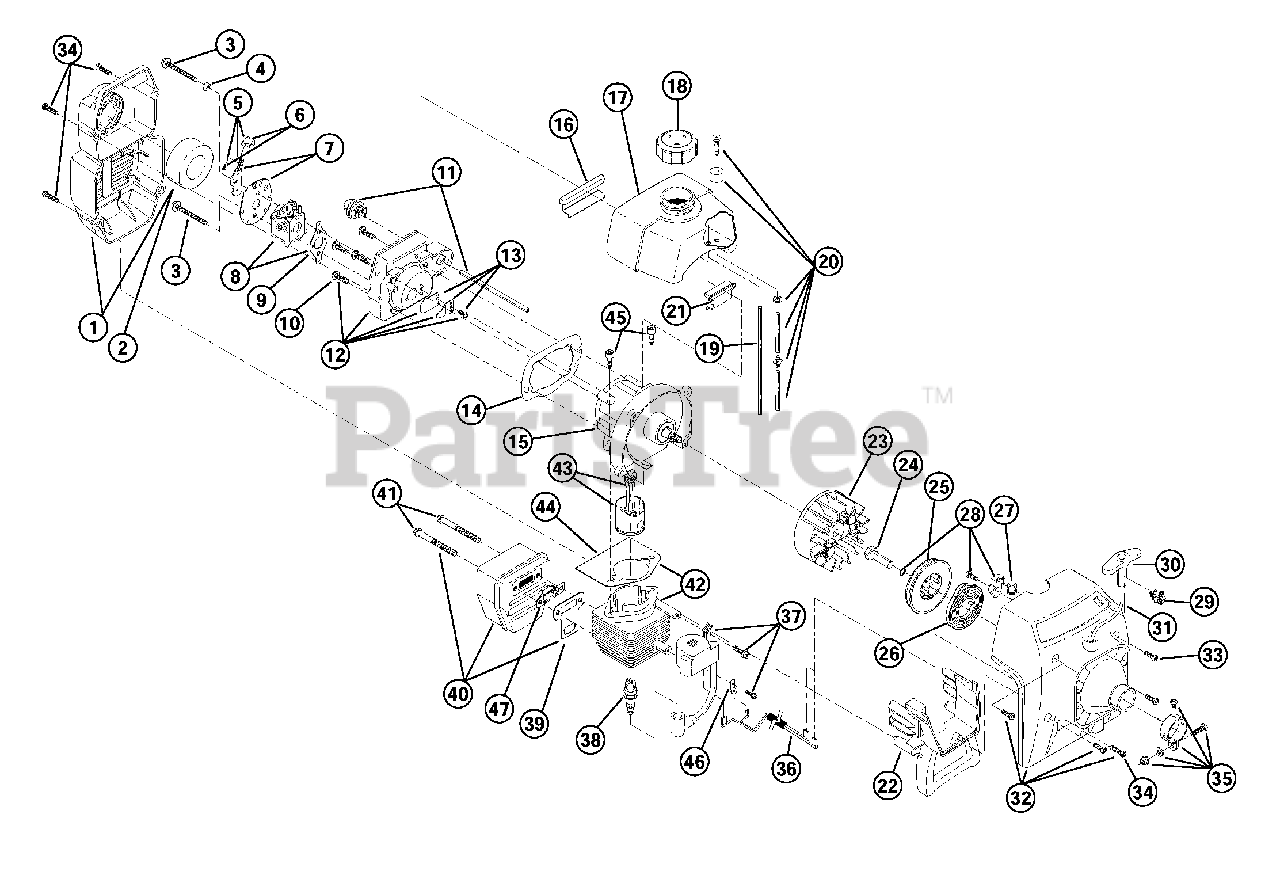

700r VP (41CD7VPG034) - Ryobi String Trimmer Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

MTD 791-182059

Air Cleaner/Muffler Cover Assembly
(Superseded to 753-04511)

Note: (includes 2 & 34)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350

Air Cleaner Filter
(Superseded to 791-180350B)

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 791-182060

Choke Lever Assembly
(Superseded to 753-04419)

Note: (includes 6)

$

$

Not available

6

MTD 791-182061

Choke Knob and Screw
(Superseded to 753-04418)

$

$

Not available

7

MTD 791-182162

Choke Lever and Plate
(Superseded to 753-04419)

Note: (includes 4 & 5)

$

$

Not available

8

MTD 753-04320

Carburetor Assembly

Note: (includes 9 & 20)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-181558

Primer and Hose Assembly
(Superseded to 791-683974B)

$22.99

$

In Stock, Qty 18

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

15

MTD 753-04321

Crank Case Service Assembly

Note: (includes 10)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 791-181152

Fuel Tank Assembly

Note: (includes 18-20)

$

$

Not available

18

MTD 791-182438

Fuel Cap Assembly
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 9

0

19

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

23

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

24

MTD 791-610303

Square Nut Drive

$

$

Not available

25

MTD 753-04232

Recoil Pulley Assembly

Note: (includes 28)

$

$

Not available

26

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

27

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

28

MTD 791-181889

Pulley Retainer Assembly

$6.49

$

Usually ships in 3-6 days

0

29

MTD 753-04241

Switch Assembly

Note: (includes 36)

$

$

Not available

30

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

31

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

32

MTD 753-04300

Starter Housing Assembly

Note: (includes 25-31, 33 & 34)

$

$

Not available

33

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

34

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

35

MTD 791-153597

Upper Clamp Assembly

$

$

Not available

36

MTD 753-04242

Wire Lead
(Superseded to 794-00028)

$9.49

$

Usually ships in 3-6 days

0

37

MTD 753-04324

Module Assembly

$110.99

$

In Stock, only 1 left!

0

38

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$14.99

$

In Stock, only 3 left!

0

39

MTD 753-04159

Exhaust Gasket
(Superseded to 753-04619)

$9.49

$

In Stock, only 1 left!

0

40

MTD 791-182066

Muffler Assembly
(Superseded to 753-05169)

Note: (includes 39, 41 & 47)

$112.99

$

Usually ships in 3-6 days

0

41

MTD 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

42

MTD 753-04323

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 44 & 45)

$83.99

$

In Stock, only 1 left!

0

43

MTD 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

44

MTD 753-1197

Cylinder Gasket

$

$

Not available

45

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

46

MTD 791-611063

Ground Tab

$

$

Not available

47

MTD 791-182747

Spark Arrestor

$

$

Not available

MTD 753-04134

Engine Gasket Kit

Note: Items Not Shown

$

$

Not available

MTD 791-180602

O.E.M. Carburetor Repair Kit (Walbro)

Note: Items Not Shown

$71.99

$

Usually ships in 3-6 days

0

MTD 791-181069

Gasket Diaphragm Repair Kit (Walbro)

Note: Items Not Shown

$39.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring

Note: Items Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04322

Short Block Assembly

Note: (includes 15, 23-24, 38, 42-45); Items Not Shown

$

$

Not available
