700r (41DD700G034) - Ryobi String Trimmer Boom And Trimmer Parts Diagram

String Trimmer

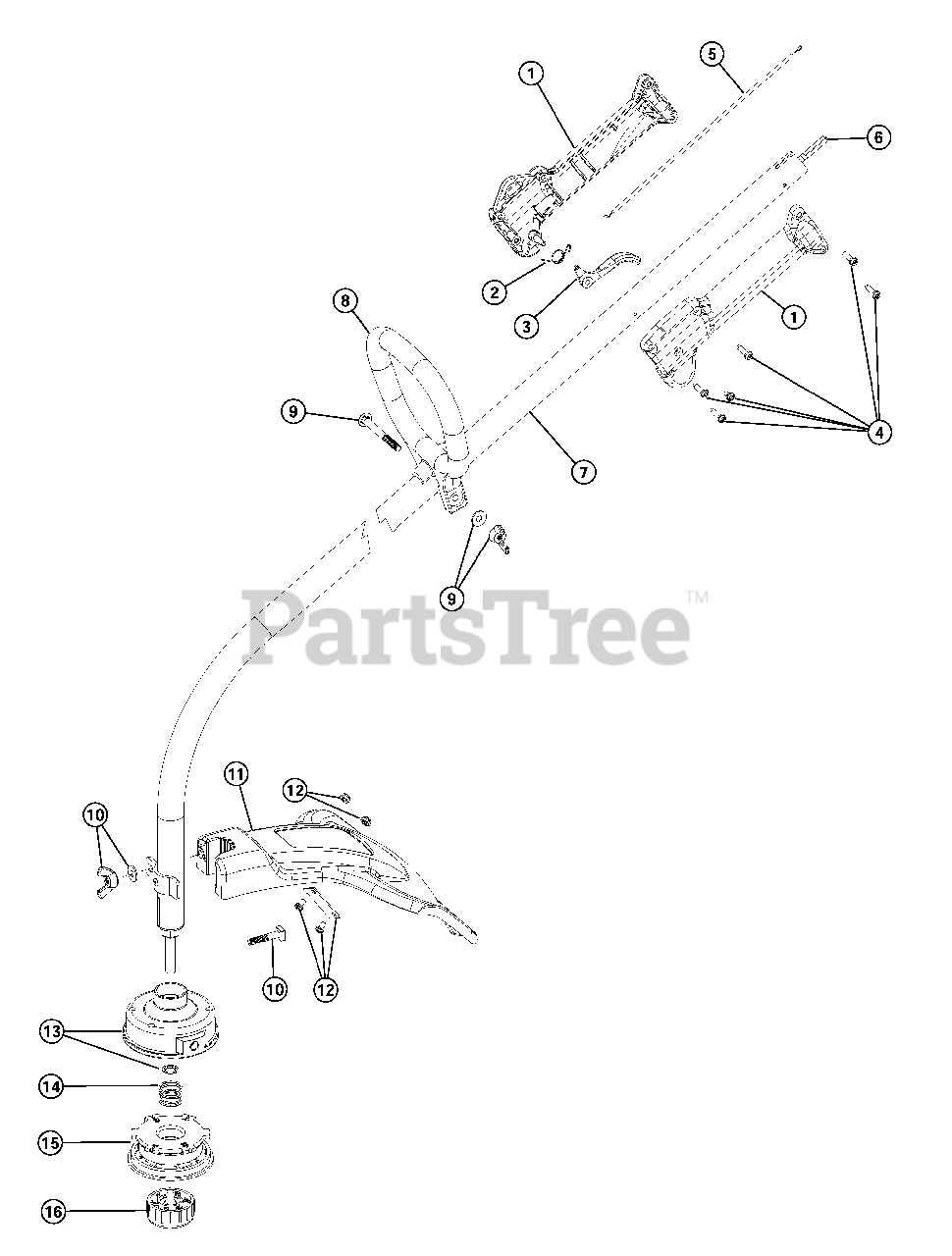

Boom And Trimmer Parts Diagram

  • Title

1

MTD 791-182069

Throttle Housing and Trigger Assembly
(Superseded to 753-04927)

Note: (includes 2-4)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 791-181556

Throttle Trigger
(Superseded to 791-181807)

$9.99

$

In Stock, Qty 7

0

4

MTD 791-145888

Throttle Housing Screws

$

$

Not available

5

MTD 791-182068

Throttle Cable

$20.99

$

In Stock, only 2 left!

0

6

MTD 753-04280

Flexible Drive Shaft

$81.99

$

Usually ships in 3-6 days

0

7

MTD 753-04281

Drive Shaft Housing Assembly

Note: (includes 6 & 13)

$

$

Not available

8

MTD 791-153064

D-Handle Assembly

Note: (includes 9)

$

$

Not available

9

MTD 791-153317

D-Handle Hardware
(Superseded to 791-181587)

$19.99

$

In Stock, only 1 left!

0

10

MTD 753-04282

Guard Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

11

MTD 753-04283

Guard

$50.99

$

In Stock, only 1 left!

0

12

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

13

MTD 753-04284

Outer Reel w/Retainer

$28.99

$

In Stock, only 2 left!

0

14

MTD 791-610317

Spring
(Superseded to 791-610317B)

$10.99

$

In Stock, only 2 left!

0

15

MTD 791-610318

Inner Reel
(Superseded to 753-1155)

$22.99

$

In Stock, Qty 20+

0

16

MTD 791-153066

Bump Knob
(Superseded to 791-153066B)

$13.99

$

In Stock, Qty 18

0

MTD 791-153577

Inner Reel and Line
(Superseded to 791-153577B)

Note: Optional Accessories; Items Not Shown

$28.99

$

In Stock, only 2 left!

0

MTD 791-682075

Shoulder Strap Assembly
(Superseded to 791-682075B)

Note: Optional Accessories; Items Not Shown

$38.99

$

Usually ships in 3-6 days

0
