70089 (12-32) - Toro Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) STAND BAR ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

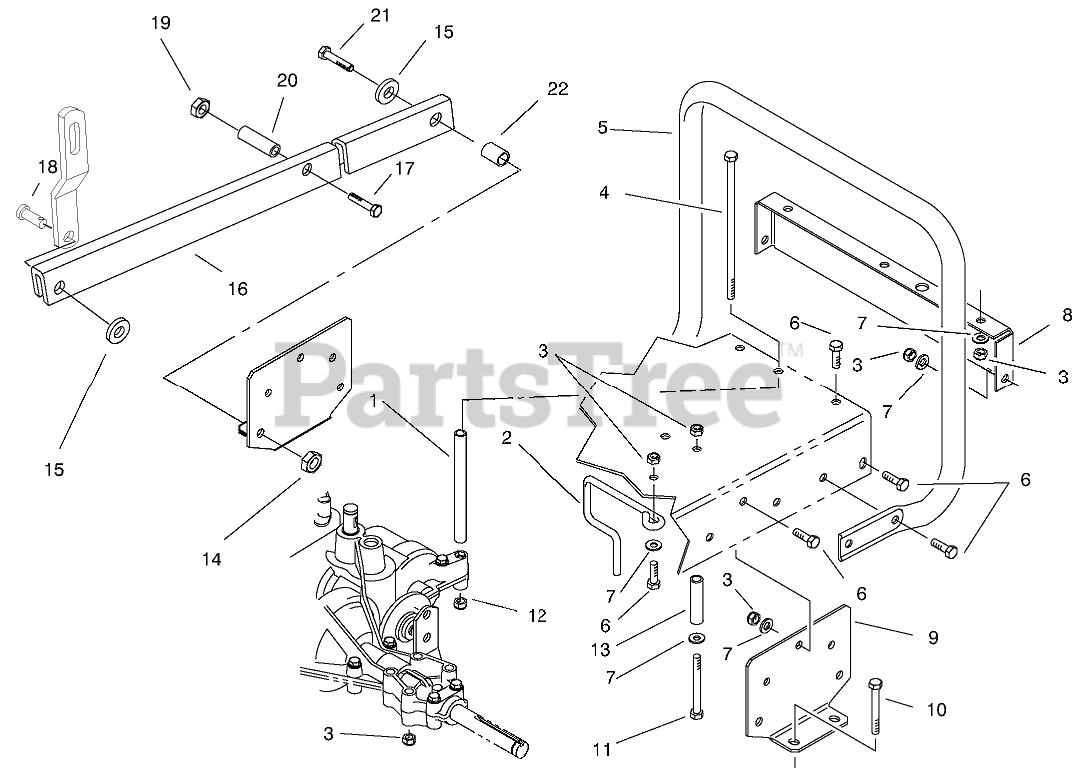

STAND BAR ASSEMBLY Parts Diagram

  • Title

1

Toro 92-0897

SPACER-TRANSAXLE SUPT

$

$

Not available

2

Toro 92-0898

GUIDE-ENG BELT

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

5

Toro 92-0864-03

STANDBAR

$

$

Not available

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 92-0861-01

FRAME - REAR

$

$

Not available

9

Toro 92-0865-01

SUPPORT-AXLE

$

$

Not available

10

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

11

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

12

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

13

Toro 76-1560

SPACER-SPLIT TUBE

$37.99

$

Usually ships in 3-6 days

0

14

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

16

Toro 76-1540-01

ARM-RH DECK SUSP.

$

$

Not available

Toro 76-1550-01

ARM-LH DECK SUSP.

Note: Not illustrated

$

$

Not available

17

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

18

Toro 283-42

PIN-CLEVIS

$48.99

$

Usually ships in 3-6 days

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

20

Toro 76-1560

SPACER-SPLIT TUBE

$37.99

$

Usually ships in 3-6 days

0

21

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 56-7430

PIN-SUPT ARM

$15.99

$

Usually ships in 3-6 days

0
