70089 (12-32) - Toro Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) ENGINE BRIGGS & STRATTON MODEL 28M707-1182-E1 Parts Diagram

Rear-Engine Riding Mower

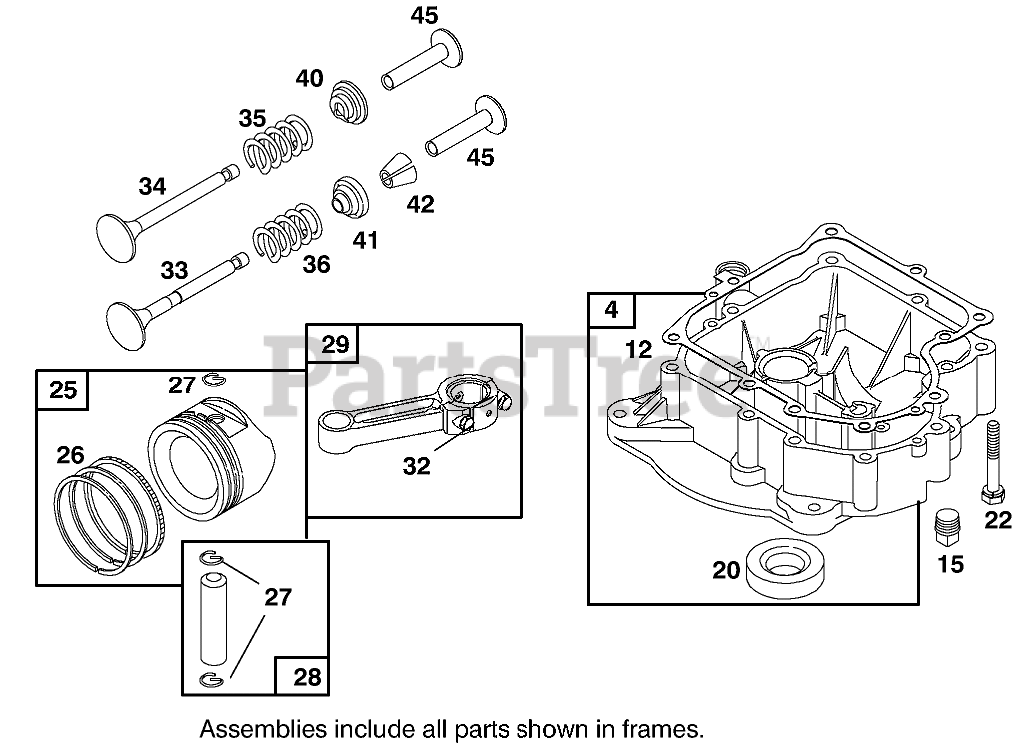

ENGINE BRIGGS & STRATTON MODEL 28M707-1182-E1 Parts Diagram

  • Title

4

Briggs & Stratton 494238

Base-Engine

$

$

Not available

12

Briggs & Stratton 271916

Gasket-Crankcase (1/64")
(Superseded to 692226)

Note: Included in Carburetor Kit-Part No. 499220.

$6.99

$

In Stock, only 2 left!

0

Briggs & Stratton 271997

Gasket-Crankcase (.005")
(Superseded to 692406)

Note: Included in Carburetor Kit-Part No. 499220.

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 271996

Gasket-Crankcase (.009")
(Superseded to 692405)

Note: Included in Carburetor Kit-Part No. 499220.

$6.49

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94239

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

Note: Included in Carburetor Kit-Part No. 499220.

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 95187

Screw-Hex.
(Superseded to 692125)

$4.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 499282

Piston Assy. (Std.)
(Superseded to 499284)

$

$

Not available

Toro 499286

Piston Assy. (.010"O.S.)

$

$

Currently unavailable

Briggs & Stratton 499290

Piston Assy. (.020"O.S.)
(Superseded to 499292)

$

$

Not available

Toro 499294

Piston Assy. (.030"O.S.)

$

$

Currently unavailable

26

Briggs & Stratton 391780

Ring Set (Std.)
(Superseded to 499996)

$53.99

$

In Stock, only 1 left!

0

Briggs & Stratton 391781

Ring Set (.010 O.S.)

$

$

Not available

Briggs & Stratton 391782

Ring Set (.020 O.S.)
(Superseded to 499998)

$67.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391783

Ring Set (.030" O.S.)

$

$

Not available

27

Briggs & Stratton 263129

Lock-Piston Pin
(Superseded to 691299)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498319

Pin-Piston (Std.)

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 498320

Pin-Piston (.005 O.S.)

$19.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 490348

Rod-Connecting

$50.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 490469

Rod-Connecting (.020" U.S.)
(Superseded to 495490)

$

$

Not available

32

Briggs & Stratton 94671

Screw-Conn. Rod
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 262246

Valve-Exhaust
(Superseded to 262246S)

$

$

Not available

34

Briggs & Stratton 262247

Valve-Intake
(Superseded to 262247S)

$

$

Not available

35

Briggs & Stratton 65906

Spring-Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring-Valve
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 221596

Retainer-Valve
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Retainer-Valve
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

Keeper-Valve

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 262248

Tappet
(Superseded to 691811)

$6.99

$

Usually ships in 2-12 days

0
