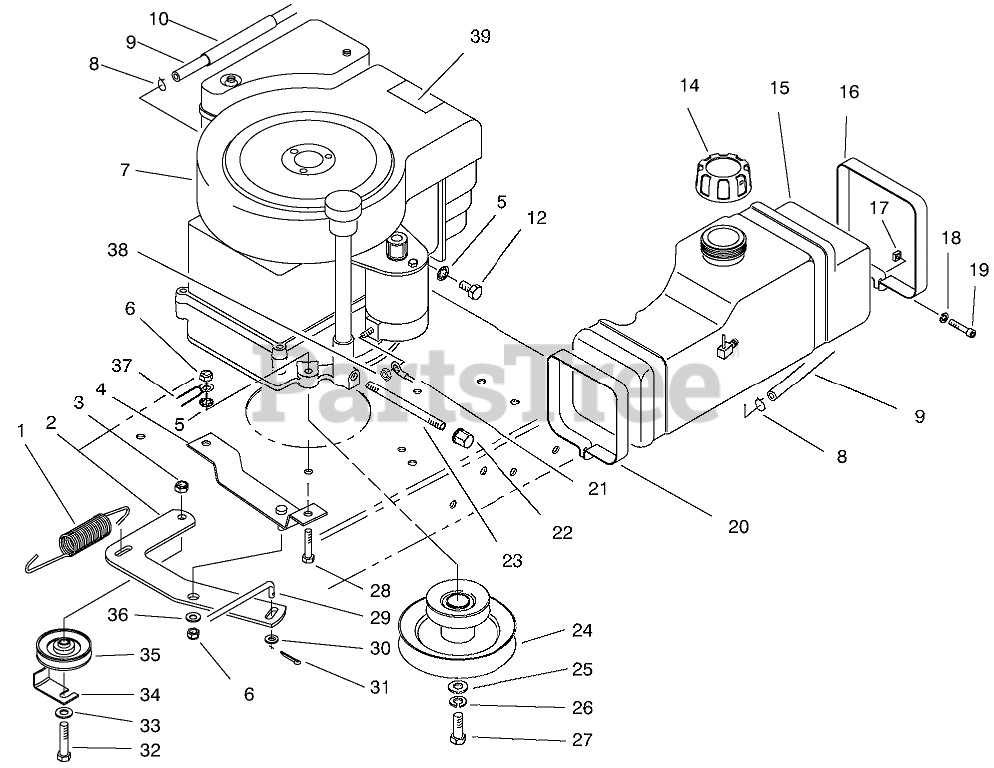

70089 (12-32) - Toro Rear-Engine Riding Mower (SN: 210000001 - 210999999) (2001) ENGINE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 92-0879

SPRING-TRACTION

$40.99

$

Usually ships in 3-6 days

0

2

Toro 92-0883-03

BRKT-TRACTION PIVOT

$

$

Not available

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

4

Toro 92-0881-03

TRACT SUPT BRKT WA (BLACK)

$

$

Not available

5

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Engine-11.5 H .P.

$

$

Not available

8

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

9

Toro 47-2961

HOSE - FUEL
(Superseded to 108-4582)

$11.99

$

In Stock, only 1 left!

0

10

Toro 62-5490

SUPPORT-FUEL LINE

$

$

Not available

12

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

14

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

15

Toro 56-7050

TANK-5 QT GAS

$197.99

$

In Stock, only 1 left!

0

16

Toro 57-4060-03

RETAINER-FRT TANK

$

$

Not available

17

Toro 32107-11

NUT-SQUARE

$

$

Not available

18

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 3274-51

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 57-4070-03

RETAINER-REAR TANK

$

$

Not available

21

Toro 56-7670

WIRE ASM

$31.99

$

In Stock, only 2 left!

0

22

Toro 288-10

CAP-PIPE

$10.99

$

Usually ships in 3-6 days

0

23

Toro 289-19

NIPPLE

$

$

Not available

24

Toro 92-0873

PULLEY-ENGINE

$164.99

$

Usually ships in 3-6 days

0

25

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 62-3760

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

28

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 92-0871

ROD-TRACTION

$

$

Not available

30

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

32

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

34

Toro 12-9020

RETAINER-BELT

$

$

Not available

35

Toro 12-5820

PULLEY-IDLER

$29.99

$

In Stock, Qty 6

0

36

Toro 3256-57

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

37

Toro 54-3090

WIRE ASM

$

$

Not available

38

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

39

Toro 98-0745

DECAL - ENGINE

$

$

Not available
