70082 (12-32) - Toro Rear-Engine Riding Mower (SN: 089000001 - 089999999) (1998) TRANSMISSION LINKAGE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

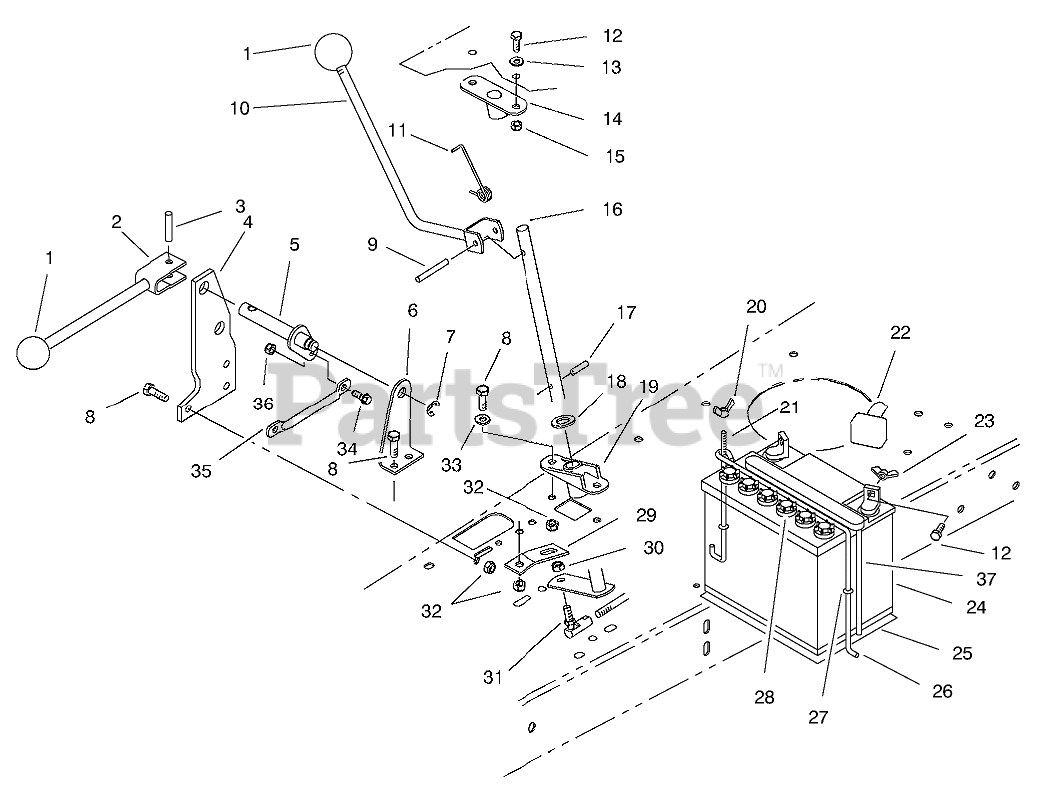

TRANSMISSION LINKAGE ASSEMBLY Parts Diagram

  • Title
1

$12.99

$

Usually ships in 3-6 days

0

2

Toro 80-2400

Lever W.A.-Engage
(Superseded to 80-2400-03)

$

$

Not available

3

Toro 32121-25

PIN-ROLL

$4.49

$

Usually ships in 3-6 days

0

4

Toro 80-2350

Pivot-Outer
(Superseded to 80-2350-03)

$

$

Not available

5

Toro 80-2370

PIVOT SHAFT WA

$41.99

$

Usually ships in 3-6 days

0

6

Toro 80-2340

Bracket-Pivot, Inner
(Superseded to 80-2340-03)

$19.99

$

Usually ships in 3-6 days

0

7

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

8

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

10

Toro 92-0884

Lever W.A.-Shaft
(Superseded to 92-0884-03)

$93.99

$

Usually ships in 3-6 days

0

11

Toro 92-0894

SPRING-TORSION

$14.99

$

Usually ships in 3-6 days

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 92-0888

SUPPORT-SHIFT SHAFT

$6.99

$

Usually ships in 3-6 days

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 92-0891

SHAFT-SHIFT

$

$

Not available

17

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

18

Toro 257-11

WASHER-THRUST

$7.99

$

Usually ships in 3-6 days

0

19

Toro 92-0887

SUPPORT-LOWER SHIFTER

$11.99

$

Usually ships in 3-6 days

0

20

Toro 32103-12

NUT-WING

$1.49

$

In Stock, only 3 left!

0

21

Toro 56-7720

POST-BATTERY
(Superseded to 100-6435)

$18.99

$

Usually ships in 3-6 days

0

22

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

23

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

24

Toro 80-2600

Battery-12 Volt (Incl. Ref. #28 & 37)
(Superseded to 105-1692)

$

$

Not available

25

Toro 62-4300

PAD-SKID, ANTI

$18.99

$

Usually ships in 3-6 days

0

26

Toro 56-7710

HOLDDOWN-BATTERY

$19.99

$

In Stock, only 2 left!

0

27

Toro 237-143

O-RING

$1.99

$

Usually ships in 3-6 days

0

28

Toro 218-560

CAP-BATTERY

$

$

Not available

29

Toro 92-0896

RETAINER-TRACTION SPRING

$6.99

$

Usually ships in 3-6 days

0

30

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

31

Toro 2411-32

JOINT-BALL

$31.99

$

Usually ships in 3-6 days

0

32

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

33

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

34

Toro 65-5670

SCREW-SHOULDER

$

$

Not available

35

Toro 80-2330

LINK-BELLCRANK

$

$

Not available

36

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

37

Toro 56-2540

TUBE-BATT DRAIN/80-2600

$4.49

$

In Stock, only 1 left!

0
