70080 (10-32) - Toro Recycler Rear-Engine Riding Mower (SN: 069000001 - 069999999) (1996) STEERING WHEEL, SWITCHES & DECALS Parts Diagram

Recycler Rear-Engine Riding Mower

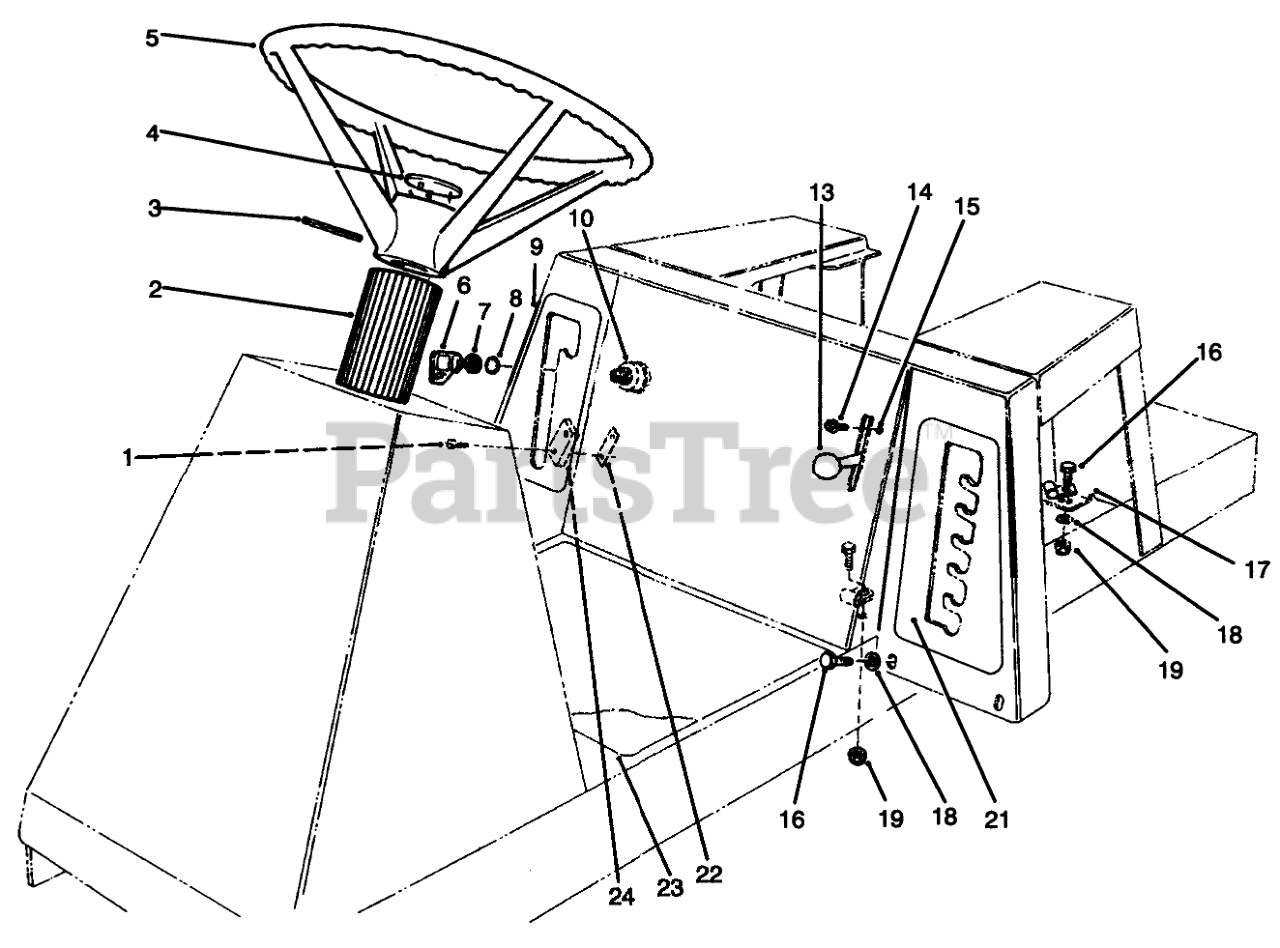

STEERING WHEEL, SWITCHES & DECALS Parts Diagram

  • Title

1

Toro 147665

SCREW-HH
(Superseded to 95-3003)

$3.49

$

Usually ships in 3-6 days

0

2

Toro 66-6740

COVER-STEERING SHAFT

$

$

Not available

3

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

4

Toro 92-7990

INSERT - STRG WHL F/W

$

$

Not available

5

Toro 49-3242

Assy.-Wheel, Steering (Incl. Ref. #4)

$

$

Not available

6

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

8

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

9

Toro 92-7244

DECAL - DECK ENGAGE

$

$

Not available

10

Toro 23-0660

Switch-Ignition (Incl. Ref. #6-8)

$22.99

$

In Stock, only 1 left!

0

13

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

14

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 92-0890

Control-Throttle (Incl. Ref. #13)

$

$

Not available

16

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 2412-68

CLAMP

$

$

Not available

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

21

Toro 92-7245

DECAL - HOC

$

$

Not available

22

Toro 3290-354

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

23

Toro 76-1090

INSTRUCTION DECAL

$

$

Not available

24

Toro 88-9931

SWITCH-MICRO

$38.99

$

In Stock, only 2 left!

0
