70080 (10-32) - Toro Recycler Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) SEAT ASSEMBLY Parts Diagram

Recycler Rear-Engine Riding Mower

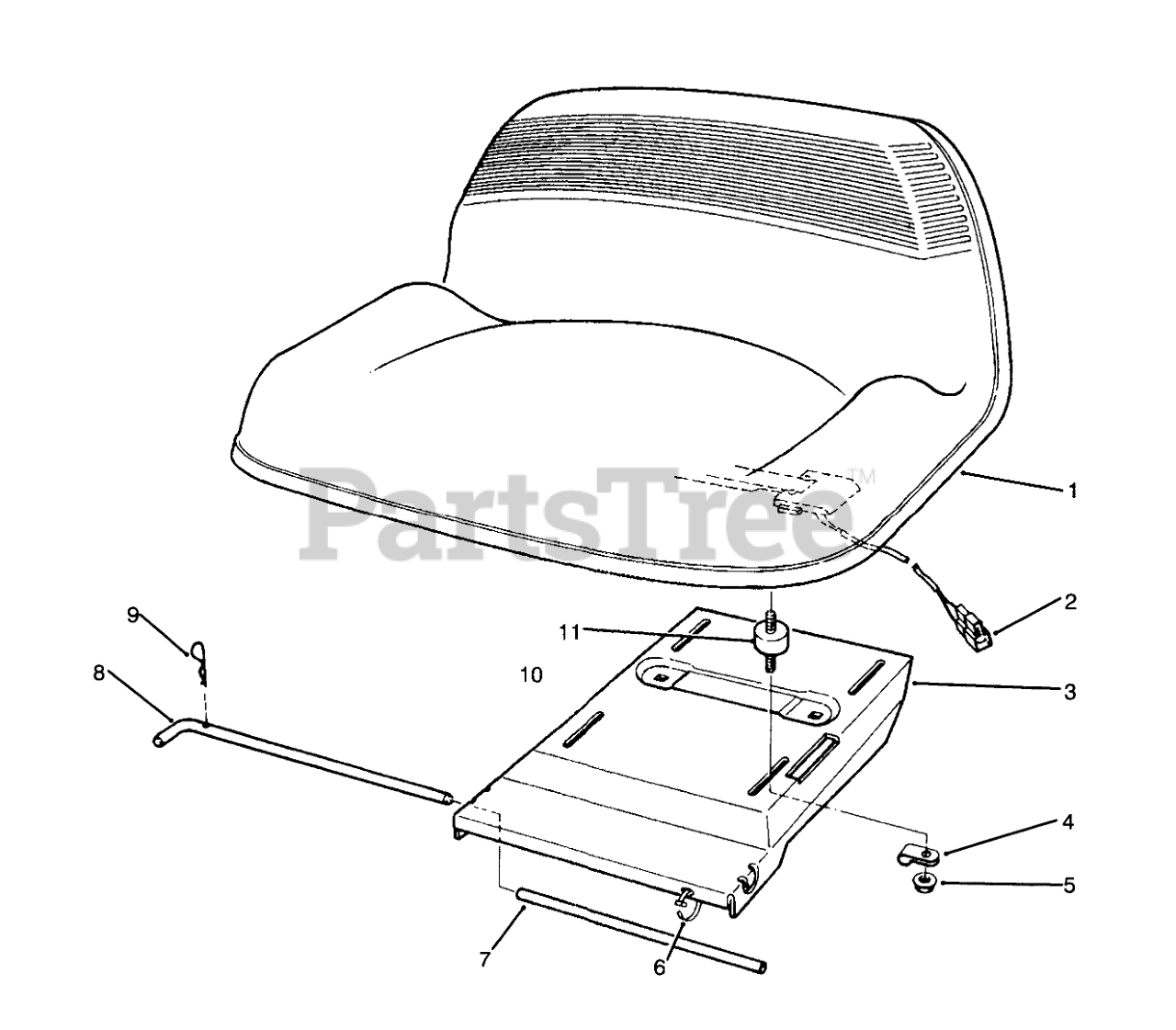

SEAT ASSEMBLY Parts Diagram

  • Title
1

Toro 88-3950

SEAT
(Superseded to 88-4330)

$

$

Not available

2

Toro 38-1420

SWITCH-SEAT

$

$

Not available

3

Toro 63-5540

Base-Seat
(Superseded to 63-5540-01)

$

$

Not available

4

Toro 2412-68

CLAMP

$

$

Not available

5

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

7

Toro 63-5670

TUBE-SEAT

$

$

Not available

8

Toro 80-2620

ROD-SEAT BASE

$

$

Not available

9

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

11

Toro 62-5480

ISOLATER-SEAT

$35.99

$

Usually ships in 3-6 days

0
