70080 (10-32) - Toro Recycler Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) ENGINE BRIGGS & STRATTON MODEL 28B707-0126-01 Parts Diagram

Recycler Rear-Engine Riding Mower

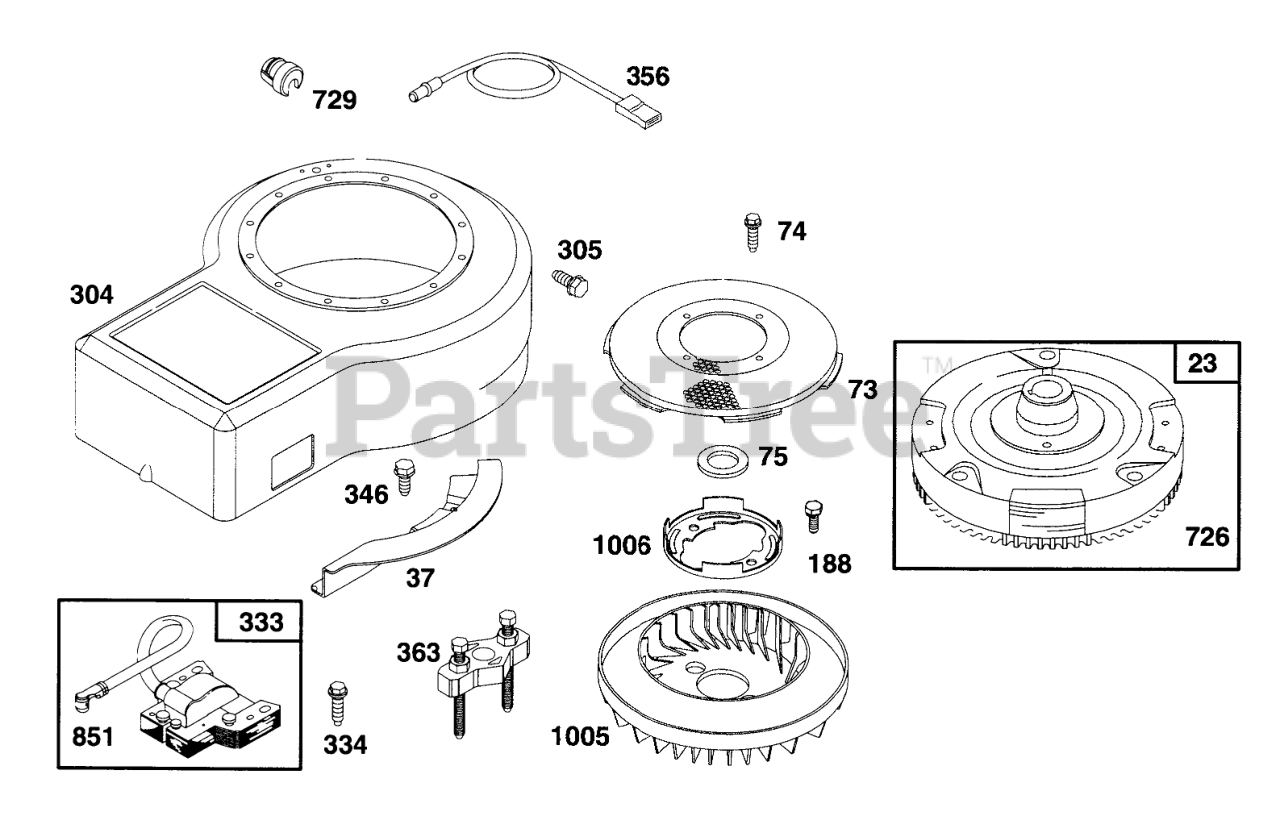

ENGINE BRIGGS & STRATTON MODEL 28B707-0126-01 Parts Diagram

  • Title

23

Briggs & Stratton 492326

Flywheel
(Superseded to 693557)

$

$

Not available

37

Briggs & Stratton 224502

Guard-Flywheel
(Superseded to 690456)

$7.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 224518

Screen-Rotating
(Superseded to 691191)

$32.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93758

Screw-Sem
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 224061

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

188

Briggs & Stratton 94627

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

304

Briggs & Stratton 496319

Housing-Blower
(Superseded to 690846)

$108.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw-Sem
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

356

Briggs & Stratton 494328

Wire-Stop
(Superseded to 690799)

$11.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

726

Briggs & Stratton 392134

Gear-Ring (Includes Mtg. Hardware)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 281159

Clip-Wire
(Superseded to 690596)

$

$

Not available

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

1005

Briggs & Stratton 280687

Retainer
(Superseded to 691905)

$45.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 224413

Retainer-Fan
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0
