70080 (10-32) - Toro Recycler Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) STARTER-BRIGGS & STRATTON Parts Diagram

Recycler Rear-Engine Riding Mower

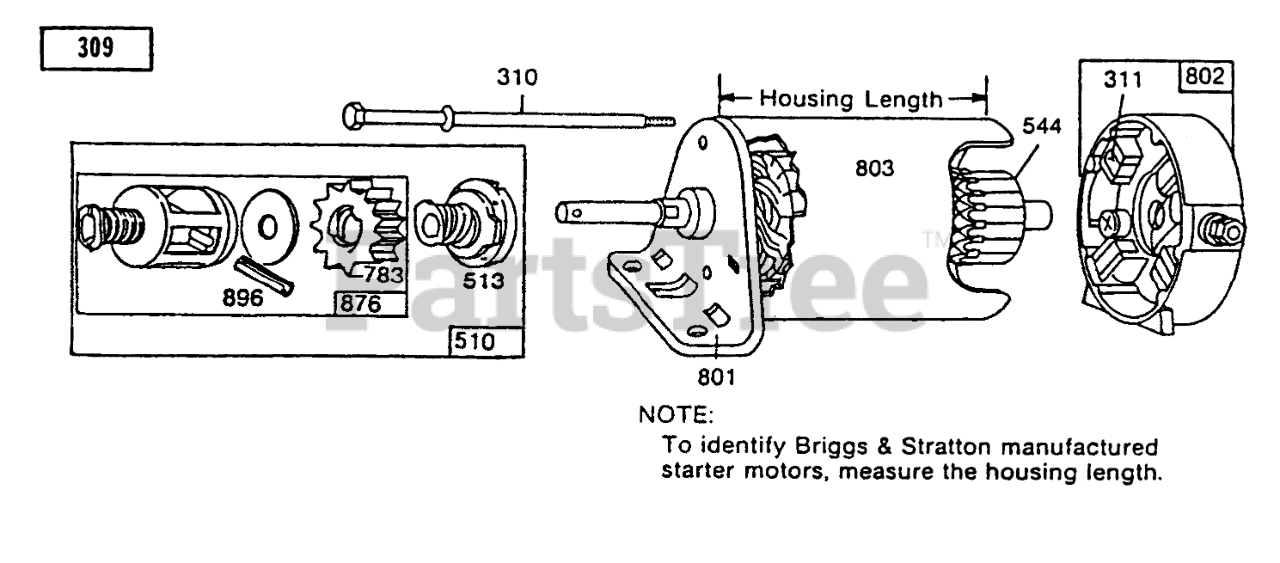

STARTER-BRIGGS & STRATTON Parts Diagram

  • Title

309

Briggs & Stratton 394805

Motor-Starter
(Superseded to 497595)

$110.99

$

In Stock, Qty 20+

0

309

Briggs & Stratton 494198

Motor & Drive Assembly
(Superseded to 795121)

$143.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 94003

Bolt
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

310

Briggs & Stratton 94004

Bolt
(Superseded to 691263)

$

$

Not available

311

Briggs & Stratton 395538

Brush Set

$24.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 490421

Drive Assembly (Incl. Ref. #513, 783, 876 & 896)
(Superseded to 696540)

$29.99

$

In Stock, Qty 19

0

513

Toro 398003C

lutch Assembly

$

$

Currently unavailable

544

Briggs & Stratton 390837

Armature-Starter

$159.99

$

In Stock, only 1 left!

0

544

Briggs & Stratton 391160

Armature Assembly

$

$

Not available

783

Briggs & Stratton 280104

Gear
(Superseded to 695708)

$6.99

$

In Stock, only 4 left!

0

801

Briggs & Stratton 394856

Drive End Cap Assembly (Incl. Brush Set)
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 395537

Cap-End

$54.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 398159

Housing-Starter

$80.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 494205

Housing Assembly

$73.99

$

In Stock, only 1 left!

0

876

Briggs & Stratton 490467

Gear Kit
(Superseded to 696540)

$29.99

$

In Stock, Qty 19

0

896

Briggs & Stratton 94288

Gear
(Superseded to 691641)

$4.99

$

Usually ships in 2-12 days

0
