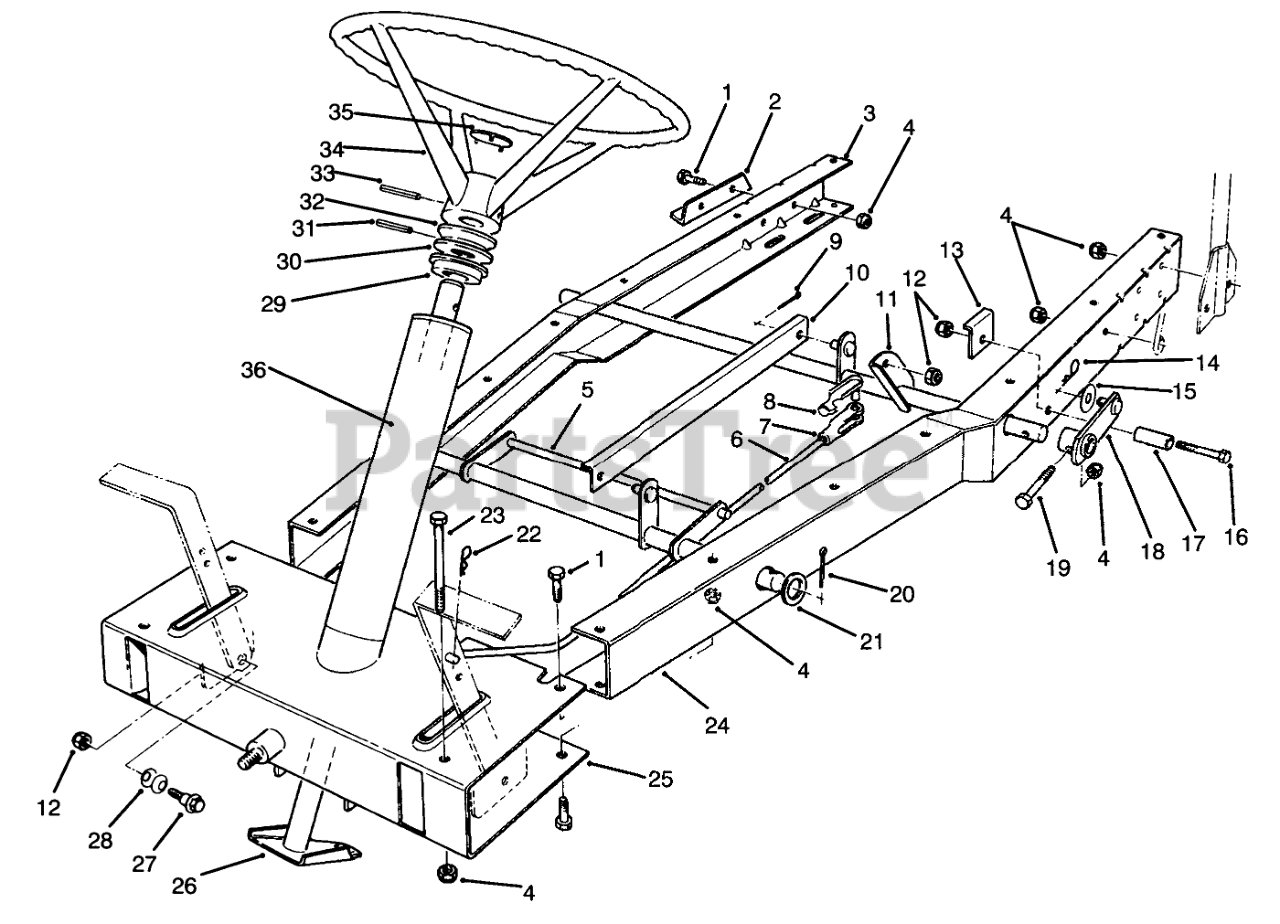

70060 (8-25) - Toro Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) FRAME ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 44-7140-01

MOUNT-AXLE BRG

$

$

Not available

3

Toro 67-0520-01

FRAME-CHANNEL RH RED

$

$

Not available

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 67-0010-03

FRT DECK LIFT WA BLACK

$

$

Not available

6

Toro 67-0430

ROD-CLUTCH

$

$

Not available

7

Toro 282-27

CLEVIS-ADJ

$35.99

$

Usually ships in 3-6 days

0

8

Assembly-Pin, Clevis

$

$

Not available

9

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

10

Toro 76-3890

LINK-HOC BRACKET

$23.99

$

Usually ships in 3-6 days

0

11

Toro 67-0050-01

REAR SUP TUBE WA RED

$

$

Not available

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 67-1510-03

DECK STOP BRACE (BLACK)

$9.49

$

Usually ships in 3-6 days

0

14

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

15

Toro 67-1460

WASHER

$

$

Not available

16

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 68-8380

SPACER-STOP,DECK

$

$

Not available

18

Toro 76-3790

HOC LEVER WA

$

$

Not available

19

Toro 46-2511

AXLE MTG BOLT

$

$

Not available

20

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

21

Toro 3256-29

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

22

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

23

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 8

0

24

Toro 67-0530-01

FRAME-CHANNEL LH

$

$

Not available

25

Toro 67-0450-01

FRONT FRAME WA RED

$

$

Not available

26

Toro 67-0830-03

STEERING SHAFT WA BLK
(Superseded to 67-0830-01)

$

$

Not available

27

Toro 67-0870

BOLT-SHOULDER

$

$

Not available

28

Toro 3290-413

WASHER-BELLEVILLE

$5.49

$

Usually ships in 3-6 days

0

29

Toro 67-0850

BUSHING-STEERING

$

$

Not available

30

Toro 67-0860

WASHER-STEERING

$19.99

$

Usually ships in 3-6 days

0

31

Toro 32121-32

PIN-ROLL

$1.49

$

In Stock, Qty 20+

0

32

Toro 67-0440

SPACER-STEERING

$

$

Not available

33

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

34

Toro 49-3242

STEERING WHEEL ASM

$

$

Not available

35

Toro 88-9840

INSERT - LAWN BOY

$

$

Not available

36

Toro 76-4080

DECAL - STEERING COLUMN

$

$

Not available

Toro 13-6049

Kit-Loose parts

Note: Not illustrated

$

$

Not available
