70060 (8-25) - Toro Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) MODEL NO. 191707-0121-01 Parts Diagram

Rear-Engine Riding Mower

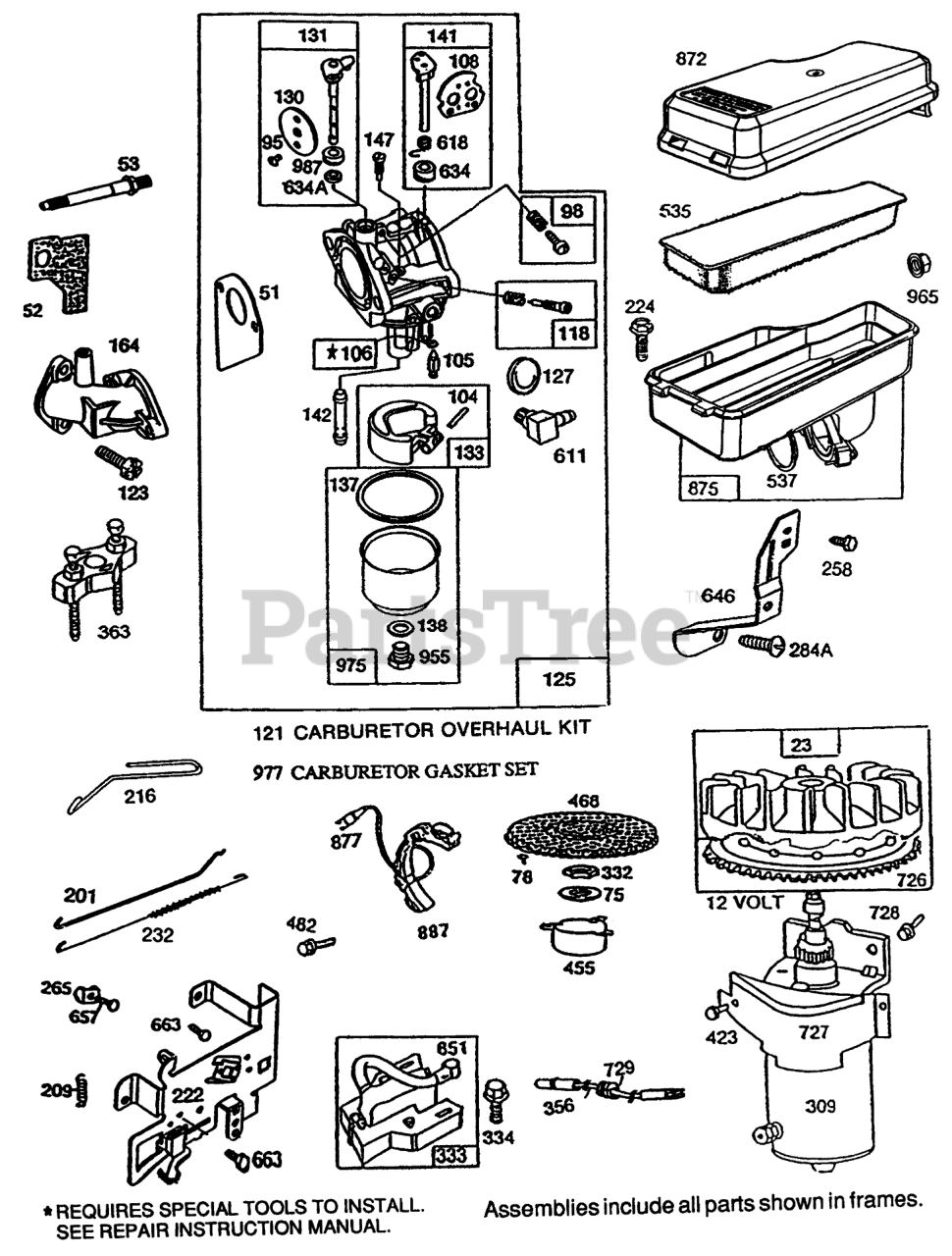

MODEL NO. 191707-0121-01 Parts Diagram

  • Title

23

Briggs & Stratton 391983

Flywheel and Ring Gear Assy.-Magneto (Incl. Aluminum Ring Gear)

$

$

Not available

51

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Carburetor Overhaul Set-Part No. 494880.

$4.99

$

In Stock, only 3 left!

0

52

Briggs & Stratton 270824

Gasket-Carb. Mtg.
(Superseded to 272554S)

Note: Included in Gasket Set-Part No. 299577.

$5.49

$

In Stock, only 4 left!

0

53

Briggs & Stratton 94637

Stud-Mounting, Carbureator
(Superseded to 690227)

$7.99

$

In Stock, Qty 6

0

75

Briggs & Stratton 224061

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

78

Briggs & Stratton 93805

Screw
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

Note: Included in Carburetor Overhaul Set-Part No. 494880.

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 494382

Screw-Idle Speed
(Superseded to 398185)

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231790

Valve Assy-Inlet Needle
(Superseded to 494788)

Note: Included in Carburetor Overhaul Set-Part No. 494880.

$9.99

$

In Stock, only 2 left!

0

106

Briggs & Stratton 281169

Inlet Valve Seat
(Superseded to 691901)

$8.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 224540

Valve-Choke
(Superseded to 692344)

$8.49

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 494383

Valve-Needle

$13.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 494880

Carburetor Overhaul Kit
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

123

Briggs & Stratton 94616

Screw-Elbow Mtg
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 494894

Carburetor Assembly
(Superseded to 495782)

$262.99

$

In Stock, only 1 left!

0

127

Plug-Welch(Kit Only)

Note: Included in Carburetor Overhaul Set-Part No. 494880.

$

$

Not available

130

Briggs & Stratton 224668

Valve-Throttle
(Superseded to 690468)

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 494885

Shaft-Throttle
(Superseded to 790901)

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Overhaul Set-Part No. 494880.

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Overhaul Set-Part No. 494880.

$5.49

$

In Stock, Qty 20+

0

141

Briggs & Stratton 494380

Shaft & Lever-Choke
(Superseded to 790902)

$33.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 494877

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Set-Part No. 494880.

$12.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 231794

Pilot-Jet
(Superseded to 497472)

$22.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 213819

Manifold-Intake
(Superseded to 691711)

$

$

Not available

201

Briggs & Stratton 262769

Link-Governor
(Superseded to 693663)

$7.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260871

Spring-Governor
(Superseded to 792602)

$3.49

$

In Stock, only 2 left!

0

216

Briggs & Stratton 262768

Link-Choke
(Superseded to 690573)

$9.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 493896

Plate-Gov. Plate
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

224

Briggs & Stratton 94513

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

232

Briggs & Stratton 262787

Spring-Link
(Superseded to 693663)

$7.99

$

Usually ships in 2-12 days

0

258

Briggs & Stratton 94620

Screw
(Superseded to 691693)

$3.99

$

In Stock, Qty 8

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, Qty 6

0

284A

Briggs & Stratton 94326

Screw-Pan Head
(Superseded to 691677)

$3.99

$

In Stock, only 4 left!

0

309

Motor-Starting (12 Volt) See Chart for Replacement Parts for Starting Motor on Illustrated Pages

$

$

Not available

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 398811

Armature Group

$63.99

$

In Stock, Qty 17

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 494328

Wire-Stop
(Superseded to 690799)

$11.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19165

Flywheel Puller

$25.99

$

Usually ships in 2-12 days

0

423

Briggs & Stratton 94073

Screw-Sem
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

455

Briggs & Stratton 222561

Cup-Flywheel
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 222562

Screen-Flush Rotating
(Superseded to 691748)

$232.99

$

In Stock, only 1 left!

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 272405

Element-Air Cleaner
(Superseded to 272922)

$11.99

$

In Stock, only 1 left!

0

537

Briggs & Stratton 281106

O-Ring
(Superseded to 691917)

$4.49

$

In Stock, Qty 20+

0

611

Briggs & Stratton 494451

Fuel Inlet Tube
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

618

Briggs & Stratton 262803

Spring-Choke

$8.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 281168

Seal-Choke Shaft
(Superseded to 690597)

Note: Included in Carburetor Overhaul Set-Part No. 494880.

$6.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 281167

Seal-Throttle Shaft
(Superseded to 692279)

Note: Included in Carburetor Overhaul Set-Part No. 494880.

$3.99

$

In Stock, only 3 left!

0

646

Briggs & Stratton 224614

Brace
(Superseded to 690465)

$13.99

$

Usually ships in 2-12 days

0

657

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 94419

Screw
(Superseded to 691693)

$3.99

$

In Stock, Qty 8

0

726

Briggs & Stratton 392134

Gear-Ring (Aluminum) (Incl. Mtg. Parts)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 395405

Cover-Starter (Incl. Mtg. Screws)

$

$

Not available

728

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

729

Briggs & Stratton 281159

Clip-Wire
(Superseded to 690596)

$

$

Not available

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

872

Briggs & Stratton 281108

Cover-Air Cleaner

$

$

Not available

875

Briggs & Stratton 494745

Body-Air Cleaner

$45.99

$

Usually ships in 2-12 days

0

877

Briggs & Stratton 393814

Diode Assy.

$18.99

$

In Stock, only 2 left!

0

887

Briggs & Stratton 391529

Alternator
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 94642

Plug
(Superseded to 691657)

$7.99

$

In Stock, only 1 left!

0

965

Briggs & Stratton 94108

Locknut
(Superseded to 690958)

$3.49

$

In Stock, only 3 left!

0

975

Briggs & Stratton 494378

Bowl-Float
(Superseded to 495933)

$

$

Not available

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

Note: Included in Carburetor Overhaul Set-Part No. 494880.

$5.49

$

Usually ships in 2-12 days

0
