70060 (8-25) - Toro Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) ENGINE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

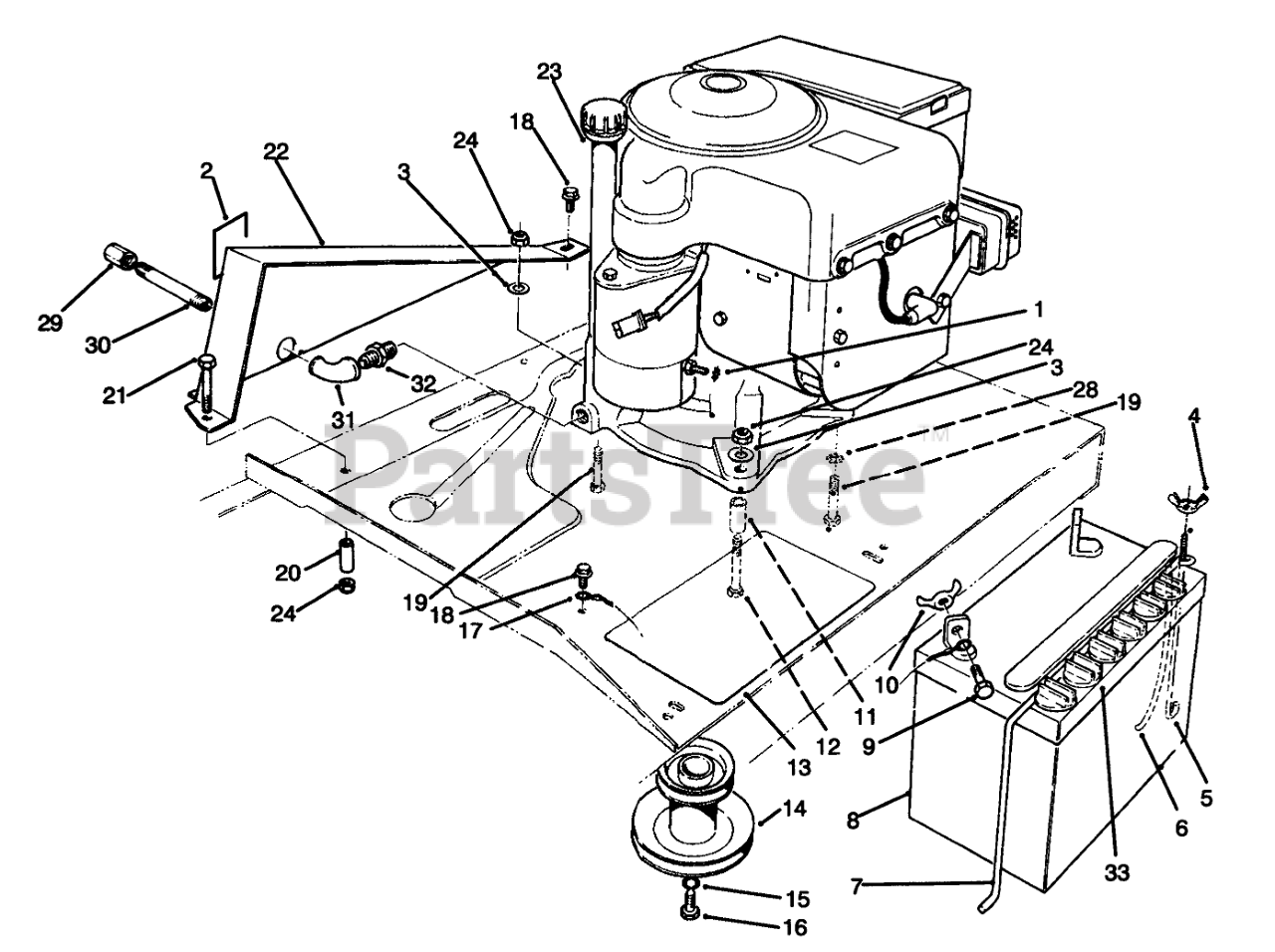

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

2

Toro 76-3930

Decal-Noise
(Superseded to 105-2699)

$33.99

$

Usually ships in 3-6 days

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

5

Toro 56-7720

POST-BATTERY
(Superseded to 100-6435)

$19.99

$

Usually ships in 3-6 days

0

6

Toro 56-2540

TUBE-BATT DRAIN/80-2600

$4.49

$

In Stock, only 1 left!

0

7

Toro 56-7710

HOLDDOWN-BATTERY

$22.99

$

In Stock, only 2 left!

0

8

Toro 80-2600

Battery
(Superseded to 105-1692)

$

$

Not available

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

11

Toro 80-4560

SPACER-PIVOT

$

$

Not available

12

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

13

Toro 62-4300

PAD-SKID, ANTI

$19.99

$

Usually ships in 3-6 days

0

14

Toro 83-4840

Pulley-Engine
(Superseded to 98-0712)

$148.99

$

Usually ships in 3-6 days

0

15

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 62-3760

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

17

Toro 56-7870

WIRE ASM(BATT/GRD.

$

$

Not available

18

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

19

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 67-0920

GUIDE-BELT

$15.99

$

Usually ships in 3-6 days

0

21

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 67-0962-01

GUIDE-CHAIN

$

$

Not available

23

Engine-8 H.P. B & S

$

$

Not available

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

29

Toro 288-2

CAP-PIPE

$19.99

$

In Stock, only 1 left!

0

30

Toro 289-34

NIPPLE-PIPE

$40.99

$

Usually ships in 3-6 days

0

31

Toro 2811-17

ELBOW-STREET

$

$

Not available

32

Toro 2812-1

BUSHING-PIPE

$

$

Not available

33

Toro 84-8470

BATTERY CAP

$

$

Not available

Toro 88-4490

REDUCER-THROTTLE, RPM

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days
