70044 (8-25) - Toro Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) ENGINE BRIGGS & STRATTON MODEL 195707-0421-E1 Parts Diagram

Rear-Engine Riding Mower

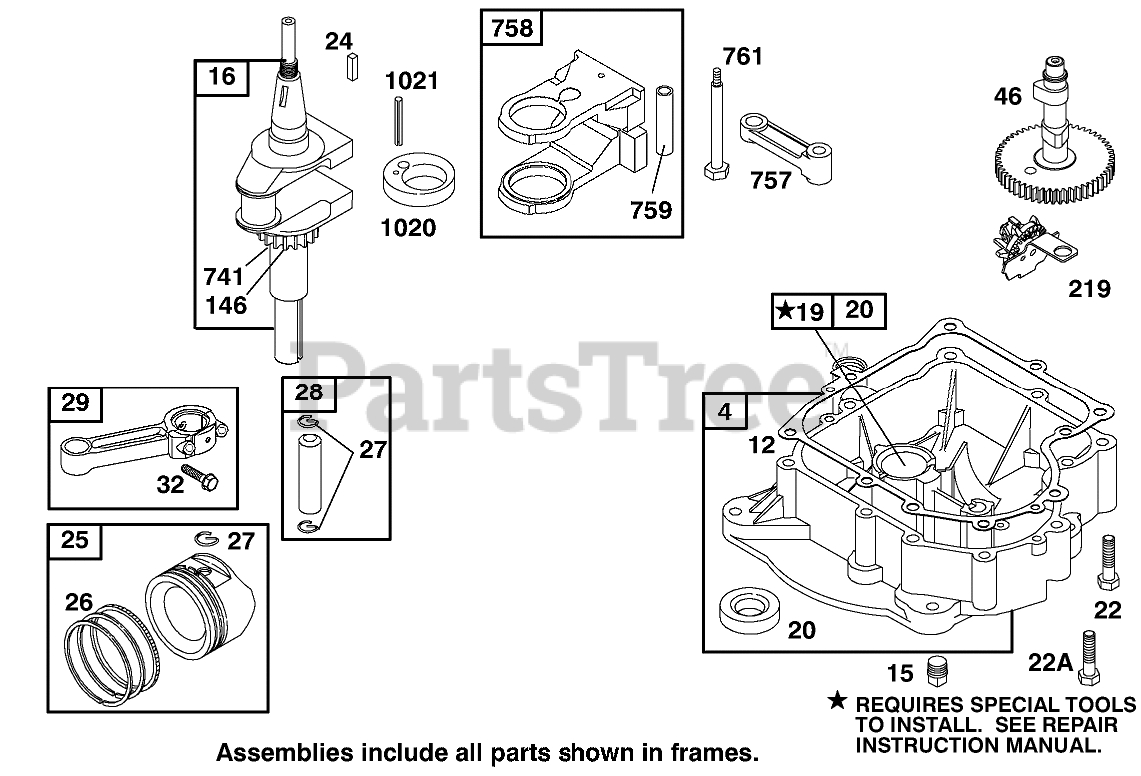

ENGINE BRIGGS & STRATTON MODEL 195707-0421-E1 Parts Diagram

  • Title

4

Briggs & Stratton 392548

Base-Oil

$110.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 271701

Gasket-Crankcase Cover 1/64" thick
(Superseded to 692221)

Note: Included in Gasket Set-Part No. 299577.

$8.99

$

In Stock, Qty 9

0

Briggs & Stratton 27876

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set-Part No. 299577.

$

$

Not available

Briggs & Stratton 27877

33154A,55A,60A W/FO

Note: Included in Gasket Set-Part No. 299577.

$10.99

$

In Stock, only 3 left!

0

15

Briggs & Stratton 94239

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 495629

Crankshaft

$142.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 295963

Bushing

$

$

Not available

20

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 299577.

$6.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

22A

Briggs & Stratton 94690

Screw-Hex. (Used in Pos. #1)
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499907

Piston Assy. (Std.)

$

$

Not available

Briggs & Stratton 499908

Piston Assy. (.010" O.S.)

$

$

Not available

Briggs & Stratton 499909

Piston Assy. (.020" O.S.)

$149.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 499910

Piston Assy. (.030" O.S.)

$

$

Not available

26

Briggs & Stratton 499421

Switch-Interlock

$31.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 299743

Ring Set (Std. Chrome)
(Superseded to 690014)

$

$

Not available

Briggs & Stratton 391670

Ring Set (.010" O.S.)

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391671

Ring Set (.020" O.S.)
(Superseded to 690019)

$59.99

$

In Stock, only 1 left!

0

Briggs & Stratton 391672

Ring Set (.030" O.S.)

$

$

Not available

27

Briggs & Stratton 690975

Lock-Pin, Piston

$3.99

$

In Stock, Qty 11

0

28

Briggs & Stratton 499911

Pin-Piston (Std.)
(Superseded to 499302)

$15.99

$

Usually ships in 2-12 days

0

Toro 499920

Pin-Piston (.005" O.S.)

$

$

Currently unavailable

29

Briggs & Stratton 390402

Rod-Connecting

$84.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 390773

Rod-Connecting (.020" U.S.)

$103.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94670

Screw-Conn. Rod
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

46

Briggs & Stratton 214786

Gear-Cam

$

$

Not available

146

Briggs & Stratton 94388

Key-Timing
(Superseded to 690979)

$3.49

$

In Stock, Qty 8

0

219

Briggs & Stratton 491397

Gear-Governor
(Superseded to 691980)

$

$

Not available

741

Briggs & Stratton 263025

Gear-Timing
(Superseded to 691288)

$21.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 213998

Link-Counteweight
(Superseded to 691714)

$

$

Not available

758

Briggs & Stratton 390172

Counterweight
(Superseded to 690619)

$49.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 230787

Pin-Counterweight
(Superseded to 691239)

$8.99

$

In Stock, only 1 left!

0

761

Briggs & Stratton 94592

Screw-Shoulder
(Superseded to 690346)

$7.49

$

Usually ships in 2-12 days

0

1020

Briggs & Stratton 261190

Eccentric
(Superseded to 691268)

$11.99

$

Usually ships in 2-12 days

0

1021

Briggs & Stratton 94853

Pin-Groove
(Superseded to 691679)

$4.49

$

Usually ships in 2-12 days

0
