70044 (8-25) - Toro Rear-Engine Riding Mower (SN: 210000001 - 210999999) (2001) ENGINE BRIGGS & STRATTON MODEL 195707-0421-E1 Parts Diagram

Rear-Engine Riding Mower

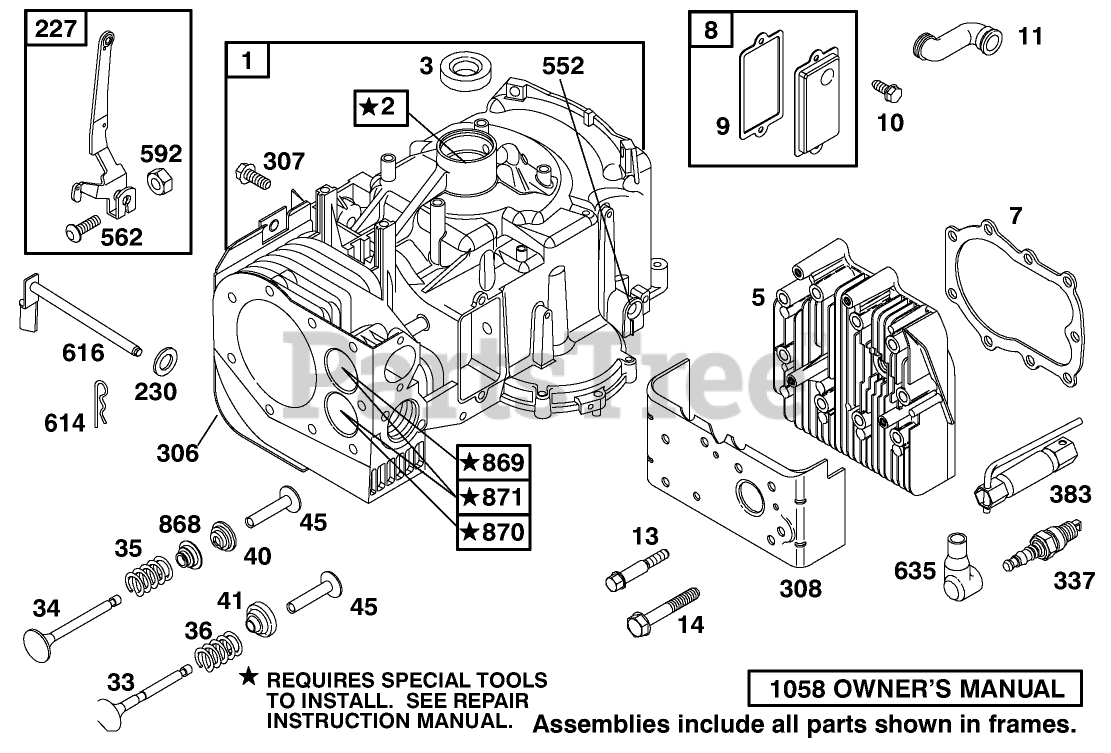

ENGINE BRIGGS & STRATTON MODEL 195707-0421-E1 Parts Diagram

  • Title

1

Briggs & Stratton 495623

Cylinder Assembly

$215.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 495657

Bushing
(Superseded to 698340)

$22.99

$

In Stock, Qty 5

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 299577.

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 214015

Head-Cylinder
(Superseded to 691715)

$95.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272163

Gasket-Cylinder Hd.
(Superseded to 272163S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498536.

$7.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 272163

Gasket-Cylinder Hd.
(Superseded to 272163S)

Note: Included in Gasket Set-Part No. 299577.

$7.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495735

Breather ASM

$63.99

$

In Stock, Qty 5

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498536.

$4.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 299577.

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280005

Grommet
(Superseded to 692293)

$10.99

$

In Stock, Qty 6

0

13

Briggs & Stratton 94565

Screw-Cylinder Head
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

14

Briggs & Stratton 94622

Screw-Cylinder Head
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

33

Briggs & Stratton 390420

Valve-Exhaust
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261055

VaIve-Intake
(Superseded to 261055S)

$32.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 65906

Spring-Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 691597

Spring-Valve (Exhaust)

$10.99

$

In Stock, Qty 5

0

40

Briggs & Stratton 221596

Retainer-Valve
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 691939

Retainer-Valve

$27.99

$

In Stock, Qty 5

0

45

Briggs & Stratton 260933

Tappet-Valve
(Superseded to 691793)

$6.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 493935

Lever-Governor
(Superseded to 691374)

$26.99

$

In Stock, only 2 left!

0

230

Briggs & Stratton 94927

Washer
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

306

Briggs & Stratton 496797

Shield-Cylinder

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94930

Screw-Hex
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 224896

Cover-Cylinder
(Superseded to 691201)

$7.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

552

Briggs & Stratton 491986

Bushing-Crank, Governor

$

$

Not available

562

Briggs & Stratton 94907

Bolt-Carriage
(Superseded to 691119)

$4.49

$

In Stock, Qty 17

0

592

Briggs & Stratton 231978

Nut-Hex
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 495157

Crank-Governor
(Superseded to 692012)

$13.99

$

In Stock, only 2 left!

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

868

Briggs & Stratton 497656

Seal-Valve
(Superseded to 692324)

$

$

Not available

869

Briggs & Stratton 211661

Seat-Ex. Valve
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 211661

Seat-Ex. Valve
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 261961

Manual-Owner's

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 231218

Guide-Valve

$14.99

$

In Stock, Qty 7

0

1058

Toro 273681

Manual-Owner's

$

$

Currently unavailable
