70041 (8-25) - Toro Rear-Engine Riding Mower (SN: 089000001 - 089999999) (1998) ENGINE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

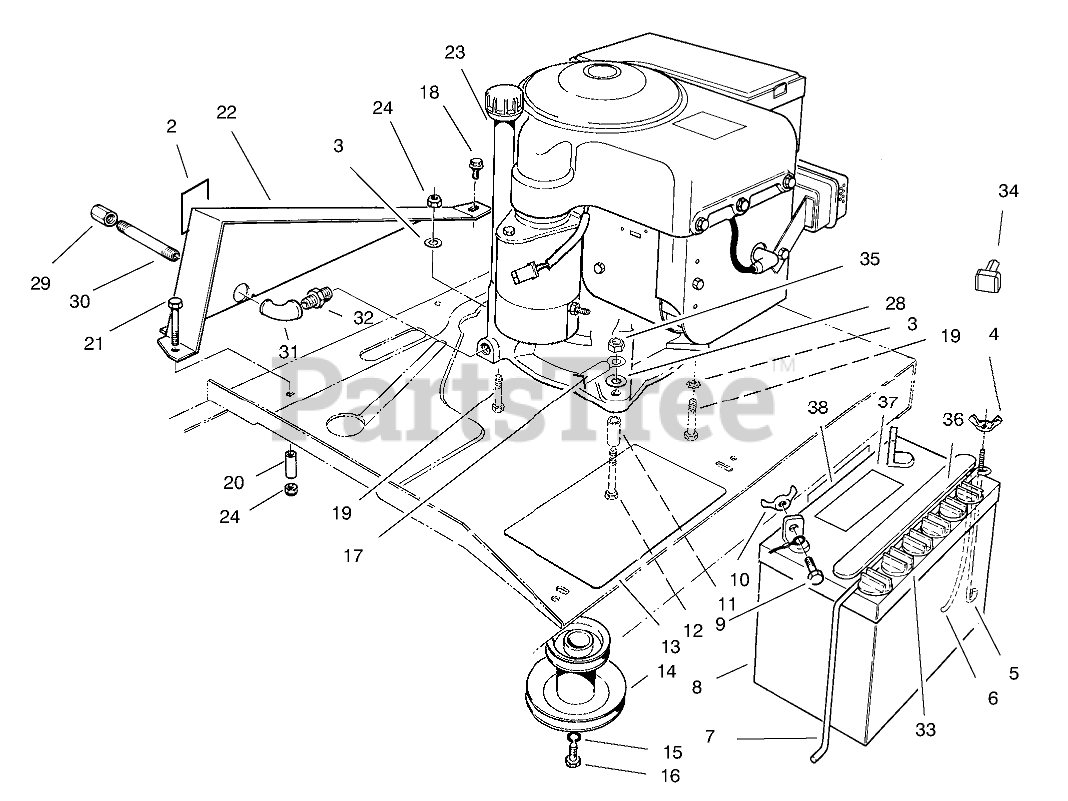

ENGINE ASSEMBLY Parts Diagram

  • Title
3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 32103-12

NUT-WING

$1.99

$

In Stock, only 3 left!

0

5

Toro 56-7720

POST-BATTERY
(Superseded to 100-6435)

$19.99

$

Usually ships in 3-6 days

0

6

Toro 56-2540

TUBE-BATT DRAIN/80-2600

$4.49

$

In Stock, only 1 left!

0

7

Toro 56-7710

HOLDDOWN-BATTERY

$22.99

$

In Stock, only 2 left!

0

8

Toro 80-2600

Battery
(Superseded to 105-1692)

$

$

Not available

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

11

Toro 80-4560

SPACER-PIVOT

$

$

Not available

12

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

13

Toro 62-4300

PAD-SKID, ANTI

$19.99

$

Usually ships in 3-6 days

0

14

Toro 98-0712

PULLEY - ENGINE

$148.99

$

Usually ships in 3-6 days

0

15

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

16

Toro 62-3760

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

17

Toro 98-0708

ASM - CABLE WIRE

$

$

Not available

18

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

19

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 67-0920

GUIDE-BELT

$15.99

$

Usually ships in 3-6 days

0

21

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

22

Toro 67-0962-01

GUIDE-CHAIN

$

$

Not available

23

Engine-8 H.P.B & S

$

$

Not available

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

29

Toro 288-2

CAP-PIPE

$19.99

$

In Stock, only 1 left!

0

30

Toro 289-34

NIPPLE-PIPE

$40.99

$

Usually ships in 3-6 days

0

31

Toro 2811-17

ELBOW-STREET

$

$

Not available

32

Toro 2812-1

BUSHING-PIPE

$

$

Not available

33

Toro 218-560

CAP-BATTERY

$

$

Not available

34

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

35

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

36

Toro 93-9354

DECAL - DANGER

$

$

Not available

37

Toro 93-7276

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0

38

Toro 93-6668

DECAL-BATTERY

$20.99

$

Usually ships in 3-6 days

0
