70040 (8-25) - Toro Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) REAR BODY ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

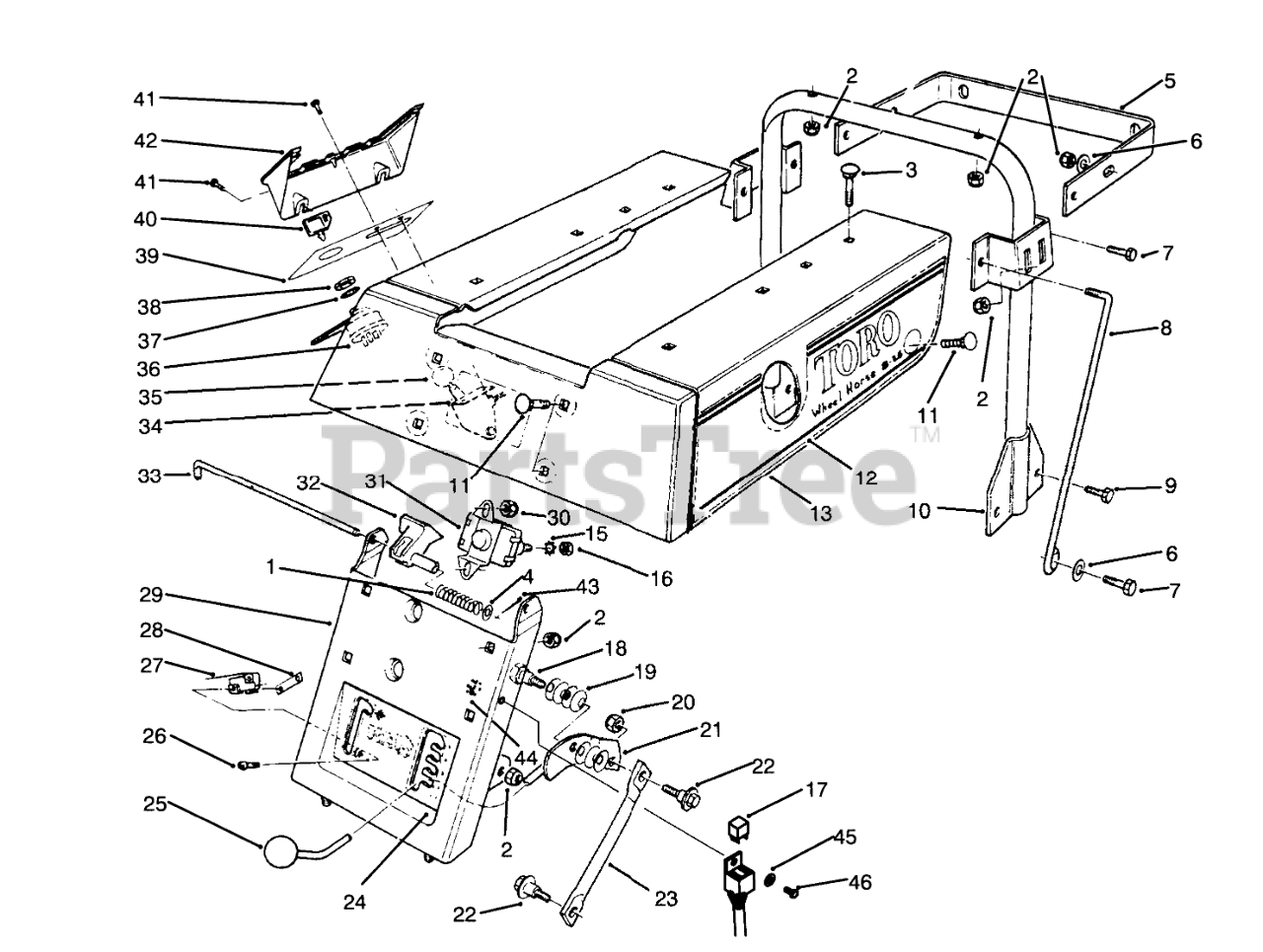

REAR BODY ASSEMBLY Parts Diagram

  • Title

1

Toro 71-8310

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

3

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 67-1500-03

STANDBAR

$87.99

$

Usually ships in 3-6 days

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 67-1480

BRACE-SEAT SUPPORT

$

$

Not available

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 67-0790-0

Support W.A.-Seat

$

$

Currently unavailable

11

Toro 3230-20

SCREW-CARR
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

12

Toro 92-7979

DECAL - LH SIDE PLATE

$14.99

$

Usually ships in 3-6 days

0

Toro 92-7980

DECAL - RH SIDE PANEL

Note: Not illustrated

$

$

Not available

13

Toro 67-0231-01

SEAT BODY WA (RED)

$

$

Not available

15

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

16

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

17

Toro 48-4700

Relay
(Superseded to 116397)

$33.99

$

In Stock, only 1 left!

0

18

Toro 28-0540

BOLT-SHOULDER

$12.99

$

In Stock, Qty 5

0

19

Toro 3290-413

WASHER-BELLEVILLE

$4.99

$

Usually ships in 3-6 days

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 67-0270

HOC HDLE WA

$

$

Not available

22

Toro 67-0870

BOLT-SHOULDER

$10.99

$

Usually ships in 3-6 days

0

23

Toro 67-0080

LINK-HOC

$

$

Not available

24

Toro 76-3920

DECAL - HOC

$

$

Not available

25

Toro 233-22

KNOB-CONTROL

$22.99

$

Usually ships in 3-6 days

0

26

Toro 3290-313

SCREW-SPH

$7.49

$

Usually ships in 3-6 days

0

27

Toro 40-8200

SWITCH-MICRO

$30.99

$

In Stock, only 3 left!

0

28

Toro 3290-354

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

29

Toro 67-1090

Support W.A.-Seat
(Superseded to 67-1090-01)

$

$

Not available

30

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

31

Toro 92-9845

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, Qty 6

0

32

Toro 80-4330

PROP-SEAT

$16.99

$

Usually ships in 3-6 days

0

33

Toro 80-4550

ROD-SEAT BASE

$20.99

$

Usually ships in 3-6 days

0

34

Toro 66-6640

CONTROL-THROTTLE

$57.99

$

Usually ships in 3-6 days

0

35

Toro 233-59

Knob
(Superseded to 233-25)

$5.49

$

In Stock, only 1 left!

0

36

Toro 23-0660

Switch-Ignition (Incl. Ref. #37 & 38)

$22.99

$

In Stock, only 1 left!

0

37

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

38

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

39

Toro 67-1270

DECAL - CONTROL PANEL

$

$

Not available

40

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

41

Toro 32144-42

SCREW-THD FORM, HWH

$0.99

$

Usually ships in 3-6 days

0

42

Toro 67-1030

COVER-CONTROL PLATE

$

$

Not available

43

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

44

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

45

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0
