70040 (8-25) - Toro Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) CUTTING UNIT ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

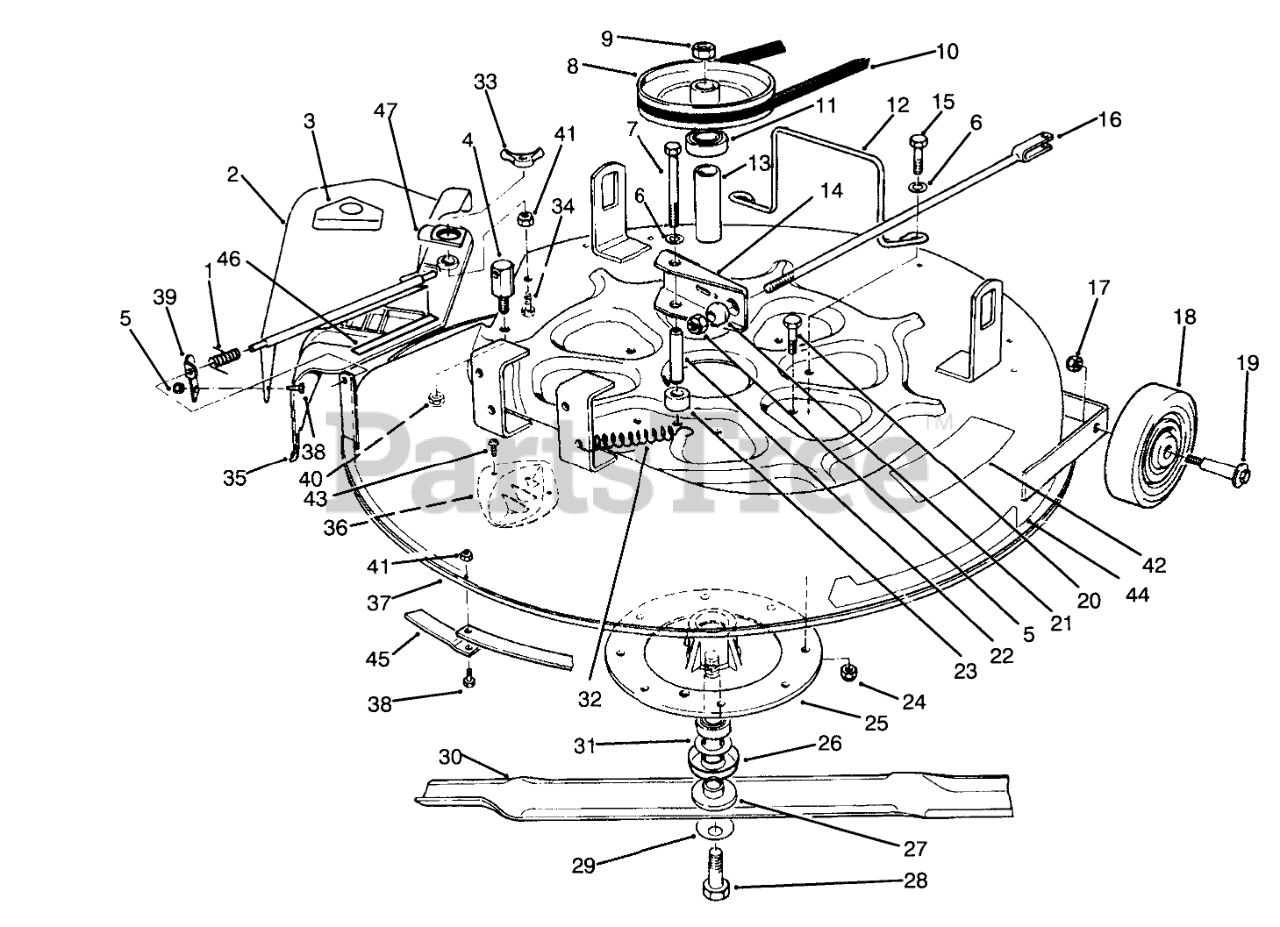

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 28-8010

SPRING

$20.99

$

Usually ships in 3-6 days

0

2

Toro 67-1151

Deflector (Incl. Ref. #3)

$

$

Not available

3

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 12

0

4

Toro 67-0140

POST-PIVOT

$26.99

$

Usually ships in 3-6 days

0

5

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-22

SCREW-HH
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

8

Toro 80-4460

PULLEY-DECK

$77.99

$

Usually ships in 3-6 days

0

9

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

10

Toro 67-1390

V-Belt
(Superseded to 98-0710)

$34.99

$

In Stock, only 2 left!

0

11

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

12

Toro 80-4520

GUIDE-DECK BELT

$86.99

$

Usually ships in 3-6 days

0

13

Toro 62-3660

SPACER-BEARING

$24.99

$

Usually ships in 3-6 days

0

14

Toro 67-1370

DECK BRAKE ASSEMBLY

$

$

Not available

15

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

16

Toro 67-0570

DECK BRAKE ROD WA

$46.99

$

Usually ships in 3-6 days

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 61-9760

WHEEL-DECK

$44.99

$

In Stock, only 2 left!

0

19

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 67-0710

BALL-SWIVEL, STOP

$3.99

$

In Stock, only 2 left!

0

22

Toro 67-0730

POST-BRAKE MTG

$

$

Not available

23

Toro 67-0740

SPACER-DECK BRAKE

$

$

Not available

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 67-0970

CASTING-SPINDLE

$240.99

$

Usually ships in 3-6 days

0

26

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

27

Toro 80-4340

SHAFT-SPINDLE

$73.99

$

Usually ships in 3-6 days

0

28

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

29

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

30

Toro 80-4530

Blade
(Superseded to 80-4530-03)

$50.99

$

Usually ships in 3-6 days

0

31

Toro 80-4380

SPACER

$6.49

$

In Stock, Qty 12

0

32

Toro 67-1440

SPRING-EXTENSION

$17.99

$

Usually ships in 3-6 days

0

33

Toro 32109-14

Nut-Wing
(Superseded to 32103-14)

$13.99

$

In Stock, only 1 left!

0

34

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

35

Toro 80-4450

COVER- 25" (W/KICKER)

$96.99

$

In Stock, only 1 left!

0

36

Toro 80-4510

KICKER

$19.99

$

Usually ships in 3-6 days

0

37

Toro 16-2199

Deck (Incl. Ref. #42)
(Superseded to 95-7484)

$

$

Not available

38

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 67-1600-01

BRACKET-DEFLECTOR

$

$

Not available

40

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

41

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

42

Toro 76-4070

DECAL - DANGER

$19.99

$

Usually ships in 3-6 days

0

43

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

44

Toro 92-9522

DECAL - RECYCLER 25"

$

$

Not available

45

Toro 80-4540-03

25" RECYCLER RING (BLACK)

$16.99

$

Usually ships in 3-6 days

0

46

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$13.99

$

Usually ships in 3-6 days

0

47

Toro 83-6610

CLIP

$16.99

$

Usually ships in 3-6 days

0
