70040 (8-25) - Toro Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) REAR AXLE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

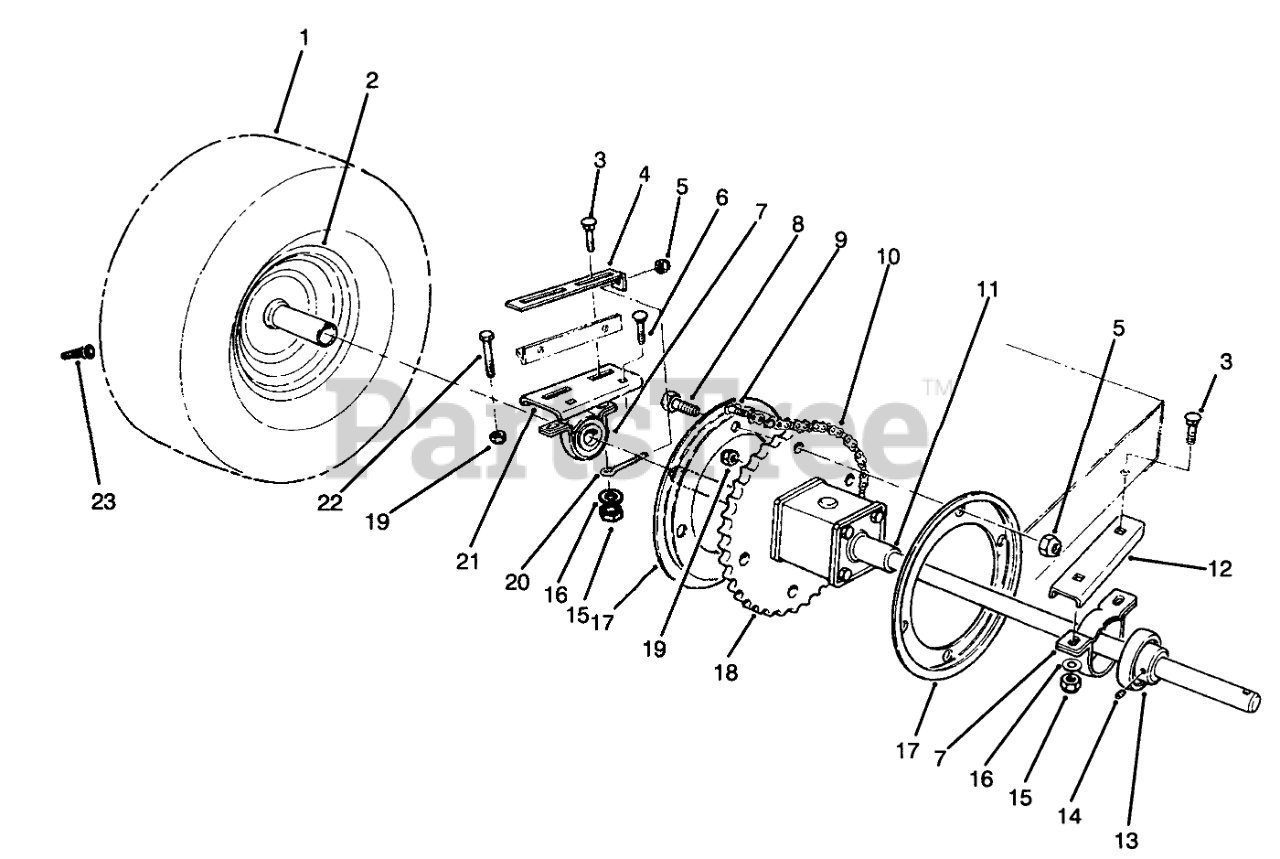

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 231-115

TIRE,PNEU.13X5.00X6

$96.99

$

Usually ships in 3-6 days

0

2

Toro 44-9760

WHEEL-REAR

$444.99

$

Usually ships in 3-6 days

0

3

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

4

Toro 61-9990

PLATE-ADJUSTING

$

$

Not available

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

6

Toro 47-1480

RTNR-PILLOW BLK

$64.99

$

Usually ships in 3-6 days

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 2710-11

LINK-CHAIN

$6.49

$

In Stock, only 1 left!

0

10

Toro 67-0910

Chain (Incl. Ref. #9)

$

$

Not available

11

Toro 56-9960

DIFFERENTIAL

$

$

Not available

12

Toro 66-6630-03

LH AXLE SUPPORT (BLACK)

$

$

Not available

13

Toro 47-1490

Bearing (Incl. Ref. #14)

$82.99

$

Usually ships in 3-6 days

0

14

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 76-1580-03

GUIDE-REAR CHAIN

$19.99

$

In Stock, only 2 left!

0

18

Toro 76-4010

SPROCKET

$58.99

$

Usually ships in 3-6 days

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 61-9980

SCREW-ADJUSTING

$9.49

$

In Stock, only 1 left!

0

21

Toro 66-6620-03

RH AXLE SUPPORT (BLACK)

$

$

Not available

22

Toro 46-2511

AXLE MTG BOLT

$

$

Not available

23

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0
