7000 (54A-413D100) - Cub Cadet Compact Tractor Front Axle MFD (Part 3) Parts Diagram

Compact Tractor

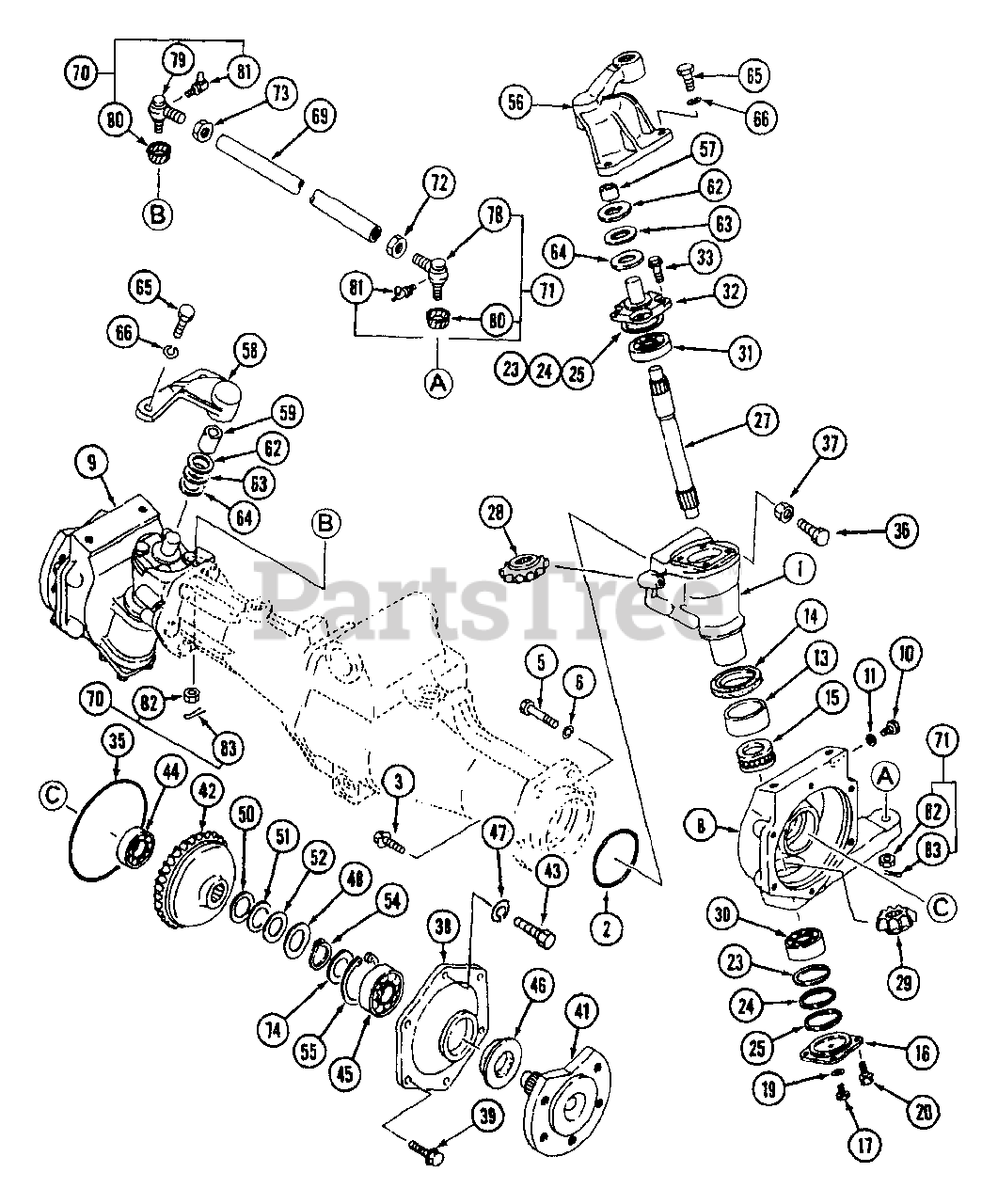

Front Axle MFD (Part 3) Parts Diagram

  • Title

1

Cub Cadet MA-19632136AG0

Case, Kingpin

$

$

Not available

2

Cub Cadet MA-08300500750

O-Ring

$

$

Not available

3

Cub Cadet MA-F1550110030

Bolt

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet MA-69542-64700

Bolt

$8.99

$

In Stock, only 2 left!

0

6

Cub Cadet MA-A3600101002

Washer

$

$

Not available

8

Cub Cadet MA-19632137AG0

Case Final L.H.

$

$

Not available

9

Cub Cadet MA-19632138AG0

Case Final R.H.

$

$

Not available

10

Cub Cadet MA-27403214200

Plug

$

$

Not available

11

Cub Cadet MA-08331000800

Seal, Washer

$

$

Not available

13

Cub Cadet MA-07961045250

Bushing

$

$

Not available

14

Cub Cadet MA-08401045629

Seal, Oil

$

$

Not available

15

Cub Cadet MA-07600051105

Bearing

$53.99

$

Usually ships in 3-6 days

0

16

Cub Cadet MA-10070638AG1

Cover

$137.99

$

Usually ships in 3-6 days

0

17

Cub Cadet MA-27403214200

Plug

$

$

Not available

19

Cub Cadet MA-08331000800

Seal, Washer

$

$

Not available

20

Cub Cadet MA-F1540108020

Bolt

$

$

Not available

Cub Cadet MA-19632139000

Liner Set

Note: Includes 23, 24, 25

$

$

Not available

23

Cub Cadet MA-07300005201

Liner t=0.15

$

$

Not available

24

Cub Cadet MA-07300005202

Liner t=0.2

$2.99

$

Usually ships in 3-6 days

0

25

Cub Cadet MA-07300005203

Liner t=0.3

$

$

Not available

27

Cub Cadet MA-19632141000

Shaft

$191.99

$

In Stock, only 2 left!

0

28

Cub Cadet MA-10252139000

Pinion 17T

$

$

Not available

29

Cub Cadet MA-10322142000

Pinion 12T

$423.99

$

Usually ships in 3-6 days

0

30

Cub Cadet MA-07500063040

Bearing

$

$

Not available

31

Cub Cadet MA-07500563044

Bearing

$

$

Not available

32

Cub Cadet MA-10322139AG0

Holder

$

$

Not available

33

Cub Cadet MA-F1540108020

Bolt

$

$

Not available

35

Cub Cadet MA-08300501350

O-Ring

$

$

Not available

36

Cub Cadet MA-A0520110040

Bolt

$

$

Not available

37

Cub Cadet MA-A3030110002

Nut

$

$

Not available

38

Cub Cadet MA-10322143AG0

Cover

$

$

Not available

39

Cub Cadet MA-F1550110025

Bolt

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet MA-19632144AG0

Shaft Wheel

$694.99

$

Usually ships in 3-6 days

0

42

Cub Cadet MA-19632146000

Gear 33T

$

$

Not available

43

Cub Cadet MA-69542-64700

Bolt

$8.99

$

In Stock, only 2 left!

0

44

Cub Cadet MA-07500063040

Bearing

$

$

Not available

45

Cub Cadet MA-07500062060

Bearing

$

$

Not available

46

Cub Cadet MA-08412355212

Seal, Oil

$30.99

$

Usually ships in 3-6 days

0

47

Cub Cadet MA-A3600101002

Washer

$

$

Not available

48

Cub Cadet MA-10190643000

Liner

$

$

Not available

Cub Cadet MA-10190625000

Shim Set, Front Axle

Note: Includes 50, 51, 52

$

$

Not available

50

Cub Cadet MA-07310003001

Liner t=0.15

$

$

Not available

51

Cub Cadet MA-07310003002

Liner t=0.2

$

$

Not available

52

Cub Cadet MA-07310003004

Liner t=0.4

$

$

Not available

54

Cub Cadet MA-07400003000

Ring

$

$

Not available

55

Cub Cadet MA-07410006201

Ring

$

$

Not available

56

Cub Cadet MA-19632147AG0

Knuckle Arm L.H.

$548.99

$

Usually ships in 3-6 days

0

57

Cub Cadet MA-07961020250

Bushing

$

$

Not available

58

Cub Cadet MA-19632148AG0

Knuckle Arm R.H.

$

$

Not available

59

Cub Cadet MA-07961020250

Bushing

$

$

Not available

Cub Cadet MA-10190624001

Shim Set,Knuckle Arm

Note: Includes 62, 63, 64

$49.99

$

Usually ships in 3-6 days

0

62

Cub Cadet MA-14381304000

Liner, Thrust C t=1.4

$

$

Not available

63

Cub Cadet MA-14381305000

Liner,Thrust D t=1.2

$

$

Not available

64

Cub Cadet MA-14381305100

Liner, Thrust E t=0.8

$

$

Not available

65

Cub Cadet MA-10322149000

Bolt

$

$

Not available

66

Cub Cadet MA-A3600101202

Washer

$

$

Not available

Cub Cadet MA-19632151AG0

Tie Rod Ass'y.

Note: Includes 69-73

$

$

Not available

69

Cub Cadet MA-19632152AG0

Rod

$232.99

$

Usually ships in 3-6 days

0

70

Cub Cadet MA-10302158AG0

End Ass'y - Tie Rod R.H. Side (L.H. Thread)

Note: Includes Ref. Nos. 80 thru 83

$126.99

$

Usually ships in 3-6 days

0

71

Cub Cadet MA-10302157AG0

End Ass'y - Tie Rod L.H. Side (R.H. Thread)

Note: Includes Ref. Nos. 80 thru 83

$

$

Not available

72

Cub Cadet MA-67354-00201

Nut (R.H. Thread) M17

$

$

Not available

73

Cub Cadet MA-67354-00301

Nut (L.H. Thread) M17

$

$

Not available

74

Cub Cadet MA-10211283001

Washer

$

$

Not available

78

Order Ref. No. 71

$

$

Not available

79

Order Ref. No. 70

$

$

Not available

80

Cub Cadet MA-67441-00916

Cover, Dust
(Superseded to MA-10302157200)

$

$

Not available

81

Cub Cadet MA-A6500600600

Nipple, Grease

$4.99

$

In Stock, only 1 left!

0

82

Cub Cadet MA-67441-00918

Nut

$

$

Not available

83

Cub Cadet MA-05200130025

Pin, Split

$

$

Not available
