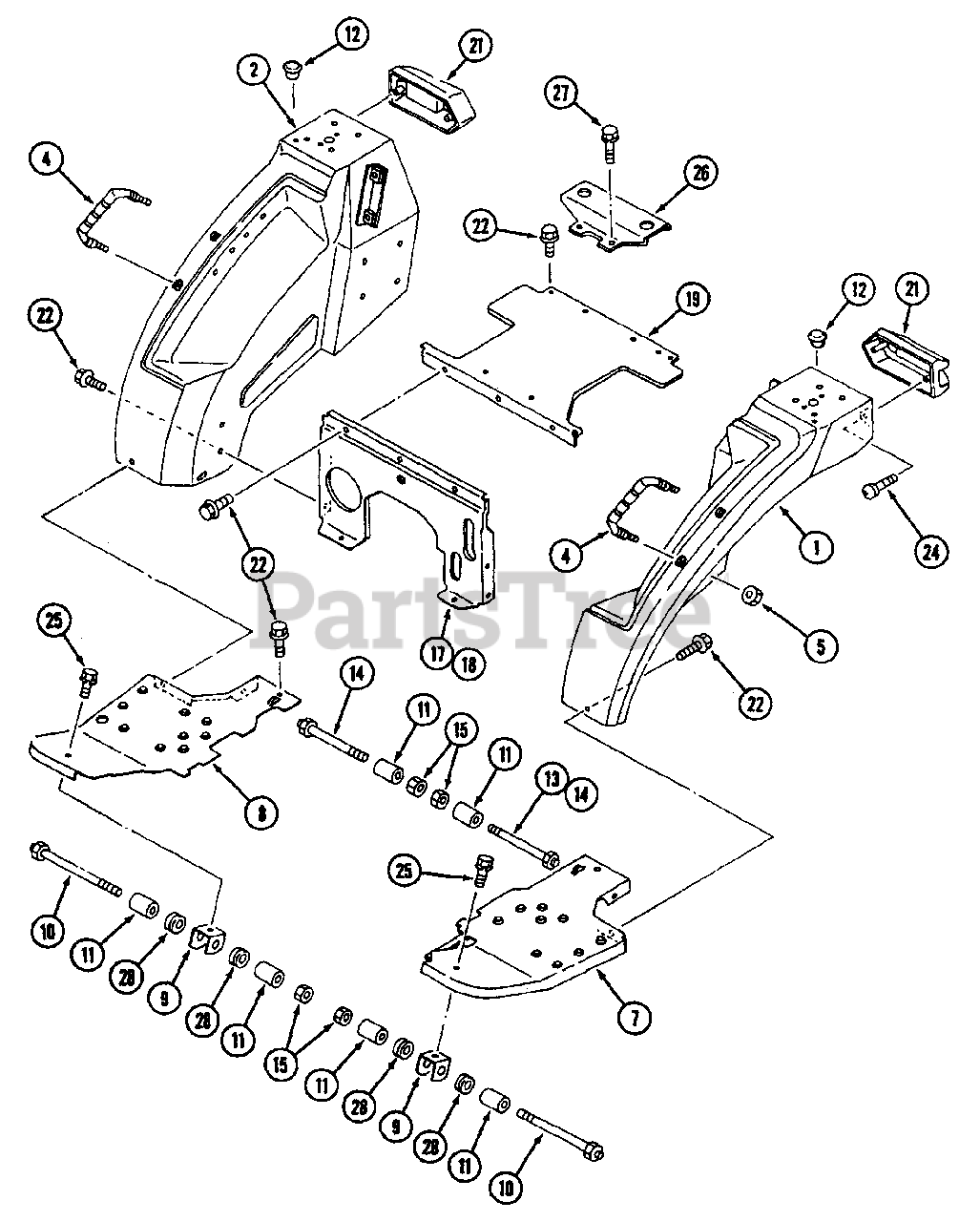

7000 (54A-413D100) - Cub Cadet Compact Tractor Fender & Step - Gear Drive Parts Diagram

Compact Tractor

Fender & Step - Gear Drive Parts Diagram

  • Title

1

Cub Cadet MA-19633502BD0

Fender, LH

$

$

Not available

2

Cub Cadet MA-19633504BD0

Fender, RH

$

$

Not available

4

Cub Cadet MA-19633511000

Rail, Hand

$36.99

$

Usually ships in 3-6 days

0

5

Cub Cadet MA-F3010108001

Nut

$

$

Not available

7

Cub Cadet MA-19633521BD0

Step, LH

$

$

Not available

8

Cub Cadet MA-19633523BD0

Step, RH

$

$

Not available

9

Cub Cadet MA-19633525000

Bracket

$

$

Not available

10

Cub Cadet MA-19633529000

Bolt

$

$

Not available

11

Cub Cadet MA-19633531000

Rubber

$

$

Not available

12

Cub Cadet MA-19082961000

Plug

$

$

Not available

13

Cub Cadet MA-19633530000

Bolt

$

$

Not available

14

Cub Cadet MA-19633528000

Bolt

$

$

Not available

15

Cub Cadet MA-A3030116002

Nut

$

$

Not available

17

Cover, Front (not used on this product)

$

$

Not available

18

Cub Cadet MA-19633535BD0

Cover, Front

$

$

Not available

19

Cub Cadet MA-19633537BD0

Cover, Upper

$

$

Not available

21

Cub Cadet MA-19673541000

Cover

$

$

Not available

22

Cub Cadet MA-H1540108016

Bolt

$

$

Not available

24

Cub Cadet MA-04322104012

Screw

$

$

Not available

25

Cub Cadet MA-F1540108012

Bolt

$

$

Not available

26

Cub Cadet MA-19633543AG0

Bracket

$

$

Not available

27

Cub Cadet MA-F1550112030

Bolt (Used with MA-19632401AG0 hydraulic case)

$

$

Not available

27

Cub Cadet MA-F1540112030

Bolt (Used with MA-19632401AG1 hydraulic case)

$

$

Not available

28

Cub Cadet MA-43750822000

Grommet

$

$

Not available
