700 DRT (960930005-02) - Husqvarna Rear-Tine Tiller, CARB (2009-01) Mainframe, Left Side Parts Diagram

Rear-Tine Tiller, CARB

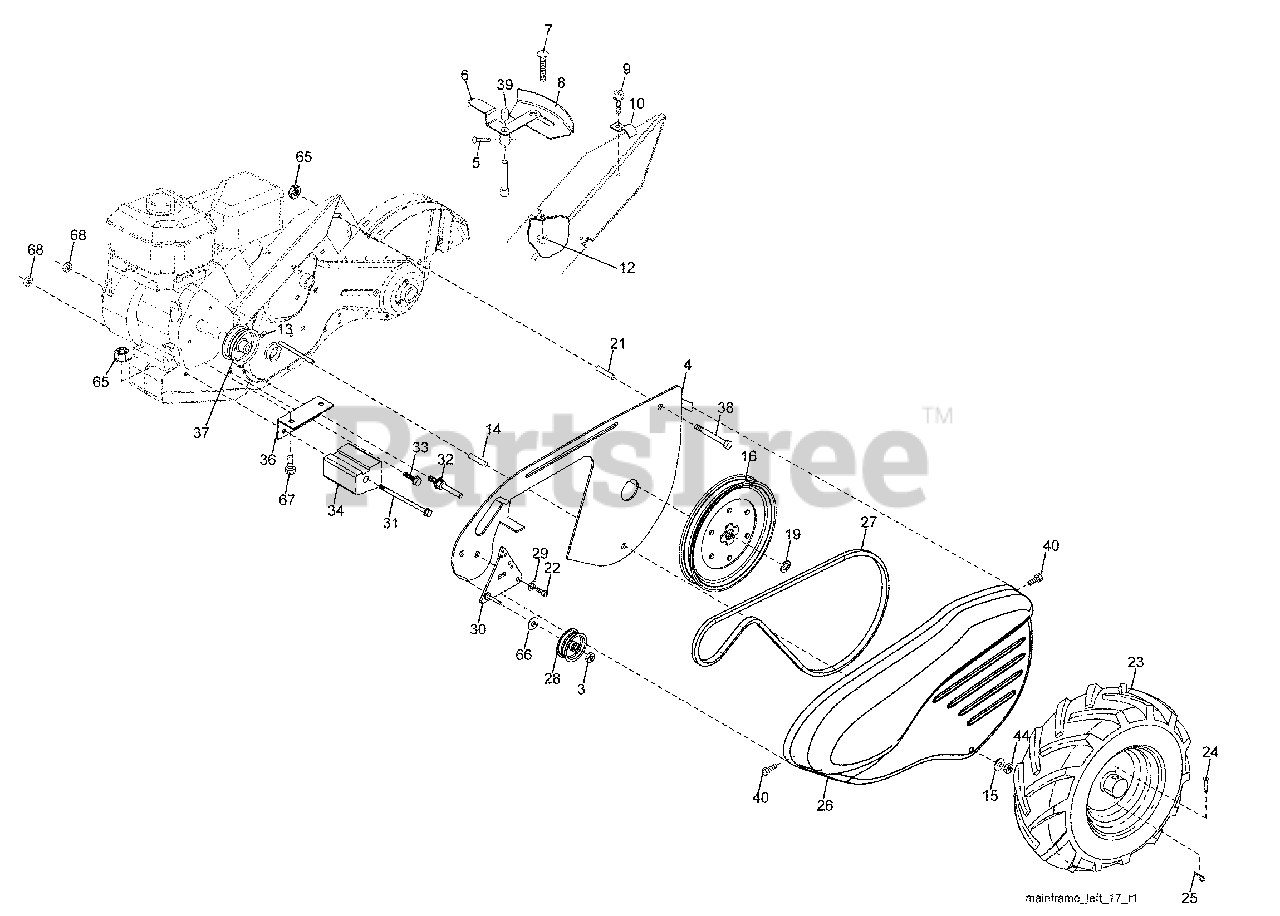

Mainframe, Left Side Parts Diagram

  • Title

3

Husqvarna 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 2 left!

0

4

Husqvarna 532170127

Shield, Inner Belt Guard RT
(Superseded to 532432508)

$43.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532164329

Pin Spirol Flared

$7.49

$

In Stock, Qty 8

0

6

Husqvarna 532162756

Lever, Shift

$17.99

$

Usually ships in 3-10 days

0

7

Husqvarna 872110404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532161530

Plate, Shift Indicator
(Superseded to 583879201)

$

$

Not available

9

Husqvarna 532086777

Screw, Hex, Washer Head, Slotted #10-24 x ½
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

10

Husqvarna 532009484

Clip

$6.49

$

In Stock, only 4 left!

0

12

Husqvarna 873510400

Nut, Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

13

Husqvarna 823230506

Screw, Set, Hex 5/16-18 x 3/8

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 532110652

Spacer, Split 0.327 x 0.42 x 2.09

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532145102

Sheave, Transmission

$68.99

$

In Stock, only 3 left!

0

19

Husqvarna 812000028

Retainer, Ring

$7.49

$

In Stock, Qty 8

0

21

Husqvarna 532156117

Spacer, Split

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 874770508

Bolt, Fin Hex 5/16-24 unf x 1/2

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532102190

Tire

$93.99

$

Usually ships in 3-10 days

0

Husqvarna 532150740

Rim

$109.99

$

Usually ships in 3-10 days

0

Husqvarna 532124718

Tire Valve
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

24

Husqvarna 532126875

Rivet, Drilled

$6.49

$

In Stock, Qty 20+

0

25

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

26

Husqvarna 532166792

Guard, Belt
(Superseded to 532440438)

$54.99

$

In Stock, only 1 left!

0

27

Husqvarna 532132801

Belt, V
(Superseded to 591372401)

$17.99

$

In Stock, only 3 left!

0

28

Husqvarna 532104679

Pulley, Idler

$18.99

$

In Stock, only 1 left!

0

29

Husqvarna 812000032

Ring, Klip

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532159229

Bracket, Idler
(Superseded to 584289401)

$

$

Not available

31

Husqvarna 532102384

Bolt, Hex 5/16-16 x 12

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532102141

Shaft, Idler Arm

$7.99

$

Usually ships in 3-10 days

0

33

Husqvarna 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532102383

Counterweight, LH

$133.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532102331

Bracket, Reinforcement, LH

$13.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532130812

Sheave, Engine
(Superseded to 592642101)

$13.99

$

In Stock, only 2 left!

0

38

Husqvarna 874760544

Bolt, Fin Hex 5/16-18 unc x 2-3/4
(Superseded to 874780544)

$

$

Not available

39

Husqvarna 532140062

Cap, Plunger Blk

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532170488

Screw Hex Wsh Slt #10-24 x 1/2

$6.49

$

In Stock, only 2 left!

0

44

Husqvarna 873800500

Nut Lock Hex w/Ins 5/16-18 unc PL

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 873970500

Nut Lock Hex Flange
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

66

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

67

Husqvarna 874760528

Bolt, Hex 5/16-18 x 1-3/4

$4.99

$

In Stock, Qty 12

0

68

Husqvarna 873510600

Nut, Keps, Hex 3/8-16 unc

$6.49

$

Usually ships in 3-10 days

0
