700 DRT (960930004-01) - Husqvarna Rear-Tine Tiller (2006-02) Mainframe, Right Side Parts Diagram

Rear-Tine Tiller

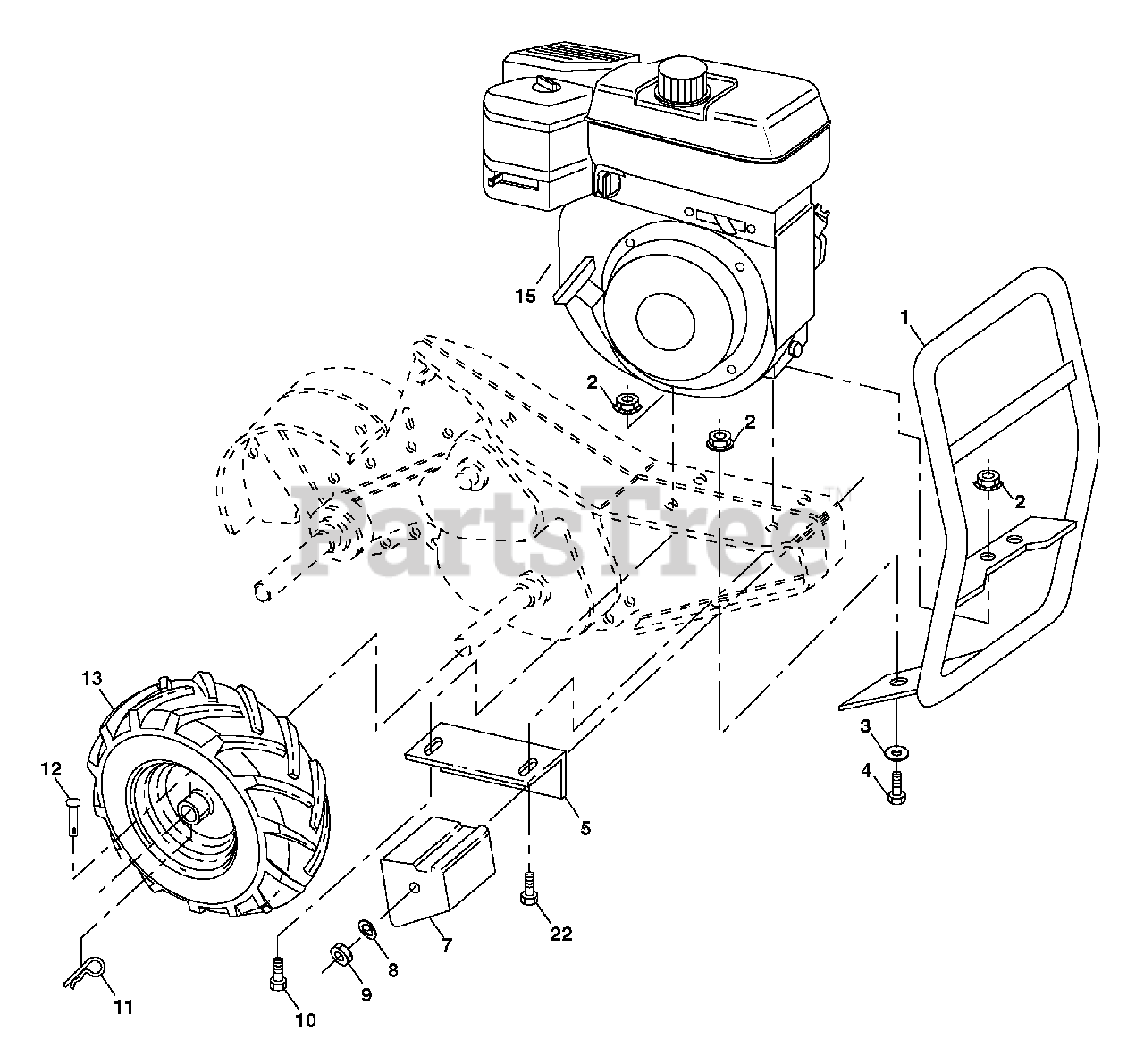

Mainframe, Right Side Parts Diagram

  • Title

1

Husqvarna 532185190

Bumper Asm.
(Superseded to 583879301)

$96.99

$

Usually ships in 3-10 days

0

2

Husqvarna 873970500

Locknut, Hex, Flange 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 874760512

Bolt 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532102332

Bracket, Reinforcement
(Superseded to 581864701)

$

$

Not available

7

Husqvarna 532102173

Counter Weight, R.H.

$42.99

$

Usually ships in 3-10 days

0

8

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 874760524

Bolt, Hex 5/16-18 x 1-1/2
(Superseded to 874780524)

$

$

Not available

11

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Husqvarna 532126875

Rivet, Drilled

$6.49

$

In Stock, Qty 20+

0

13

Husqvarna 532102190

Tire

$93.99

$

Usually ships in 3-10 days

0

Husqvarna 532150740

Rim

$109.99

$

Usually ships in 3-10 days

0

Husqvarna 532124718

Tire Valve
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

15

Engine, Briggs & Stratton Model No. 122002

Note: (Order parts from Engine Manufacturer)

$

$

Not available

22

Husqvarna 874760528

Bolt 5/16-18 x 1-3/4

$4.99

$

In Stock, Qty 12

0
