700 (990169) - Simplicity Wonderboy Garden Tractor TRANSMISSION GROUP Parts Diagram

Wonderboy Garden Tractor

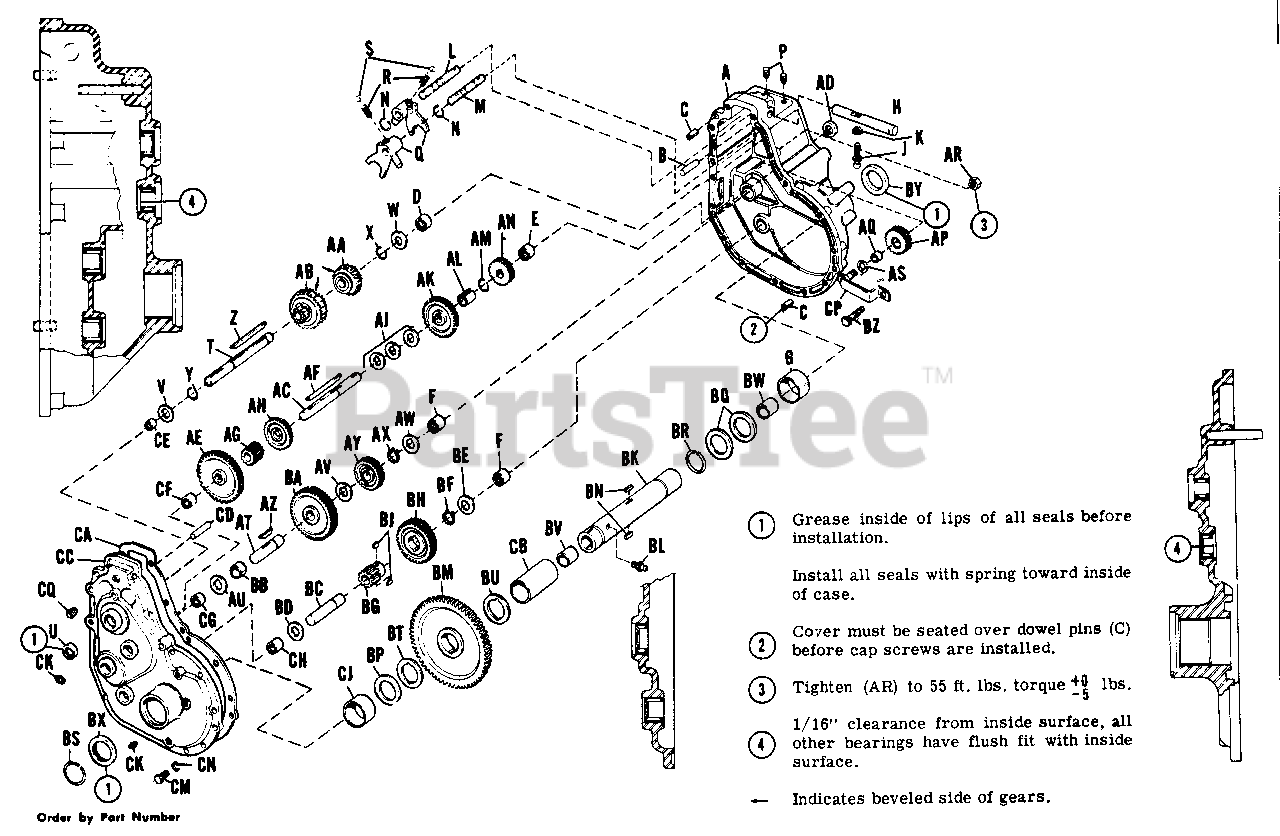

TRANSMISSION GROUP Parts Diagram

  • Title

A

Simplicity 154190

Case, Gear, Complete w/ bearings and dowel pins

$

$

Not available

B

Simplicity 2815494

Pin, Roll

$

$

Not available

C

Simplicity 2723007

Pin, Roll

$

$

Not available

D

Simplicity 2154257SM

Bearing, Needle

$27.99

$

In Stock, only 1 left!

0

E

Simplicity 2154258SM

Bearing, Needle

$26.99

$

In Stock, Qty 8

0

F

Simplicity 154259

Bearing, Needle

$

$

Not available

G

Simplicity 2154260SM

Bearing, Axle Tube

$117.99

$

Usually ships in 2-12 days

0

H

Simplicity 154066

Rod, Shift

$

$

Not available

J

Simplicity 2154261

Stem, Shift

$

$

Not available

K

Simplicity 717010

Nut, Hex., Full, 3/8"-24 N.F.

$

$

Not available

L

Simplicity 154067

Shaft, Shifter, Rev., Med. V

$

$

Not available

M

Simplicity 154068

Shaft, Shifter, High, Low

$

$

Not available

N

Simplicity 1729260SM

Ring, Retaining

$5.99

$

Usually ships in 2-12 days

0

P

Simplicity 715019

Screw, Set, Hollow Head, Cone Point, 5/16"-18 N.C. x 12" lg.
(Superseded to 715455)

$14.99

$

Usually ships in 2-12 days

0

Q

Simplicity 2154069SM

Fork, Shift

$227.99

$

Usually ships in 2-12 days

0

R

Simplicity 2154323SM

Spring

$30.99

$

Usually ships in 2-12 days

0

S

Simplicity 2154262

Ball, Shift Lock

$

$

Not available

T

Simplicity 154070

Shaft, Pulley

$

$

Not available

U

Simplicity 1612093SM

Seal, Oil

$10.99

$

In Stock, Qty 20+

0

V

Simplicity 154462

Washer

$

$

Not available

W

Simplicity 154462

Washer

$

$

Not available

X

Simplicity 2154264SM

Ring, Retaining

$5.99

$

Usually ships in 2-12 days

0

Y

Simplicity 2154264SM

Ring, Retaining

$5.99

$

Usually ships in 2-12 days

0

Z

Simplicity 2154265

Key

$

$

Not available

AA

Simplicity 2154072

Pinion Assembly, Rev., II

$

$

Not available

AB

Simplicity 2154075

Pinion Assembly, I and III

$

$

Not available

AC

Simplicity 154077

Shaft, 1st Intm.

$

$

Not available

AD

Simplicity 1612093SM

Seal, Oil

$10.99

$

In Stock, Qty 20+

0

AE

Simplicity 154078

Gear, Driven, I

$

$

Not available

AF

Simplicity 2154354SM

Key

$15.99

$

Usually ships in 2-12 days

0

AG

Simplicity 154079

Pinion, 1st Intm.

$

$

Not available

AH

Simplicity 2154080SM

Pinion, Driven, III

$96.99

$

Usually ships in 2-12 days

0

AJ

Simplicity 1729259SM

Spacer, Trans. Gear

$5.99

$

In Stock, Qty 7

0

AK

Simplicity 154081

Gear, Driven, II

$

$

Not available

AL

Simplicity 154082

Spacer

$

$

Not available

AM

Simplicity 2154264SM

Ring, Retaining

$5.99

$

Usually ships in 2-12 days

0

AN

Simplicity 2154083

Pinion, Reverse

$

$

Not available

AP

Simplicity 2154087SM

Gear, Reverse

$70.99

$

Usually ships in 2-12 days

0

AQ

Simplicity 154084

Spacer, Rev. Gear

$

$

Not available

AR

Simplicity 2717516

Nut, Lock, 1/2"-20 N.F.

$

$

Not available

AS

Simplicity 2154325

Washer

$

$

Not available

AT

Simplicity 154086

Shaft, 2nd. Intm.

$

$

Not available

AU

Simplicity 2154038SM

Washer

$5.49

$

Usually ships in 2-12 days

0

AV

Simplicity 2154038SM

Washer

$5.49

$

Usually ships in 2-12 days

0

AW

Simplicity 2154038SM

Washer

$5.49

$

Usually ships in 2-12 days

0

AX

Simplicity 154266

Ring, Retaining

$

$

Not available

AY

Simplicity 154088

Pinion, 2nd. Intm.

$

$

Not available

AZ

Simplicity 2154267SM

Key

$

$

Not available

BA

Simplicity 154089

Gear, 2nd. Intm.

$

$

Not available

BB

Simplicity 154090

Spacer

$

$

Not available

BC

Simplicity 154091

Shaft, 3rd. Intm.

$

$

Not available

BD

Simplicity 2154038SM

Washer

$5.49

$

Usually ships in 2-12 days

0

BE

Simplicity 2154038SM

Washer

$5.49

$

Usually ships in 2-12 days

0

BF

Simplicity 154266

Ring, Retaining

$

$

Not available

BG

Simplicity 2154092SM

Pinion, 3rd. Intm.

$

$

Not available

BH

Simplicity 154093

Gear, 3rd. Intm.

$

$

Not available

BJ

Simplicity 2725002

Key, Woodruff

$

$

Not available

BK

Simplicity 2154094

Tube Axle

$

$

Not available

BL

Simplicity 2727002

Fitting, Grease

$

$

Not available

BM

Simplicity 154095

Gear, Drive

$

$

Not available

BN

Simplicity 2154096SM

Key

$6.99

$

In Stock, only 1 left!

0

BP

Simplicity 2154097SM

Washer

$

$

Not available

BQ

Simplicity 2154097SM

Washer

$

$

Not available

BR

Simplicity 2154268SM

Ring, Snap

$7.49

$

In Stock, only 3 left!

0

BS

Simplicity 2154268SM

Ring, Snap

$7.49

$

In Stock, only 3 left!

0

BT

Simplicity 2154130SM

Washer, Axle Tube

$6.49

$

Usually ships in 2-12 days

0

BU

Simplicity 2154130SM

Washer, Axle Tube

$6.49

$

Usually ships in 2-12 days

0

BV

Simplicity 2153068SM

Bearing

$31.99

$

Usually ships in 2-12 days

0

BW

Simplicity 2153068SM

Bearing

$31.99

$

Usually ships in 2-12 days

0

BX

Simplicity 2154269SM

Seal

$

$

Not available

BY

Simplicity 2154269SM

Seal

$

$

Not available

BZ

Simplicity 2705016

Screw, Cap, Hex, 3/8"-16 N.C. x 1-1/4" lg.

$

$

Not available

CA

Simplicity 2154270

Gasket, Gear Case

$

$

Not available

CB

Simplicity 154098

Spacer, Axle Tube

$

$

Not available

CC

Simplicity 154191

Cover, Gear Case, Complete w/ bearings

$

$

Not available

CD

Simplicity 2815494

Pin, Roll

$

$

Not available

CE

Simplicity 2154258SM

Bearing, Needle

$26.99

$

In Stock, Qty 8

0

CF

Simplicity 2154257SM

Bearing, Needle

$27.99

$

In Stock, only 1 left!

0

CG

Simplicity 2154271SM

Bearing, Needle

$

$

Not available

CH

Simplicity 154259

Bearing, Needle

$

$

Not available

CJ

Simplicity 2154260SM

Bearing, Axle Tube

$117.99

$

Usually ships in 2-12 days

0

CK

Simplicity 2726003

Plug, Pipe, 3/8"

$

$

Not available

CM

Simplicity 2705007

Screw, Cap, Hex., 5/16"-18 N.C. x 1" lg.

$

$

Not available

CN

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

CP

Simplicity 154352

Pin Assembly, Rev. Gear

$

$

Not available

CQ

Simplicity 2726003

Plug, Pipe, 3/8"

$

$

Not available
