700 (990169) - Simplicity Wonderboy Garden Tractor FRONT WHEELS, AXLE, TIE ROD & STEERING Parts Diagram

Wonderboy Garden Tractor

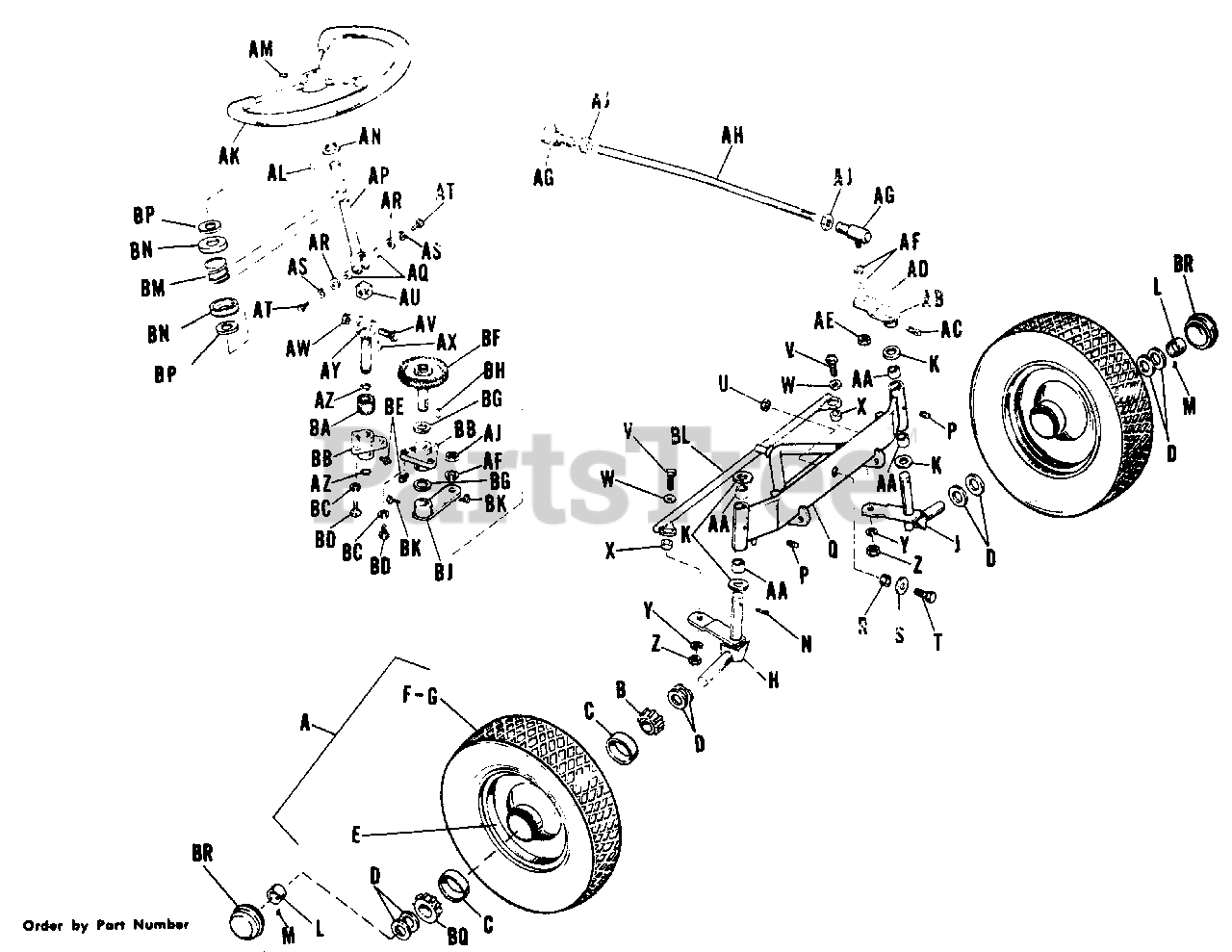

FRONT WHEELS, AXLE, TIE ROD & STEERING Parts Diagram

  • Title

A

Simplicity 154395

Wheel and Tire Assembly

$

$

Not available

B

Simplicity 2154397SM

Cone, Bearing, w/seal

$75.99

$

Usually ships in 2-12 days

0

C

Simplicity 2154393SM

Bearing Cup,

$22.99

$

In Stock, only 3 left!

0

D

Simplicity 2108181

Washer

$

$

Not available

E

Simplicity 154427

Wheel w/bearing cup

$

$

Not available

F

Simplicity 2153037

Tire, 4.80/4.00

$

$

Not available

G

Simplicity 2153038SM

Tube, 4.00-8

$35.99

$

Usually ships in 2-12 days

0

H

Simplicity 2154168

Spindle Assembly, R.H.

$

$

Not available

J

Simplicity 154163

Spindle Assembly, L.H.

$

$

Not available

K

Simplicity 1729259SM

Washer

$5.99

$

In Stock, Qty 7

0

L

Simplicity 1729254SM

Collar, Set
(Superseded to 703150)

$

$

Not available

M

Simplicity 2713502

Screw, Set, Cup Point, Socket Head, 5/16"-18 N.C. x 1/4" lg.

$

$

Not available

N

Simplicity 2722007

Pin, Cotter, 3/16" x 1-1/2" lg.

$

$

Not available

P

Simplicity 2727002

Fitting, Grease

$

$

Not available

Q

Simplicity 154255

Axle Assembly, Front

$

$

Not available

R

Simplicity 154182

Spacer

$

$

Not available

S

Simplicity 2719004

Washer, Plain, 1/2"

$

$

Not available

T

Simplicity 2705044

Screw, Cap, Hex., 1/2"-13 N.C. x 1-1/2" lg.

$

$

Not available

U

Simplicity 2717518

Nut, Hex., Full, Lock, 1/2"-13 N.C.

$

$

Not available

V

Simplicity 2705016

Screw, Cap, Hex., 3/8"-16 N.C. x 1-1/4" lg.

$

$

Not available

W

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

X

Simplicity 2154177SM

Spacer

$39.99

$

In Stock, only 1 left!

0

Y

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

Z

Simplicity 2717003

Nut, Hex., Full, 3/8"-16 N.C.

$

$

Not available

AA

Simplicity 2154289SM

Bearing

$12.99

$

Usually ships in 2-12 days

0

AB

Simplicity 154172

Arm Assembly, Steering, L.H.

$

$

Not available

AC

Simplicity 2713006

Screw, Set, Cup Point, Square Head, 5/16"-18 N.C.x 1/2" lg.

$

$

Not available

AD

Simplicity 2725504

Key, Hi-Pro

$

$

Not available

AE

Simplicity 717008

Nut, Hex., Full 1/2"-20 N.C.

$

$

Not available

AF

Simplicity 2720004

Washer, Lock, 1/2"

$

$

Not available

AG

Simplicity 2154301

Joint, Ball

$

$

Not available

AH

Simplicity 154174

Rod, Tie

$

$

Not available

AJ

Simplicity 2717014

Nut, Jam, 1/2"-20 N.F.

$

$

Not available

AK

Simplicity 154298

Wheel, Steering

$

$

Not available

AL

Simplicity 2725003

Key, Woodruff #9

$

$

Not available

AM

Simplicity 2713503

Screw, Set, Cup Point, Socket Head, 5/16"-18 N.C. x 5/16" lg.

$

$

Not available

AN

Simplicity 2108181

Washer

$

$

Not available

AP

Simplicity 154432

Shaft Assembly, Steering

$

$

Not available

AQ

Simplicity 2153081

Spacer

$

$

Not available

AR

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AS

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AT

Simplicity 2715030

Screw, Cap, Hex., 3/8"-16 N.C. x 3/4" lg.

$

$

Not available

AU

Simplicity 154153

Pin, Universal Joint

$

$

Not available

AV

Simplicity 2715026

Screw, Cap, Hex., Head, Special

$

$

Not available

AW

Simplicity 2717511

Nut, Lock, Full, Hex., 5/16"-18 N.C.

$

$

Not available

AX

Simplicity 2725003

Key, Woodruff #9

$

$

Not available

AY

Simplicity 154154

Shaft Assembly, Steer, Pin

$

$

Not available

AZ

Simplicity 2154264SM

Ring, Retaining

$5.99

$

Usually ships in 2-12 days

0

BA

Simplicity 154156

Pinion

$

$

Not available

BB

Simplicity 154157

Bearing, Steering Gear

$

$

Not available

BC

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

BD

Simplicity 2705012

Screw, Cap, Hex., 5/16"-18 N.C.

$

$

Not available

BE

Simplicity 2727002

Fitting, Grease, #1641

$

$

Not available

BF

Simplicity 154158

Gear Assembly, Steering

$

$

Not available

BG

Simplicity 1729259SM

Washer

$5.99

$

In Stock, Qty 7

0

BH

Simplicity 2725003

Key, Woodruff #9

$

$

Not available

BJ

Simplicity 154161

Arm Assembly, Steering

$

$

Not available

BK

Simplicity 2713006

Screw, Set, Cup Point, Square Head, 5/16"-18 N.C. x 1/2" lg.

$

$

Not available

BL

Simplicity 154175

Drag Link

$

$

Not available

BM

Simplicity 154398

Spring, Compression

$

$

Not available

BN

Simplicity 154399

Cup, Spring

$

$

Not available

BP

Simplicity 2108181

Washer

$

$

Not available

BQ

Simplicity 2154486SM

Bearing, Outside.

$36.99

$

In Stock, Qty 6

0

BR

Simplicity 2154487SM

Cap, Hub.
(Superseded to 2154487YP)

$9.99

$

In Stock, Qty 20+
