700 (990169) - Simplicity Wonderboy Garden Tractor CLUTCH AND BRAKE GROUP Parts Diagram

Wonderboy Garden Tractor

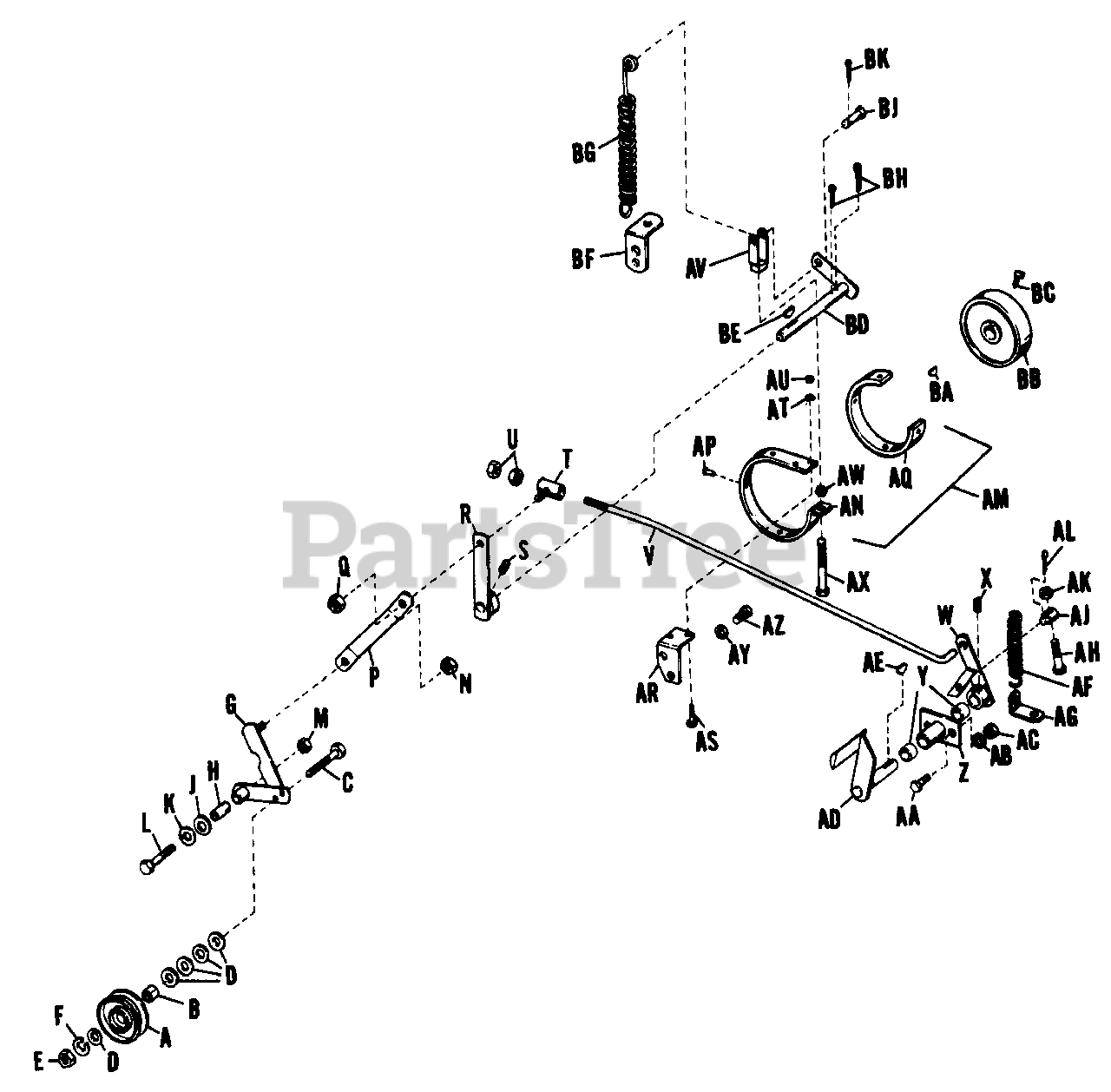

CLUTCH AND BRAKE GROUP Parts Diagram

  • Title

A

Simplicity 2108149

Pulley, Idler

$

$

Not available

B

Simplicity 2154177SM

Bushing

$39.99

$

In Stock, only 1 left!

0

C

Simplicity 2705010

Screw, Cap, Hex., 3/8"-16 N.C. x 1-3/4" lg.

$

$

Not available

D

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

E

Simplicity 2717003

Nut, Hex., Full, 3/8"-16 N.C.

$

$

Not available

F

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

G

Simplicity 154104

Lever Assembly, Idler

$

$

Not available

H

Simplicity 1729261SM

Spacer

$13.99

$

Usually ships in 2-12 days

0

J

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

K

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

L

Simplicity 2705003

Screw, Cap, Hex., 3/8"-16 N.C. x 2-1/4" lg.

$

$

Not available

M

Simplicity 2717003

Nut, Hex., Full, 3/8"-16 N.C.

$

$

Not available

N

Simplicity 2717510

Nut, Lock, Hex., Full, 3/8"-16 N.C.

$

$

Not available

P

Simplicity 154110

Link, Clutch

$

$

Not available

Q

Simplicity 2717511

Nut, Lock, Hex., Full, 5/16"-18 N.C.

$

$

Not available

R

Simplicity 154114

Lever Assembly, Clutch and Brake

$

$

Not available

S

Simplicity 2713502

Screw, Set, Cup Point Socket Head, 5/16"-18 N.C. x 1/4" lg.

$

$

Not available

T

Simplicity 2154117SM

Guide Assembly, Rod

$19.99

$

Usually ships in 2-12 days

0

U

Simplicity 2717001

Nut, Hex., Full, 5/16"-18 N.C.

$

$

Not available

V

Simplicity 154118

Rod, Brake and Clutch

$

$

Not available

W

Simplicity 154120

Lever Assembly, Foot Pedal

$

$

Not available

X

Simplicity 2713502

Screw, Set, Cup Point Socket Head, 5/16"-18 N.C. x 1/4" lg.

$

$

Not available

Y

Simplicity 8271027

Bushing

$

$

Not available

Z

Simplicity 154123

Bearing Assembly, Foot Pedal

$

$

Not available

AA

Simplicity 2705007

Screw, Cap, Hex., 5/16"-18 N.C. x 1" lg.

$

$

Not available

AB

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

AC

Simplicity 2717001

Nut, Hex., Full, 5/16"-18 N.C.

$

$

Not available

AD

Simplicity 154126

Pedal Assembly, Foot (Brake and Clutch)

$

$

Not available

AE

Simplicity 2725002

Key, Woodruff #6

$

$

Not available

AF

Simplicity 2121037SM

Spring

$

$

Not available

AG

Simplicity 154119

Clip, Spring

$

$

Not available

AH

Simplicity 715032

Screw, Cap, Hex., 3/8"-16 N.C. x 3" lg.

$55.99

$

Usually ships in 2-12 days

0

AJ

Simplicity 108172

Pivot

$

$

Not available

AK

Simplicity 2717003

Nut, Hex., Full, 3/8"-16 N.C.

$

$

Not available

AL

Simplicity 2722001

Pin, Cotter, 3/32" dia. x 3/4" lg.

$

$

Not available

AM

Simplicity 2154132

Brake Band and Lining Assembly

$

$

Not available

AN

Simplicity 2154060

Band, Brake

$

$

Not available

AP

Simplicity 724501

Rivet #7 x 5/16" lg.

$

$

Not available

AQ

Simplicity 2154133

Lining, Brake

$

$

Not available

AR

Simplicity 154134

Bracket, Brake Band

$

$

Not available

AS

Simplicity 2705030

Screw, Cap, Hex., 1/4"-20 N.C. x 3/4" lg.

$

$

Not available

AT

Simplicity 2720003

Washer, Lock, 1/4"

$

$

Not available

AU

Simplicity 2717005

Nut, Hex., Full, 1/4"-20 N.C.

$

$

Not available

AV

Simplicity 2108157SM

Clevis, Adj.

$24.99

$

Usually ships in 2-12 days

0

AW

Simplicity 2717003

Nut, Hex., Full, 3/8"-16 N.C.

$

$

Not available

AX

Simplicity 715023

Screw, Cap, Hex., 3/8"-16 N.C. x 3-1/4" lg.

$149.99

$

Usually ships in 2-12 days

0

AY

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AZ

Simplicity 2705031

Screw, Cap, Hex., 3/8"-16 N.C. x 7/8" lg.

$

$

Not available

BA

Simplicity 2725003

Key, Woodruff #9

$

$

Not available

BB

Simplicity 154131

Drum, Brake

$

$

Not available

BC

Simplicity 2713010

Screw, 5/16" Cup Point Square Head, 5/16"-18 N.C. x 5/8" lg.

$

$

Not available

BD

Simplicity 154111

Shaft Assembly, Clutch and Brake

$

$

Not available

BE

Simplicity 2725002

Key, Woodruff #6

$

$

Not available

BF

Simplicity 154248

Retainer, Spring

$

$

Not available

BG

Simplicity 154274

Spring

$

$

Not available

BH

Simplicity 2722010

Pin, Cotter 1/8" x 1-1/4" lg.

$

$

Not available

BJ

Simplicity 2108158

Pin, Clevis

$

$

Not available

BK

Simplicity 2722001

Pin, Cotter, 3/32" x 3/4"lg.

$

$

Not available
