700 (990168) - Simplicity Wonderboy Garden Tractor FRAME, HOOD, GRILL, INST. PANEL & STEERING POST Parts Diagram

Wonderboy Garden Tractor

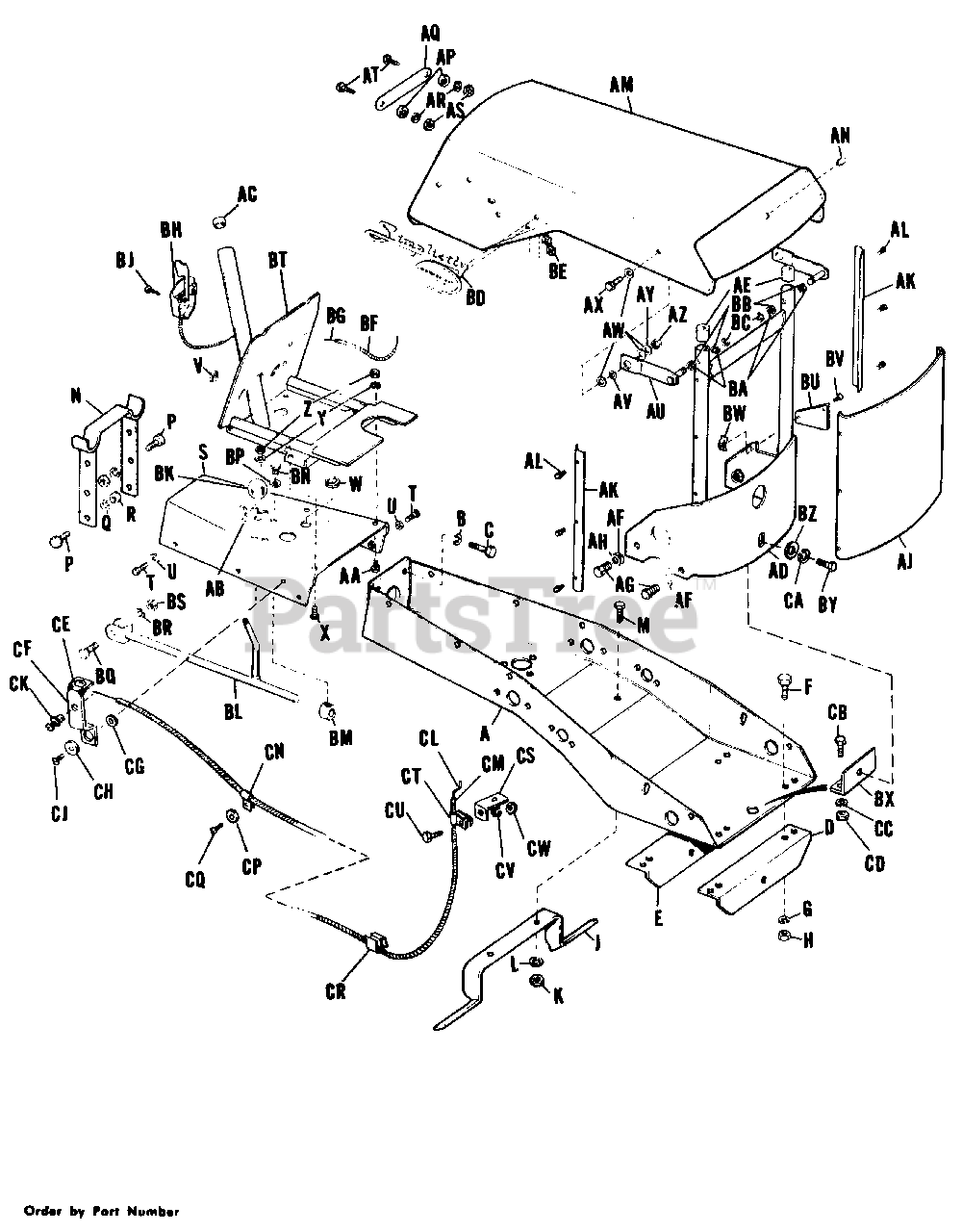

FRAME, HOOD, GRILL, INST. PANEL & STEERING POST Parts Diagram

  • Title

A

Simplicity 154043

Frame Assembly

$

$

Not available

B

Simplicity 2720006

Washer, Lock,7/16"

$

$

Not available

C

Simplicity 705039

Screw, Cap, Hex., 7/16"-14 N.C. x 1-1/2" lg.

$6.99

$

In Stock, only 2 left!

0

D

Simplicity 154033

Angle, Frame, Front

$

$

Not available

E

Simplicity 154420

Angle, Frame, Rear

$

$

Not available

F

Simplicity 2705031

Screw, Cap, Hex., 3/8"-16 N.C. x 7/8" lg.

$

$

Not available

G

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

H

Simplicity 2717003

Nut, Hex., Full, 3/8"-16 N.C.

$

$

Not available

J

Simplicity 154036

Foot Rest

$

$

Not available

K

Simplicity 2717003

Nut, Hex., Full, 3/8"-16 N.C.

$

$

Not available

L

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

M

Simplicity 2705005

Screw, Cap, Hex., 3/8"-16 N.C. x 1" lg.

$

$

Not available

N

Simplicity 154039

Support Assembly, Seat

$

$

Not available

P

Simplicity 2705007

Screw, Cap, Hex., 5/16"-18 N.C. x 1" lg.

$

$

Not available

Q

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

R

Simplicity 2717001

Nut, Hex., Full, 5/16"-18 N.C.

$

$

Not available

S

Simplicity 154053

Cover Assembly, Frame

$

$

Not available

T

Simplicity 714013

Screw, Recessed, Hex., 1/4"-28 x 7/8" lg.

$

$

Not available

U

Simplicity 2720003

Washer, Lock, 1/4"

$

$

Not available

V

Simplicity 154288

Button, Plug

$

$

Not available

W

Simplicity 154290

Grommet, Rubber

$

$

Not available

X

Simplicity 2705021

Screw, Cap, Hex., 1/4"-20 N.C. x 1" lg.

$

$

Not available

Y

Simplicity 2717005

Washer, Lock, 1/4"

$

$

Not available

Z

Simplicity 2717005

Nut, Hex., Full, 1/4"-20 N.C.

$

$

Not available

AA

Simplicity 2705030

Screw, Cap, Hex., 1/4"-20 N.C. x 3/4" lg.

$

$

Not available

AB

Simplicity 154320

Decal, Shift Instruction

$

$

Not available

AC

Simplicity 2154289SM

Bushing

$12.99

$

Usually ships in 2-12 days

0

AD

Simplicity 154407

Support Assembly, Grill
(Superseded to 709099)

$6.49

$

Usually ships in 2-12 days

0

AE

Simplicity 154316

Bumper, Hood

$

$

Not available

AF

Simplicity 2720001

Washer, Lock, 3/8"

$

$

Not available

AG

Simplicity 2705011

Screw, Cap, Hex., 3/8"-16 x 5/8" lg.

$

$

Not available

AH

Simplicity 2719001

Washer Plain 3/8"

$

$

Not available

AJ

Simplicity 154186

Grill

$

$

Not available

AK

Simplicity 154187

Molding Strip

$

$

Not available

AL

Simplicity 2714003

Screw, Self Topping #10 x 1/2" lg.

$

$

Not available

AM

Simplicity 154049

Hood Assembly

$

$

Not available

AN

Simplicity 154302

Button, Plug

$

$

Not available

AP

Simplicity 1663752SM

Bushing

$5.99

$

In Stock, only 2 left!

0

AQ

Simplicity 154016

Bar, Hood Latch

$

$

Not available

AR

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

AS

Simplicity 2717001

Nut, Hex., Full, 5/16"-18 N.C.

$

$

Not available

AT

Simplicity 2705017

Screw, Cap, Hex., 5/16"-18 N.C. x 3/4" lg.

$

$

Not available

AU

Simplicity 154188

Pivot Link Assembly, Hood

$

$

Not available

AV

Simplicity 1663752SM

Bushing

$5.99

$

In Stock, only 2 left!

0

AW

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AX

Simplicity 2705016

Screw, Cap, Hex., 3/8"-16 N.C. x 1-1/4" lg.

$

$

Not available

AY

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AZ

Simplicity 2717003

Nut, Hex., Full 3/8"-16 N.C.

$

$

Not available

BA

Simplicity 154303

Washer, Plain, Nylon

$

$

Not available

BB

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

BC

Simplicity 2717510

Nut, Lock, Hex., Full

$

$

Not available

BD

Simplicity 154391

Emblem, Simplicity

$

$

Not available

BE

Simplicity 718018

Nut, Speed, Push On

$

$

Not available

BF

Simplicity 154294

Cable, Throttle

$

$

Not available

BG

Simplicity 154295

Wire, Throttle

$

$

Not available

BH

Simplicity 154293

Control, Throttle Lever

$

$

Not available

BJ

Simplicity 714010

Screw, Self Tapping, Round Slotted Head, #10-24 x 1" lg.

$

$

Not available

BK

Simplicity 1729255SM

Ball

$12.99

$

Usually ships in 2-12 days

0

BL

Simplicity 154150

Rod Assembly, Shifter

$

$

Not available

BM

Simplicity 18301042

Collar

$

$

Not available

BN

Simplicity 705043

Screw, Cap, Hex., 5/16"-18 N.C. x 3/8" lg.

$11.99

$

Usually ships in 2-12 days

0

BP

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

BQ

Simplicity 2705018

Screw, Cap, Hex., 5/16"-18 NC x 1-1/2" lg.

$

$

Not available

BR

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

BS

Simplicity 2717001

Nut, Hex., Full, 5/16"-18 NC

$

$

Not available

BT

Simplicity 154430

Support Assembly, Steering Post

$

$

Not available

BU

Simplicity 154410

Cover Plate

$

$

Not available

BV

Simplicity 2714003

Screw, Self Tap, #10 x 1/2" lg.

$

$

Not available

BW

Simplicity 718019

Nut, Speed

$

$

Not available

BX

Simplicity 154385

Bracket Assembly

$

$

Not available

BY

Simplicity 2705019

Capscrew, Hex, 5/16"-18 NC x 1-1/4" lg.

$

$

Not available

BZ

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

CA

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

CB

Simplicity 2705007

Capscrew, Hex, 5/16"-18 NC x 1" lg.

$

$

Not available

CC

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

CD

Simplicity 2717001

Nut, Hex, Full, 5/16"-18 NC

$

$

Not available

CE

Simplicity 121294

Choke Decal

$

$

Not available

CF

Simplicity 154405

Choke Lever

$

$

Not available

CG

Simplicity 154406

Washer (spacer)

$

$

Not available

CH

Simplicity 2719006

Washer, Plain, 1/4"

$

$

Not available

CJ

Simplicity 2714012

Screw, Self Tap, 1/4"-20 NC x 7/8" lg.

$

$

Not available

CK

Simplicity 154403

Clamp, Wire

$

$

Not available

CL

Simplicity 154402

Wire, Choke

$

$

Not available

CM

Simplicity 154401

Cable, Choke

$

$

Not available

CN

Simplicity 154247

Clamp

$

$

Not available

CP

Simplicity 2719006

Washer, Plain

$

$

Not available

CQ

Simplicity 2714012

Screw, Self Tap, 1/4"-20 NC x 7/8" lg.

$

$

Not available

CR

Simplicity 154404

Speed Clip

$

$

Not available

CS

Simplicity 2108186SM

Clip

$12.99

$

In Stock, only 1 left!

0

CT

Simplicity 154247

Clamp

$

$

Not available

CU

Simplicity 2705002

Capscrew, Hex, 1/4"-20 NC x 1/2" lg.

$

$

Not available

CV

Simplicity 2720003

Washer, Lock, 1/4"

$

$

Not available

CW

Simplicity 2717005

Nut, Hex Full, 1/4"-20 NC

$

$

Not available
