700 (990168) - Simplicity Wonderboy Garden Tractor ELECTRIC STARTER-GENERATOR SYSTEM Parts Diagram

Wonderboy Garden Tractor

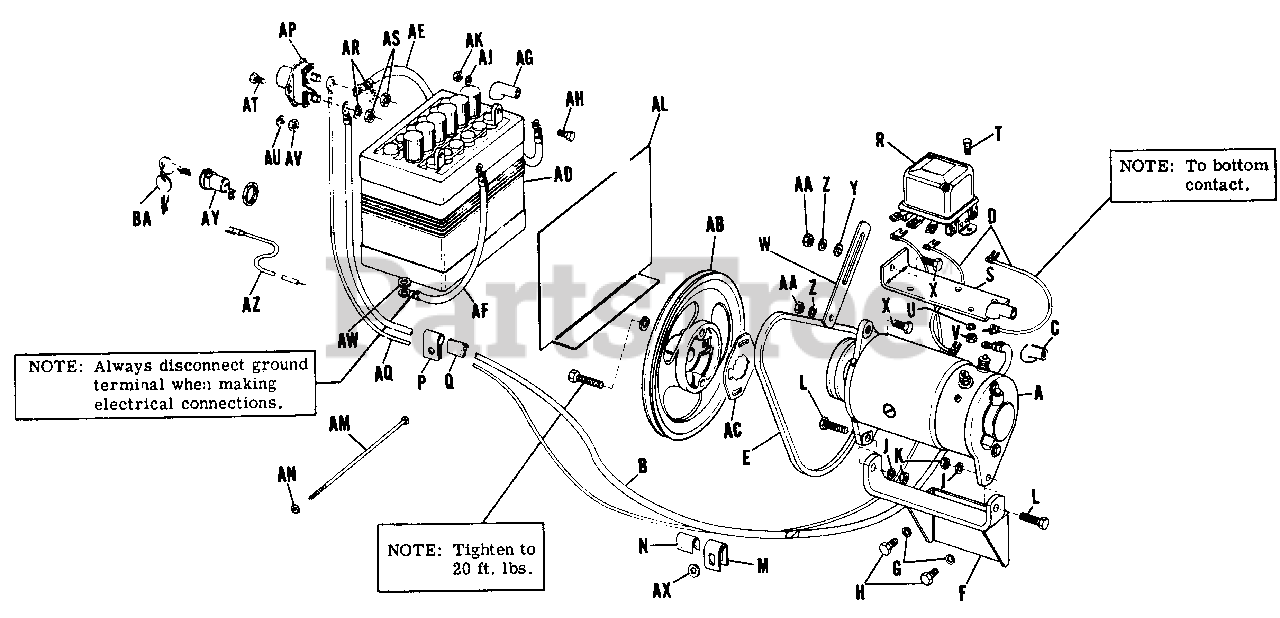

ELECTRIC STARTER-GENERATOR SYSTEM Parts Diagram

  • Title

A

Simplicity 122041

Motor-Generator

$

$

Not available

B

Simplicity 122042

Cable, Switch to Generator

$

$

Not available

C

Simplicity 2122023SM

Cover, Terminal

$5.99

$

In Stock, Qty 12

0

D

Simplicity 122043

Wire

$

$

Not available

E

Simplicity 2122060

Belt, "V"

$

$

Not available

F

Simplicity 2154253

Support Assembly

$

$

Not available

G

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

H

Simplicity 2705017

Screw, Cap, Hex., 5/16"-18 N.C. x 3/4" lg.

$

$

Not available

J

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

K

Simplicity 2717001

Nut, Full, Hex., 5/16"-18 N.C.

$

$

Not available

L

Simplicity 2705019

Screw, Cap, Hex., 5/16"-18 N.C. x 1-1/4" lg.

$

$

Not available

M

Simplicity 8061117

Clamp, Cable

$

$

Not available

N

Simplicity 122059

Lining, Clamp

$

$

Not available

P

Simplicity 122024

Clip, Cable

$

$

Not available

Q

Simplicity 122025

Lining, Clip

$

$

Not available

R

Simplicity 122044

Regulator, Voltage

$

$

Not available

S

Simplicity 154002

Bracket, Voltage Regulator

$

$

Not available

T

Simplicity 2705002

Screw, Cap, Hex., 1/4"-20 N.C. x 1/2" lg.

$

$

Not available

U

Simplicity 2720003

Washer, Lock, 1/4"

$

$

Not available

V

Simplicity 2717005

Nut, Hex., Full, 1/4"-20 N.C.

$

$

Not available

W

Simplicity 154001

Tightener, Belt

$

$

Not available

X

Simplicity 2705017

Screw, Cap, Hex., 5/16"-18 N.C. x 3/4" lg.

$

$

Not available

Y

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

Z

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

AA

Simplicity 2717001

Nut, Hex., Full, 5/16"-18 N.C.

$

$

Not available

AB

Simplicity 154254

Pulley, Engine

$

$

Not available

AC

Simplicity 154292

Nut, Lock

$

$

Not available

AD

Simplicity 122001

Battery

$

$

Not available

AE

Simplicity 2122079

Cable, w/cover

$

$

Not available

AF

Simplicity 2122045

Cable

$

$

Not available

AG

Simplicity 2122023SM

Cover, Terminal

$5.99

$

In Stock, Qty 12

0

AH

Simplicity 2705015

Screw, Cap, Hex., 1/4"-20 N.C. x 5/8" lg.

$

$

Not available

AJ

Simplicity 2720003

Washer, Lock, 1/4"

$

$

Not available

AK

Simplicity 2717005

Nut, Hex, Full, 1/4"-20 N.C.

$

$

Not available

AL

Simplicity 154313

Gasket, Tank

$

$

Not available

AM

Simplicity 701013

Bolt, Mach., 1/4"-20 N.C. x 7-3/4" lg.

$

$

Not available

AN

Simplicity 2717513

Nut, Lock, Full, Hex., 1/4"-20 N.C.

$

$

Not available

AP

Simplicity 2122046

Switch, Starting

$

$

Not available

AQ

Simplicity 122047

Wire, Starting Switch to Regulator

$

$

Not available

AR

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AS

Simplicity 2717003

Nut, Hex., Full, 3/8"-16 N.C.

$

$

Not available

AT

Simplicity 2705015

Screw, Cap, Hex., 1/4"-20 N.C. x 1/2" lg.

$

$

Not available

AU

Simplicity 2720003

Washer, Lock, 1/4"

$

$

Not available

AV

Simplicity 2717005

Nut, Hex., Full, 1/4"-20 N.C.

$

$

Not available

AW

Simplicity 2719006

Washer, Plain, 1/4"

$

$

Not available

AX

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

AY

Simplicity 1686702SM

Switch, Ignition, w/keys

$

$

Not available

AZ

Simplicity 122049

Wire Switch

$

$

Not available

BA

Simplicity 2122111SM

Set, Ignition Keys

$22.99

$

Usually ships in 2-12 days

0
