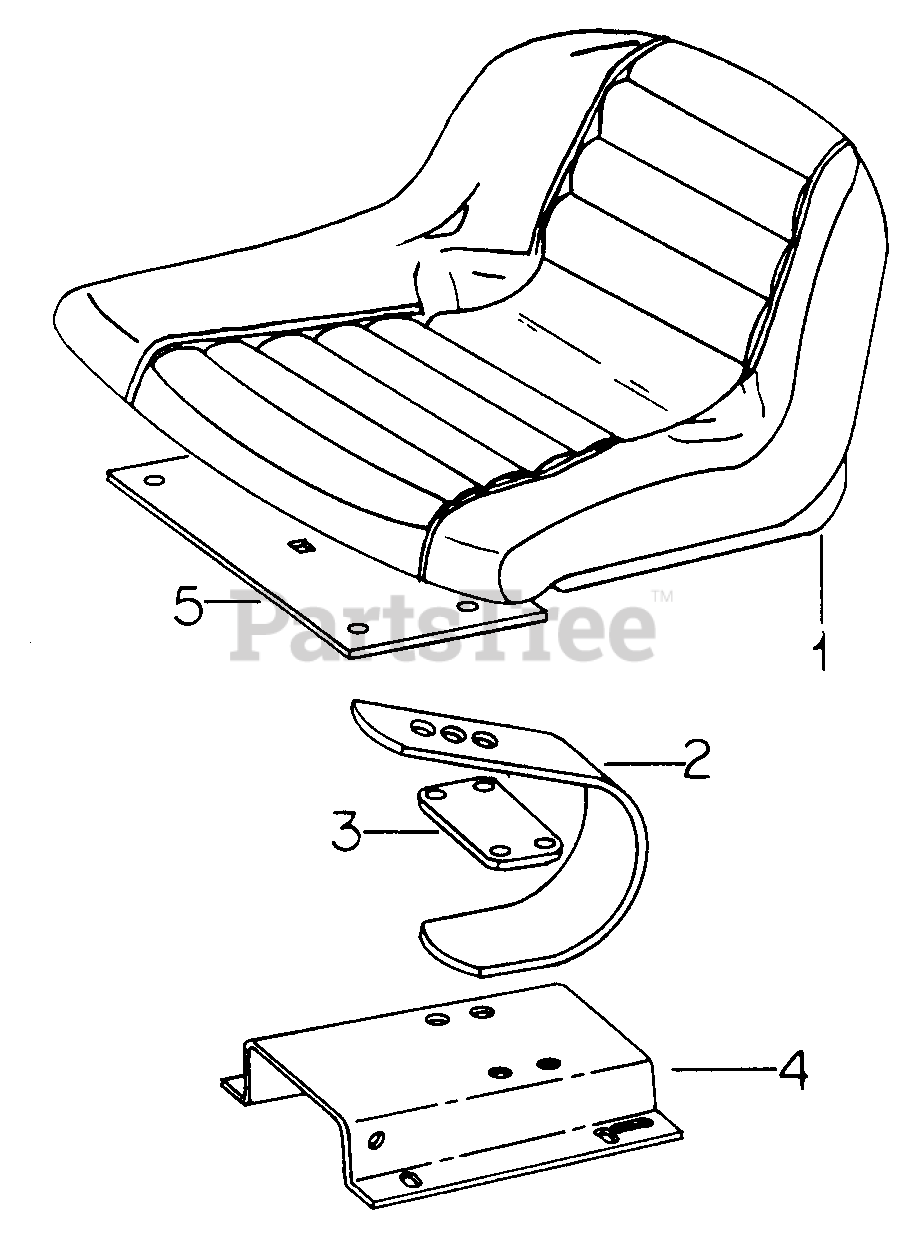

Cub Cadet 759-3147

Seat Assy

Note: (Replaces IH-376170-R91 & IH-534243-R1 by also ordering bracket IH-72876-C2

$

$

Currently unavailable

Bolt, 1/2-13 X 1 C-Z Sq Nk Crg

$

$

Not available

Cub Cadet 712-0206

Nut, 1/2-13 C-Z Hex

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0921

Washer, 1/2 C-Z Med Lock

$4.49

$

In Stock, Qty 6

0

Cub Cadet 759-3147

Seat Assy, Upholstered Cushion

$

$

Currently unavailable

Cub Cadet 712-0206

Nut, 1/2-13 C-Z Hex

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0921

Washer, 1/2 C-Z Med Lock

$4.49

$

In Stock, Qty 6

0

2

~NLA

Spring, Seat Support

$

$

Not available

3

~NLA

Plate, Seat Spring Clamping

$

$

Not available

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap

$

$

Not available

4

~NLA

Support Assy, Seat Spring

$

$

Not available

Screw, 3/8-16 X 11/16 C-Z Hex Hd Cap

$

$

Not available

5

Cub Cadet IH-72876-C2

Bracket, Seat Mounting

$

$

Not available

Cub Cadet 710-3038

Screw, 5/16-18 X 3/4 Znd Hex Hd Cap

$4.99

$

In Stock, only 3 left!

0

Cub Cadet 736-0119

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

~NLA

Washer, .344 X .750 X .164 Znd

$

$

Not available

Cub Cadet 736-0921

Washer, 1/2 Znd Reg Lock

$4.49

$

In Stock, Qty 6

0

Cub Cadet 712-0206

Nut, 1/2-13 Znd Hex

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-385073-R1

Pad, Detachable Seat

Note: (Yellow and White)

$

$

Not available
