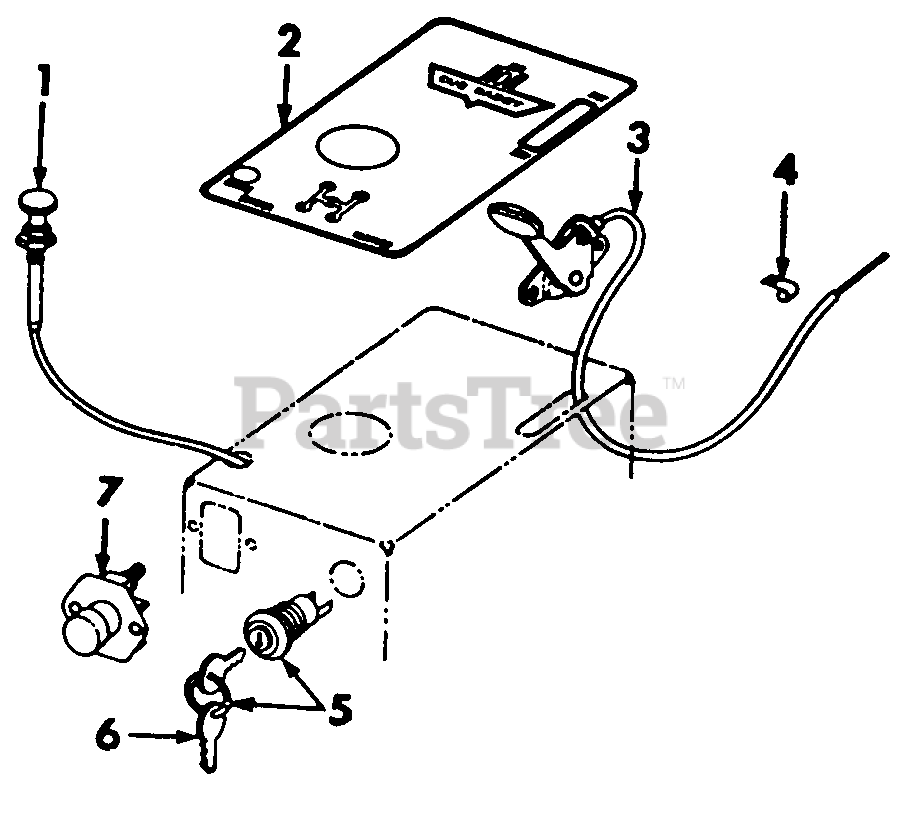

70 - Cub Cadet Garden Tractor Engine Controls & Instrument Panel Parts Diagram

Garden Tractor

Engine Controls & Instrument Panel Parts Diagram

  • Title

1

Cub Cadet IH-384884-R91

Lever and Cable Assy, Choke
(Superseded to IH-384884-R92)

$

$

Not available

2

Product Graphics, Instrument Panel

Note: (Not serviced separately order package IH-393417-R91)

$

$

Not available

3

Cub Cadet IH-384882-R92

Lever and Cable Assy, Throttle

Note: (Cub Cadet 70)

$

$

Not available

Cub Cadet IH-384883-R92

Lever and Cable Assy, Throttle
(Superseded to IH-384883-R93)

Note: (Cub Cadet 100)

$80.99

$

In Stock, Qty 7

0

Cub Cadet BS-231082

Nut, 10-24 C-Z Hex Mach Screw

$

$

Not available

Screw, 10-24 X 1/2 C-Z Rd Hd Sltd Mach

$

$

Not available

Cub Cadet 736-0722

Washer, No. 10 C-Z Med Lock

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet IH-376298-R1

Clip, Throttle Cable Retainer
(Superseded to KH-210149)

$

$

Not available

Cub Cadet 712-0142

Nut, 8-32 C-Z Hex Mach Screw

$4.49

$

In Stock, Qty 10

0

Screw, 8-32 X 1/2 C-Z Cr Rec Pan Hd Mach

$

$

Not available

Cub Cadet IH-121841

Washer, No. 8 C-Z Med Lock

$

$

Not available

Cub Cadet IH-376298-R1

Clip, Choke & Throttle Cable Retainer
(Superseded to KH-210149)

Note: (Up to Serial No. 100309)

$

$

Not available

Cub Cadet 712-0142

Nut, 8-32 C-Z Hex Mach Screw

$4.49

$

In Stock, Qty 10

0

Screw, 8-32 X 1/2 C-Z Cr Rec Pan Hd Mach

$

$

Not available

Cub Cadet IH-121841

Washer, No. 8 C-Z Med Lock

$

$

Not available

5

Cub Cadet IH-403562-R2

Switch Assy, Ignition
(Superseded to IH-403562-R3)

Note: (Tractors with electric starter.)

$

$

Not available

Cub Cadet IH-379593-R92

Switch Assy, Ignition

Note: (Tractors with retractable starter)

$

$

Currently unavailable

Cub Cadet IH-365502-R1

Nut, Switch Mounting

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-375431-R1

Washer, Switch Mounting Nut

$11.99

$

In Stock, only 1 left!

0

6

Cub Cadet IH-382458-R1

Key, Switch

$

$

Currently unavailable

7

Cub Cadet IH-376295-R91

Switch Assy, Starting

Note: (Tractors with electric starter.)

$

$

Not available

Nut, 5/16-24 C-Z Hex Jam

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

Screw, 1/4-20 X 3/4 C-Z Slt Pan Hd Mach

$

$

Not available

Cub Cadet 736-0329

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 736-0119

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-3020

Washer, 17/64 X 5/8 X .049 C-Z

$6.99

$

In Stock, Qty 9

0
