70 - Cub Cadet Garden Tractor Creeper Drive Parts Diagram

Garden Tractor

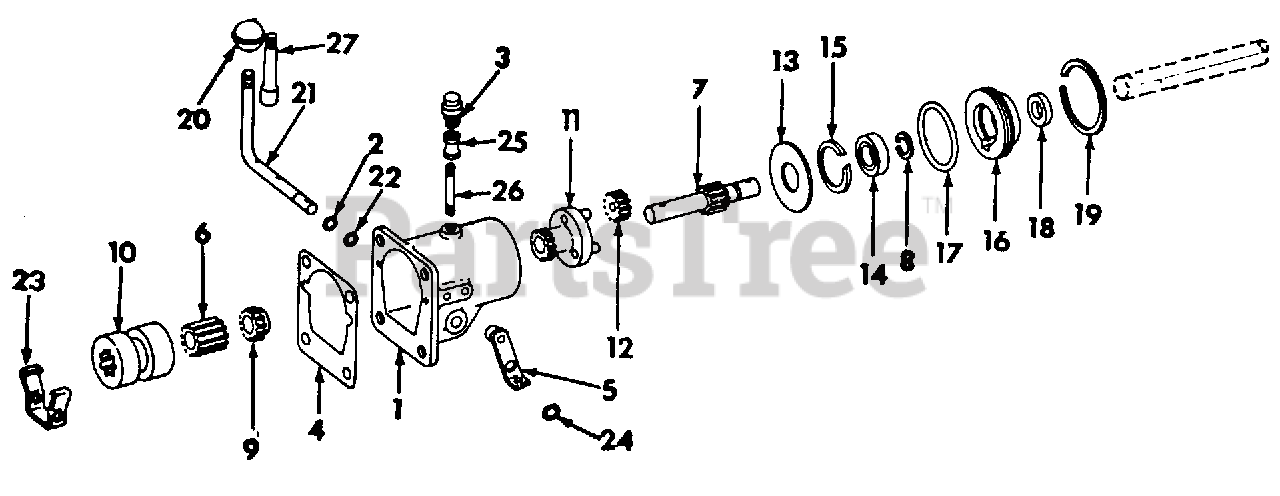

Creeper Drive Parts Diagram

  • Title

1

Cub Cadet 719-3025

Housing, Creeper Drive

$

$

Currently unavailable

Cub Cadet 737-3002

Plug, 1/8-27 Auto Sq Hd Pipe

$

$

Currently unavailable

Cub Cadet 710-3001

Screw, 3/8-16 X 7/8 Hex Hd Cap

$7.49

$

In Stock, Qty 9

0

Nut, 3/8-16 Hex

$

$

Not available

2

Cub Cadet 721-3008

O-Ring, 3/8 X 1/2 X 1/16

Note: (Creeper Shift Handle)

$

$

Not available

3

Cub Cadet 723-3021

Breather, Creeper Drive Housing

$23.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 721-3009

Gasket, Creeper Drive Housing

$

$

Not available

5

Cub Cadet 703-0410

Lever Assy, Creeper Shift Poppet

$

$

Not available

6

Cub Cadet 703-1061

Coupling Assy, Driven

$

$

Not available

Cub Cadet 715-3011

Pin, 1/4 X 7/8 Hv Coiled Spring

$

$

Not available

7

Cub Cadet 711-3074A

Shaft, Creeper Drive Input

$

$

Not available

8

Cub Cadet 716-0115

Ring, Creeper Drive Input Shaft Snap
(Superseded to 916-0115)

$

$

Not available

9

Cub Cadet 717-3019

Coupling, Direct Drive

$

$

Not available

Cub Cadet 715-3011

Pin, 1/4 X 7/8 Hv Coiled Spring

$

$

Not available

10

Cub Cadet 717-3020

Collar, Shifter

$

$

Not available

11

Cub Cadet 759-3124

Carrier Assy, Planet

$

$

Not available

12

Cub Cadet 717-3022

Gear, Planet

$

$

Not available

13

Cub Cadet 736-3049

Washer, Planet Gear Thrust

$

$

Currently unavailable

14

Cub Cadet IH-462848-R91

Bearing, Creeper Input Shaft Ball
(Superseded to 741-0145)

$42.99

$

In Stock, only 2 left!

0

15

Cub Cadet 716-3007

Ring, Input Shaft Brg Snap
(Superseded to 716-04098)

$5.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 719-3026

Cage, Input Shaft Brg

$

$

Not available

17

Cub Cadet 721-3010

O-Ring, 2-7/16 X 2-5/8 X 3/32

Note: (Input Shaft Brg Cage)

$

$

Not available

18

Cub Cadet 721-3011

Seal, Input Shaft Brg Cage Oil
(Superseded to 921-3011)

$21.99

$

In Stock, only 2 left!

0

19

Cub Cadet 716-3008

Ring, Input Shaft Brg Cage Retainer Snap

$

$

Not available

20

Cub Cadet 720-3008

Knob, Creeper Shift Lever
(Superseded to 00012118)

$

$

Not available

21

Cub Cadet IH-385041-R1

Lever, Creeper Shift

$

$

Not available

Cub Cadet IH-364436-R1

Pin, 3/16 X 1 Coiled Spring
(Superseded to 715-0120)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet 715-3003

Pin, 3/16 X 3/4 Coiled Spring

$6.99

$

In Stock, Qty 7

0

Cub Cadet 714-3010

Pin, 3/32 X 5/8 Cot

$4.99

$

In Stock, only 1 left!

0

Cub Cadet IH-103341

Washer, 13/32 X 13/16 X .065

$

$

Not available

22

Cub Cadet IH-352219-R1

O-Ring, 1/4 X 3/8 X 1/16
(Superseded to 721-3012)

Note: (Creeper Shift Lever)

$

$

Not available

23

Cub Cadet 703-0409

Yoke, Creeper Shift

$

$

Not available

24

Cub Cadet 736-3051

Spacer, Poppet Lever

$

$

Not available

25

Cub Cadet IH-105408

Coupler, 1/8 Pipe

$

$

Currently unavailable

26

~NLA

Nipple, 1/8 X 2-1/4 Pipe

$

$

Not available

27

Cub Cadet IH-390868-R1

Extension, Shift Lever

$

$

Not available

Cub Cadet IH-2753264-R1

Product Graphic, Creeper Speed

$

$

Not available
