7-2521 - Toro 38" Sweeper Attachment (1972) PARTS LIST Parts Diagram

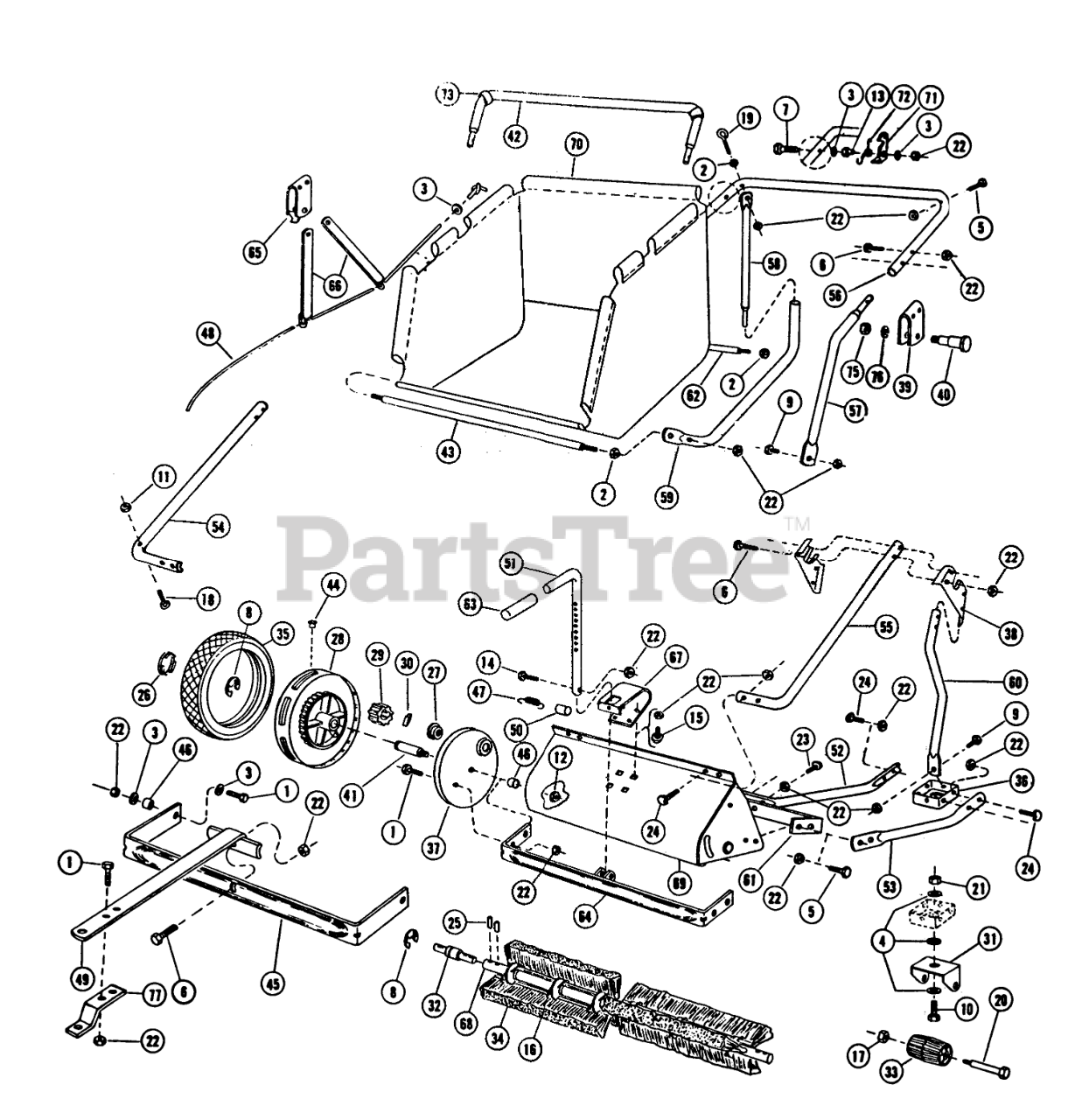

38" Sweeper Attachment

PARTS LIST Parts Diagram

  • Title

1

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

2

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

3

Toro 920008-4

Washer

$

$

Currently unavailable

4

Toro 920011-5

Washer-1/2 SAE

$

$

Currently unavailable

5

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

6

Toro 908020-4

Bolt 5/16-18 x 11/4

$

$

Currently unavailable

8

Toro 4736

RING LAM L 262

$

$

Not available

10

Toro 908058-4

Bolt Hex 1/2-13 x 1 1/4

$

$

Currently unavailable

11

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

12

Toro 915002-6

Locknut 3/8-24

$

$

Currently unavailable

13

Toro 101551

Bolt Nut 5/16-18

$

$

Not available

14

Toro 908022-4

Hex Cap Screw

$

$

Currently unavailable

15

Toro 101552

Bolt-Carriage 5/16-18 x 5/8

$

$

Not available

17

Toro 915002-6

Locknut 3/8-24

$

$

Currently unavailable

18

Toro 101554

Bolt-Eye 1/4-20 x 2
(Superseded to 102555)

$

$

Not available

19

Toro 101555

Bolt-Eye 5/16-18 x 2 3/4

$

$

Not available

20

Toro 101556

STUD CASTER

$65.99

$

Usually ships in 3-6 days

0

21

Toro 915115-6

Locknut-1/2-13

$

$

Currently unavailable

22

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

23

Toro 101557

Bolt-Tube 5/16-18 x 1 1/4

$

$

Not available

24

Toro 101558

BOLT

$

$

Not available

25

Toro 908005-4

Bolt-Hex 1/4-20

$

$

Currently unavailable

26

Toro 4733

PLUG BUTTON

$

$

Not available

27

Toro 101559

BEARING

$

$

Not available

28

Toro 4705

Wheel Ass-y.

$

$

Not available

29

Toro 4715

PINION GEAR

$

$

Not available

30

Toro 101560

PINION PAWL

$

$

Not available

31

Toro 101561

Bracket-Caster

$

$

Not available

32

Toro 101562

AXLE BRUSH STUD

$

$

Not available

33

Toro 101563

CASTER ROLLER

$

$

Not available

34

Toro 101564

STRIP BRUSH

$

$

Not available

35

Toro 101565

Tire

$

$

Not available

36

Toro 101566

Caster, Plate Ass-y.

$

$

Not available

37

Toro 101567

SHIELD WHEEL

$

$

Not available

38

Toro 101568

Bracket-Frame Pivot

$

$

Not available

39

Toro 101569

Bracket-Hamper Pivot

$

$

Not available

40

Toro 101570

PIVOT PIN

$

$

Not available

41

Toro 101571

WHEEL STUD

$

$

Not available

42

Toro 101572

Tube-Pivot Stand

$

$

Not available

43

Toro 101573

Rod-Hamper Tie

$

$

Not available

44

Toro 101574

Oiler

$

$

Not available

45

Toro 102493

Hitch-U Bar

$

$

Not available

46

Toro 101576

Spacer

$

$

Not available

47

Toro 101578

Spring-Adjustment

$

$

Not available

48

Toro 101579

Dump Rope

$

$

Not available

49

Toro 101580

Tongue-Hitch
(Superseded to 102505)

$

$

Not available

50

Toro 101581

TUBE SPRING

$

$

Not available

51

Toro 101582

TUBE ADJUSTING

$

$

Not available

52

Toro 101583

Brace-Pivot Stand

$

$

Not available

53

Toro 101584

Brace-Pivot Stand

$

$

Not available

54

Toro 101585

Tube R.H. Support

$

$

Not available

55

Toro 101586

Tube L.H. Support

$

$

Not available

56

Toro 101587

Tube Top Hamper

$

$

Not available

57

Toro 101588

Tube Side Hamper

$

$

Not available

58

Toro 101589

TUBE

$

$

Not available

59

Toro 101590

Tube Bottom

$

$

Not available

60

Toro 101591

Support R.H. Pivot

$

$

Not available

60

Toro 101592

Support L.H. Pivot

$

$

Not available

61

Toro 101593

Stiffner-Bar

$

$

Not available

62

Toro 101594

Rod-Rear Hamper

$

$

Not available

63

Toro 101595

Grip

$

$

Not available

64

Toro 101596

Bumper Ass-y.

$

$

Currently unavailable

65

Toro 101597

ASSY BRACKET

$

$

Not available

66

Toro 101598

Lever-Dump

$

$

Not available

67

Toro 101599

Bracket-Adjustment

$

$

Not available

68

Toro 101600

Axle-Brush

$

$

Not available

69

Toro 101601

Shield-Ass-y.

$

$

Currently unavailable

70

Toro 101602

Hamper-Ass-y.

$

$

Not available

71

Toro 101603

Latch-Hamper

$

$

Not available

72

Toro 101604

Spring-Latch

$

$

Not available

73

Toro 101605

Sleeve-Rubber

$

$

Currently unavailable

74

Toro 908029-4

Hex Cap Screw 5/16-18 x 4

$

$

Currently unavailable

75

Toro 915002-6

Locknut 3/8-24

$

$

Currently unavailable

76

Toro 920083-4

Lockwasher

$

$

Currently unavailable

77

Toro 101606

BRACKET-HITCH PIN

$

$

Not available

Toro 102491

Decal Adjustment

Note: Not illustrated

$

$

Not available

Toro 8138

Decal
(Superseded to 83-3410)

Note: Not illustrated

$

$

Not available

7

Toro 908021-4

Bolt 5/16-18 x 1/2

$

$

Currently unavailable

9

Toro 908015-4

Bolt Hex 5/16-18

$

$

Currently unavailable

16

Toro 101553

SPRING

$

$

Not available

25

Toro 933186

ROLLPIN 3/16 X 7/8

$

$

Not available

32

Toro 102500

BRUSH STUB AXLE

$

$

Not available

34

Toro 102501

STRIP

$

$

Not available

35

Toro 102492

Tire 10 x 2.25

$

$

Not available

42

Toro 102502

Tube-Pivot Stand

$

$

Not available

43

Toro 102503

Rod-Hamper Tie

$

$

Not available

45

Toro 102504

Hitch-U Bar

$

$

Not available

46

Toro 101577

Spacer

$

$

Not available

49

Toro 102505

Tongue-Hitch

$

$

Not available

53

Toro 102506

TUBE

$

$

Not available

56

Toro 102507

Tube Top Hamper

$

$

Not available

61

Toro 102508

Stiffner-Bar

$

$

Not available

62

Toro 102509

Rod-Rear Hamper

$

$

Not available

64

Toro 102510

Bumper Ass-y.

$

$

Not available

68

Toro 102511

ASSY BRUSH AXLE & DS

$

$

Not available

69

Toro 102512

Shield-Ass-y.

$

$

Not available

70

Toro 102513

HAMPER ASSY

$

$

Not available

61

Toro 102495

Stiffner-Bar

$

$

Not available

64

Toro 102496

Bumper Ass-y.

$

$

Currently unavailable
