7-23 - Husqvarna 23" Snow Blower (1999-10) AUGER HOUSING & IMPELLER Parts Diagram

23" Snow Blower

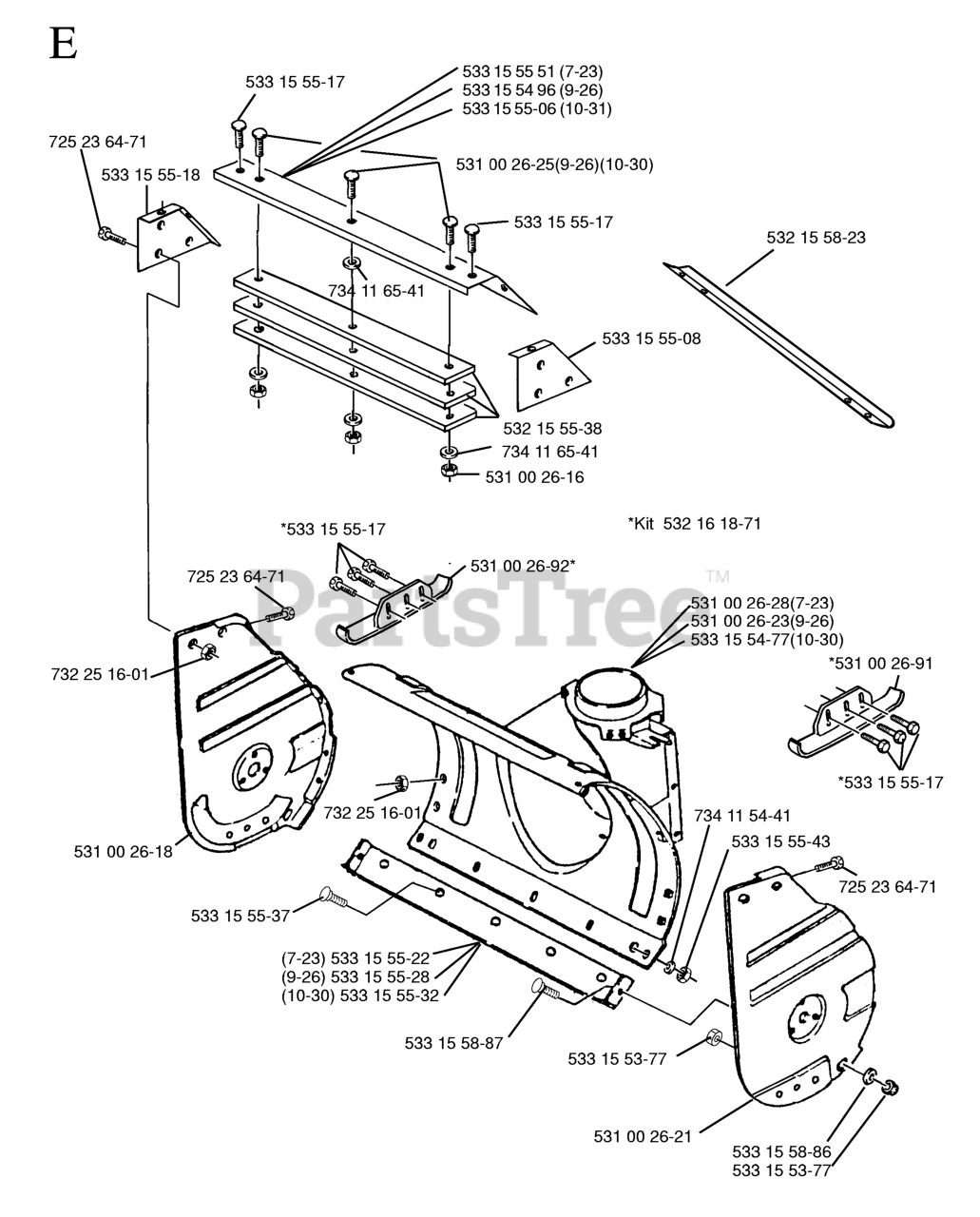

AUGER HOUSING & IMPELLER Parts Diagram

  • Title
725 23 64-71

Husqvarna 725236471

BOLT FLANGE - M6X12
(Superseded to 725236451)

$3.49

$

Usually ships in 3-10 days

0

533 15 53-77

$

$

Not available

533 15 55-18

Husqvarna 533155518

END PLATE RH ASM

$

$

Not available

532 15 58-23

$

$

Not available

533 15 58-87

$

$

Not available

533 15 55-08

Husqvarna 533155508

END PLATE LH ASM

$

$

Not available

533 15 54 96

$

$

Not available

533 15 55-17

$

$

Not available

533 15 55-37

$

$

Not available

531 00 26-23

Husqvarna 531002623

BLOWER HSNG ASSY 26"
(Superseded to 506707301)

$

$

Not available

533 15 55-43

$

$

Not available

533 15 54-77

Husqvarna 533155477

BLOWER HSG 30 ASM

$

$

Not available

531 00 26-28

Husqvarna 531002628

BLOWER HSNG ASSY 23"
(Superseded to 506707401)

$

$

Not available

533 15 55-22

$

$

Not available

533 15 55 51

$

$

Not available

732 25 16-01

Husqvarna 732251601

NUT FLANGE - M6

$3.49

$

In Stock, Qty 11

0

532 16 18-71

$

$

Not available

531 00 26-92

Husqvarna 531002692

SKID, RH
(Superseded to 535414948)

$85.99

$

In Stock, only 1 left!

0

734 11 65-41

Husqvarna 734116541

WASHER - 25X8.5X2.3

$5.99

$

Usually ships in 3-10 days

0

531 00 26-25

Husqvarna 531002625

BOLT CARRIAGE - 5/16-18X1.25

$

$

Not available

533 15 58-86

Husqvarna 533155886

NEEDS DESCRIPTION

$

$

Not available

734 11 54-41

Husqvarna 734115441

WASHER - 26X6.5X1.6
(Superseded to 531003379)

$4.99

$

Usually ships in 3-10 days

0

533 15 55-32

Husqvarna 533155532

WIDE SCRAPER BAR ASM 30"

$

$

Not available

531 00 26-18

Husqvarna 531002618

SIDE PLATE RH
(Superseded to 506707801)

$

$

Not available

531 00 26-16

Husqvarna 531002616

NUT LOCK CENTRE - 5/16-18

$

$

Not available

531 00 26-21

Husqvarna 531002621

SIDE PLATE LH
(Superseded to 506707701)

$

$

Not available

533 15 55-28

Husqvarna 533155528

WIDE SCRAPER BAR 26"

$

$

Not available

532 15 55-38

Husqvarna 532155538

REPL BY 533 15 55-34
(Superseded to 533155538)

$

$

Not available

531 00 26-91

Husqvarna 531002691

SKID, LH
(Superseded to 535414948)

$85.99

$

In Stock, only 1 left!

0

533 15 55-06

$

$

Not available
