7-23 - Husqvarna 23" Snow Blower (1997-12) CONTROL PANEL & DISCHARGE CHUTE 2 Parts Diagram

23" Snow Blower

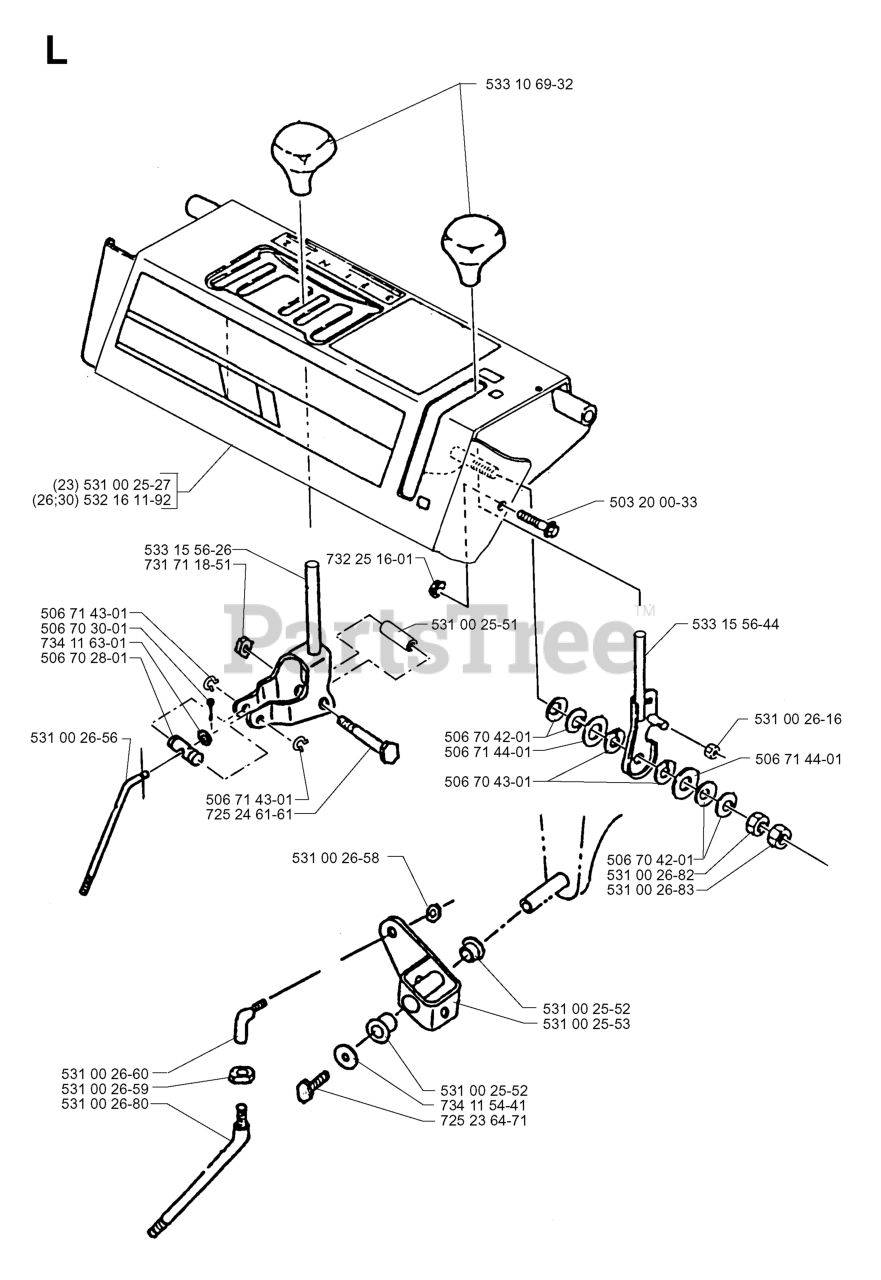

CONTROL PANEL & DISCHARGE CHUTE 2 Parts Diagram

  • Title
734 11 54-41

Husqvarna 734115441

WASHER - 26X6.5X1.6
(Superseded to 531003379)

$4.99

$

Usually ships in 3-10 days

0

506 71 44-01

Husqvarna 506714401

WASHER - 26X10.5X2.3

$

$

Not available

503 20 00-33

Husqvarna 503200033

BOLT FLANGE - M6X35
(Superseded to 725537655)

$4.99

$

In Stock, Qty 13

0

734 11 63-01

Husqvarna 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

506 70 43-01

Husqvarna 506704301

WASHER THRUST

$

$

Not available

725 24 61-61

Husqvarna 725246161

BOLT FLANGE - M8X50

$

$

Not available

531 00 26-83

Husqvarna 531002683

NUT LOCK TOP - 3/8-16 NYLOCK

$

$

Not available

531 00 25-52

Husqvarna 531002552

BUSHING FLANGE - PLASTIC

$

$

Not available

532 16 11-92

Husqvarna 532161192

CONTROL PANEL

Note: 26

$

$

Not available

506 71 43-01

Husqvarna 506714301

RETAINING RING - M12 - C

$

$

Not available

531 00 25-53

$

$

Not available

506 70 42-01

Husqvarna 506704201

WASHER - CONICAL SPRING M10

$

$

Not available

531 00 26-82

Husqvarna 531002682

NUT - 3/8-16

$

$

Not available

533 10 69-32

Husqvarna 533106932

KNOB HANDLE PLASTIC
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

533 15 56-44

$

$

Not available

533 15 56-26

Husqvarna 533155626

GEAR SHIFT LEVER

$

$

Not available

506 70 28-01

Husqvarna 506702801

PIVOT - UPR CLUTCH ROD

$

$

Not available

732 25 16-01

Husqvarna 732251601

NUT FLANGE - M6

$3.49

$

In Stock, Qty 11

0

531 00 26-59

Husqvarna 531002659

NUT - 5/16-24

$

$

Not available

531 00 26-16

Husqvarna 531002616

NUT LOCK CENTRE - 5/16-18

$

$

Not available

531 00 26-60

Husqvarna 531002660

BALL JOINT - 5/16-24

$

$

Not available

506 70 30-01

Husqvarna 506703001

COTTER PIN - M2X20

$

$

Not available

531 00 25-27

Husqvarna 531002527

CONTROL BOX
(Superseded to 531002685)

Note: 23

$

$

Not available

531 00 26-56

Husqvarna 531002656

ROD - CLUTCH UPR 5/16-24

$

$

Not available

531 00 25-51

Husqvarna 531002551

SLEEVE SHIFT LEVER

$

$

Not available

725 23 64-71

Husqvarna 725236471

BOLT FLANGE - M6X12
(Superseded to 725236451)

$3.49

$

Usually ships in 3-10 days

0

531 00 26-58

Husqvarna 531002658

NUT LOCK TOP - 5/16-24 NYLOCK

$

$

Not available

531 00 26-80

Husqvarna 531002680

ROD - SHIFTER UPR 5/16-24
(Superseded to 531002555)

$

$

Not available

731 71 18-51

Husqvarna 731711851

NUT FLANGE - M8
(Superseded to 532155901)

$

$

Not available
