7-1221 - Toro 32" Tiller Attachment (1970) PARTS LIST FOR TILLER MODEL 7-1221 Parts Diagram

32" Tiller Attachment

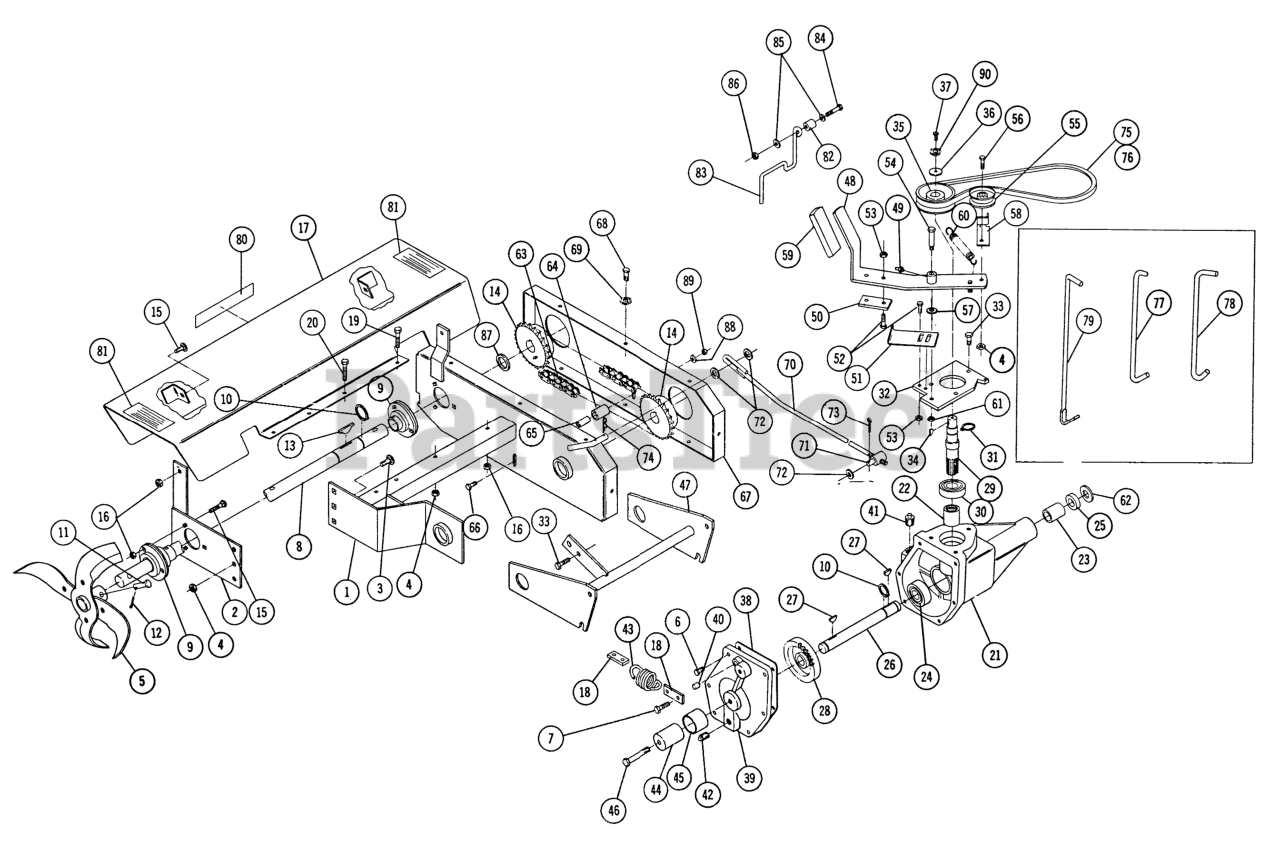

PARTS LIST FOR TILLER MODEL 7-1221 Parts Diagram

  • Title

1

Toro 9216

Frame

$

$

Currently unavailable

2

Toro 9223

Support
(Superseded to 704124)

$

$

Not available

3

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

4

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

5

Toro 9226

Tine

$

$

Not available

6

Toro 908034-6

Bolt, 3/8-16 x 1

$

$

Currently unavailable

7

Toro 908035-6

Bolt 3/8-16 x 1 1/4 Nylok

$

$

Currently unavailable

8

Toro 9230

Shaft-Tine
(Superseded to 703333)

$

$

Not available

9

Toro 9231

Bearing-Flanged Mounted

$

$

Not available

10

Toro 936131

Snap Ring
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 16

0

11

Toro 932965-4

Clevis Pin

$

$

Currently unavailable

12

Toro 932016-4

Cotter Pin

$

$

Currently unavailable

13

Toro 937232

Key-Hi-Pro #806

$

$

Currently unavailable

14

Toro 9233

Sprocket

$

$

Currently unavailable

15

Toro 900037-4

Bolt Hex 5/16-18 x 3/4

$

$

Currently unavailable

16

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

17

Toro 9234

Tine-Shield

$

$

Currently unavailable

18

Toro 4646

Plate

$

$

Currently unavailable

19

Toro 908027-4

Bolt, 5/16-18 x 3

$

$

Currently unavailable

20

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

21

Toro 9238

Case-Gear

$

$

Currently unavailable

22

Toro 1526

Bearing-Axle

$

$

Not available

23

Toro 5571

Bearing-Bronze

$

$

Not available

24

Toro 9239

Ball Bearing

$

$

Not available

25

Toro 9240

Seal

$

$

Not available

26

Toro 9241

Shaft-Output

$

$

Currently unavailable

27

Toro 937232

Key-Hi-Pro #806

$

$

Currently unavailable

28

Toro 9242

Gear-Spiroid

$

$

Currently unavailable

29

Toro 9243

Gear-Pinion Spiroid

$

$

Not available

30

Toro 9244

Ball Bearing

$

$

Not available

31

Toro 936130

Snap Ring-External

$

$

Currently unavailable

32

Toro 9245

Cap-Gear Box

$

$

Currently unavailable

33

Toro 908033-6

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

34

Toro 93722S

Key-Hi-Pro #606

$

$

Currently unavailable

35

Toro 100290

Pulley-Drive

$

$

Currently unavailable

36

Toro 8867

Washer-Special

$

$

Not available

37

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

38

Toro 9247

Gasket-Gear-Case

$

$

Not available

39

Toro 9248

Cover-Gear-Case

$

$

Currently unavailable

40

Toro 8016

Breather

$

$

Not available

41

Toro 943420

Plug
(Superseded to 281-2)

$2.99

$

Usually ships in 3-6 days

0

42

Toro 943419

Plug-Pipe 1/4-18

$

$

Not available

43

Toro 9773

Spring-Stop

$

$

Currently unavailable

44

Toro 9249

Pivot Frame Mounting

$

$

Currently unavailable

45

Toro 9250

Spacer

$

$

Currently unavailable

46

Toro 908065-4

Bolt-Hex 1/2-13 x 3

$

$

Currently unavailable

47

Toro 9771

Mounting Plate

$

$

Currently unavailable

48

Toro 9258

Idler Arm

$

$

Currently unavailable

49

Toro 1030

Zerk

$

$

Not available

50

Toro 9660

Plate-Wear

$

$

Currently unavailable

51

Toro 9255

Bracket-Clutch Adjustment

$

$

Currently unavailable

52

Toro 908003-4

Bolt 1/4-20 X 3/4

$

$

Currently unavailable

53

Toro 915661-4

Nut, 1/4-20

$

$

Currently unavailable

54

Toro 3736

Bolt-Shoulder

$

$

Not available

55

Toro 7434

Idler Pulley
(Superseded to 112426)

$26.99

$

In Stock, only 1 left!

0

56

Toro 908037-4

Bolt Hex 3/8-16

$

$

Currently unavailable

57

Toro 920009-4

Washer

$

$

Currently unavailable

58

Toro 9774

Bracket-Belt Guard

$

$

Currently unavailable

59

Toro 5359

GRIP

$10.99

$

Usually ships in 3-6 days

0

60

Toro 9197

SPRING IDLER

$

$

Not available

61

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

62

Toro 7938

Gear-36T

$

$

Not available

63

Toro 9262

Chain-Drive

$

$

Currently unavailable

64

Toro 9263

Roller-Chain Support

$

$

Currently unavailable

65

Toro 9261

Spacer-Chain Support

$

$

Not available

66

Toro 900066-4

Bolt-Carriage

$

$

Currently unavailable

67

Toro 9264

Cover-Case-Chain

$

$

Currently unavailable

68

Toro 908015-4

Bolt Hex 5/16-18

$

$

Currently unavailable

69

Toro 920082-4

Lockwasher

$

$

Currently unavailable

70

Toro 8868

Rod-Hitch

$

$

Currently unavailable

71

Toro 8870

ROD-TRUNNION LIFT

$

$

Not available

72

Toro 920011-4

Washer

$

$

Currently unavailable

73

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

74

Toro 933512-4

Hairpin

$

$

Currently unavailable

75

Toro 9430

V-BELT

$

$

Not available

76

Toro 9431

BELT TIL DR MECH

$56.99

$

Usually ships in 3-6 days

0

77

Toro 9772

Rod-Tiller Hanger

$

$

Currently unavailable

78

Toro 9265

Rod-Mower Hanger

$

$

Currently unavailable

79

Toro 9488

Rod-Mower Hanger

$

$

Currently unavailable

80

Toro 5415

Decal-Wheel
(Superseded to 83-3410)

$

$

Not available

81

Toro 4498

Decal-Caution
(Superseded to 92-7112)

$

$

Not available

82

Toro 9818

Spacer-Mech. Trans. Tractors Only

$

$

Not available

83

Toro 9589

Guide-Belt

$

$

Currently unavailable

84

Toro 908006-4

Bolt 1/4 20 x 1 1/4

$

$

Currently unavailable

85

Toro 920037-4

Washer

$

$

Currently unavailable

86

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

87

Toro 9232

Spacer tine Shaft

$

$

Not available

88

Toro 920083-4

Lockwasher

$

$

Currently unavailable

89

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

90

Toro 920122-4

Lockwasher

$

$

Currently unavailable
