7-1113 - Toro 40" Grader Blade (1974) PARTS LIST-MID-MOUNTED GRADER BLADE FACTORY ORDER NUMBER 7-1113 Parts Diagram

40" Grader Blade

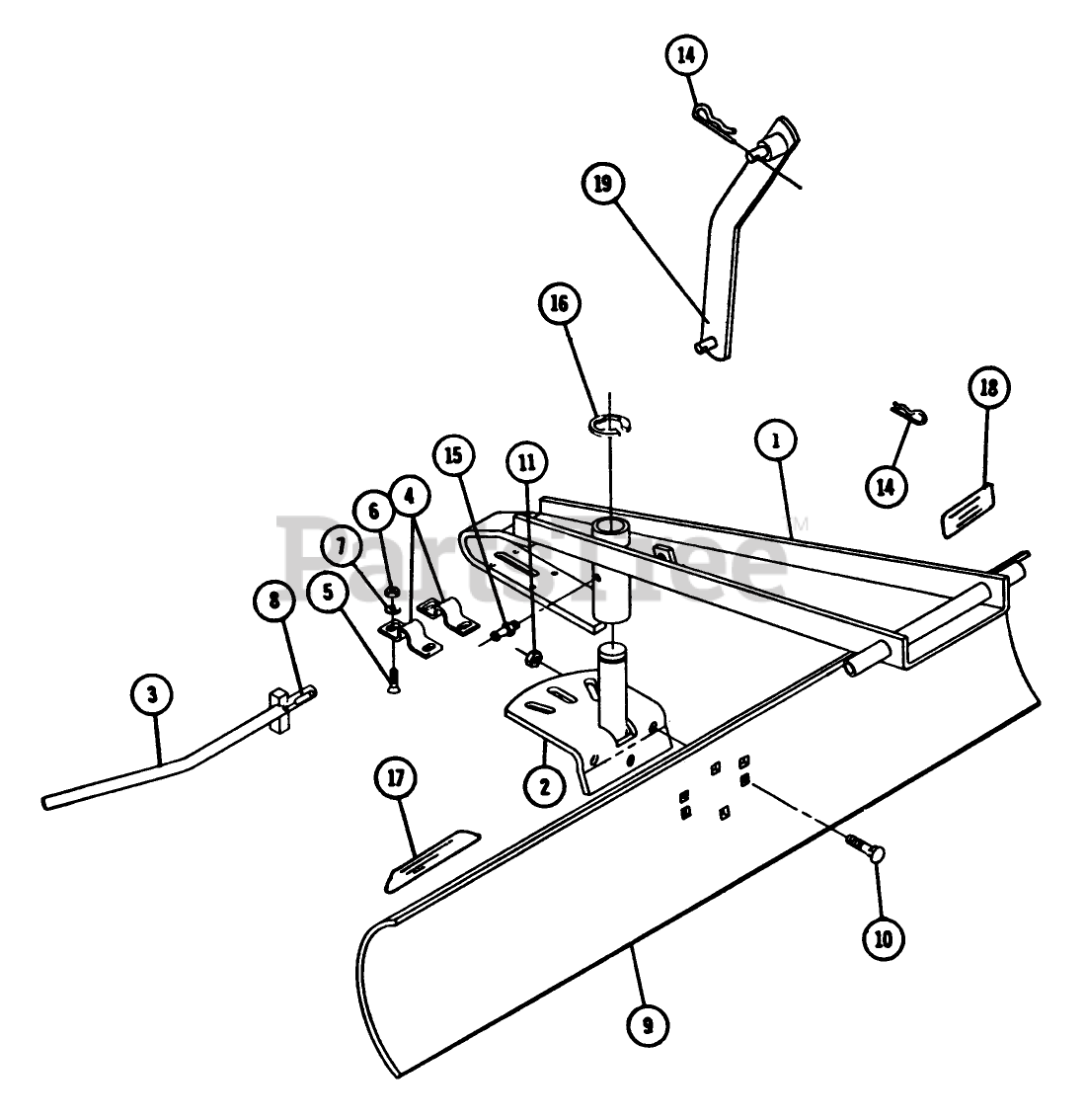

PARTS LIST-MID-MOUNTED GRADER BLADE FACTORY ORDER NUMBER 7-1113 Parts Diagram

  • Title

1

Toro 8835

Frame Assembly

$

$

Not available

2

Toro 8838

Blade Support

$

$

Not available

3

Toro 101905

Rod-Angle Adjustment

$

$

Not available

4

Toro 6532

Bracket

$

$

Not available

5

Toro 905054-4

Screw 1/4-20 x 5/8 Mach. Rd. Hd. Slotted

$

$

Currently unavailable

6

Toro 915661-4

Nut, 1/4-20

$

$

Currently unavailable

7

Toro 920205-4

Washer

$

$

Currently unavailable

8

Toro 933154

PIN-ROLL

$9.49

$

In Stock, only 1 left!

0

9

Toro 5680

Blade

$

$

Not available

10

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

11

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

13

Toro 932962-4

Pin

$

$

Currently unavailable

14

Toro 933505-4

Hairpin

$

$

Currently unavailable

15

Toro 1030

Zerk

$

$

Not available

16

Toro 5700

E RING

$4.49

$

Usually ships in 3-6 days

0

17

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

18

Toro 103161

Surfacing-Die Cut

$

$

Currently unavailable

19

Toro 104357

Lift Link

$

$

Not available
