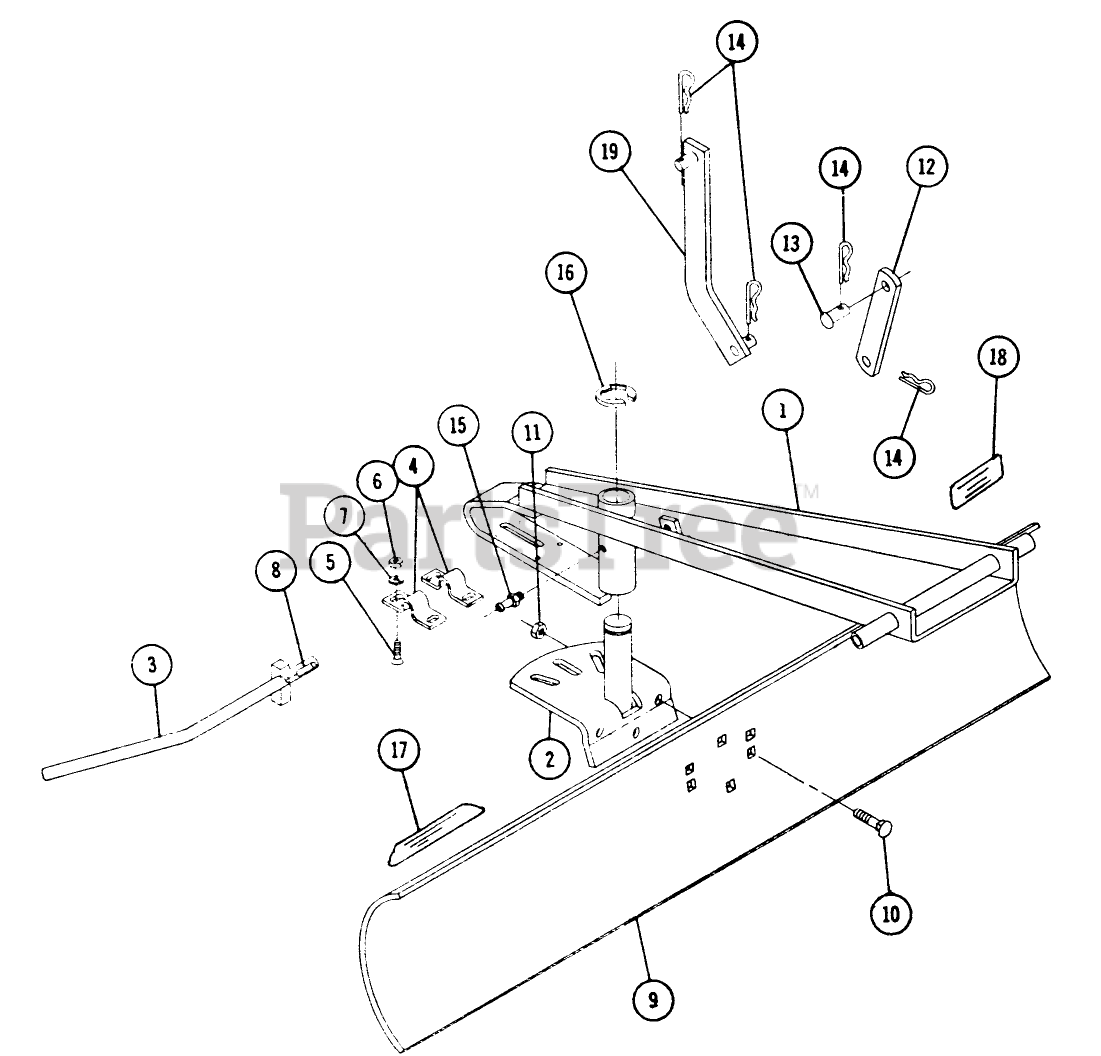

7-1112 - Toro 40" Grader Blade (1969) PARTS LIST FOR 7-1112 MID-MOUNTED GRADER BLADE Parts Diagram

40" Grader Blade

PARTS LIST FOR 7-1112 MID-MOUNTED GRADER BLADE Parts Diagram

  • Title

1

Toro 8835

Frame Assembly

$

$

Not available

2

Toro 8838

Blade Support

$

$

Not available

3

Toro 8832

Rod-Angle Adjustment

$

$

Not available

4

Toro 6532

Bracket

$

$

Not available

5

Toro 905054-4

Screw 1/4-20 x 5/8 Mach. Rd. Hd. Slotted

$

$

Currently unavailable

6

Toro 915661-4

Nut, 1/4-20

$

$

Currently unavailable

7

Toro 920205-4

Washer

$

$

Currently unavailable

8

Toro 933152

Pin-Roll
(Superseded to 32121-50)

$3.49

$

In Stock, only 3 left!

0

9

Kohler 5680

Blade

$

$

Not available

10

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

11

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

12

Toro 8840

Lift Link-Vertical Engine Shaft Tractor

$

$

Currently unavailable

13

Toro 98-962-4

Pin

$

$

Currently unavailable

14

Toro 933504-4

Hairpin

$

$

Currently unavailable

15

Toro 1030

Zerk

$

$

Not available

16

Kohler 5700

E RING

$

$

Not available

17

Toro 5604

Decal
(Superseded to 83-3410)

$

$

Not available

18

Toro 5654

Decal Safety First

$

$

Currently unavailable

19

Toro 5678

Ass-y. Lift Link

$

$

Not available
