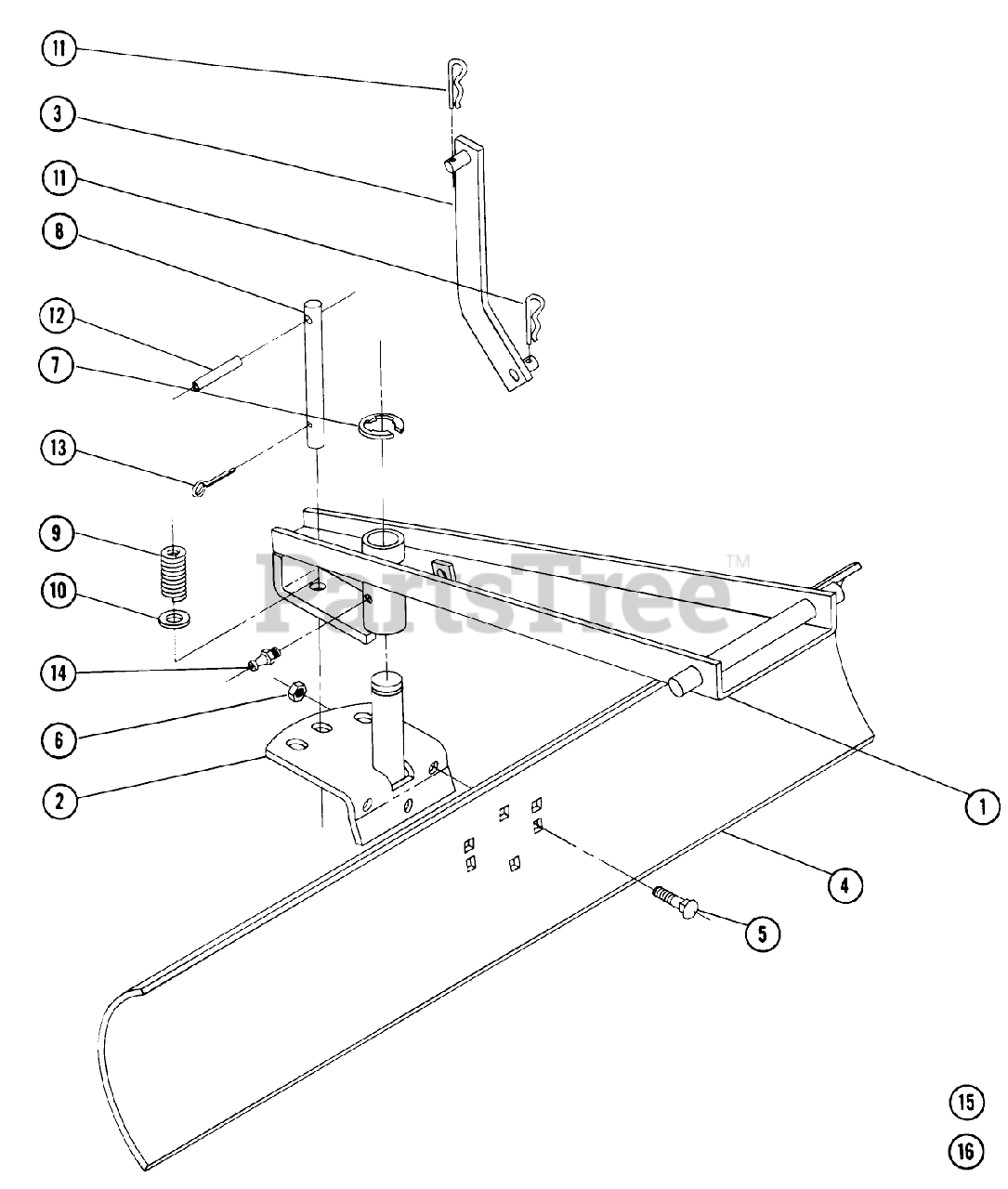

7-1111 - Toro 40" Grader Blade (1968) MID MOUNTED GRADER BLADE MODEL 7-1111 (FORMERLY MB-405) Parts Diagram

40" Grader Blade

MID MOUNTED GRADER BLADE MODEL 7-1111 (FORMERLY MB-405) Parts Diagram

  • Title

1

Toro 5671

Ass-y. Frame

$

$

Currently unavailable

2

Toro 5675

Ass-y. Blade Support

$

$

Currently unavailable

3

Toro 5678

Ass-y. Lift Link

$

$

Not available

4

Toro 5680

Blade

$

$

Not available

5

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

6

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

7

Toro 5700

E RING

$4.49

$

Usually ships in 3-6 days

0

8

Toro 5682

Pin-Pawl

$

$

Currently unavailable

9

Toro 5683

Spring-Compression

$

$

Currently unavailable

10

Toro 920013-4

Washer, 5/8

$

$

Currently unavailable

11

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

12

Toro 933223

Roll Pin 1/4 x 2 1/2

$

$

Not available

13

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

14

Toro 1030

Zerk

$

$

Not available

15

Toro 5684

Decal-"Safety First"

$

$

Currently unavailable

16

Toro 5604

Decal
(Superseded to 83-3410)

$

$

Not available
