159cc Engine

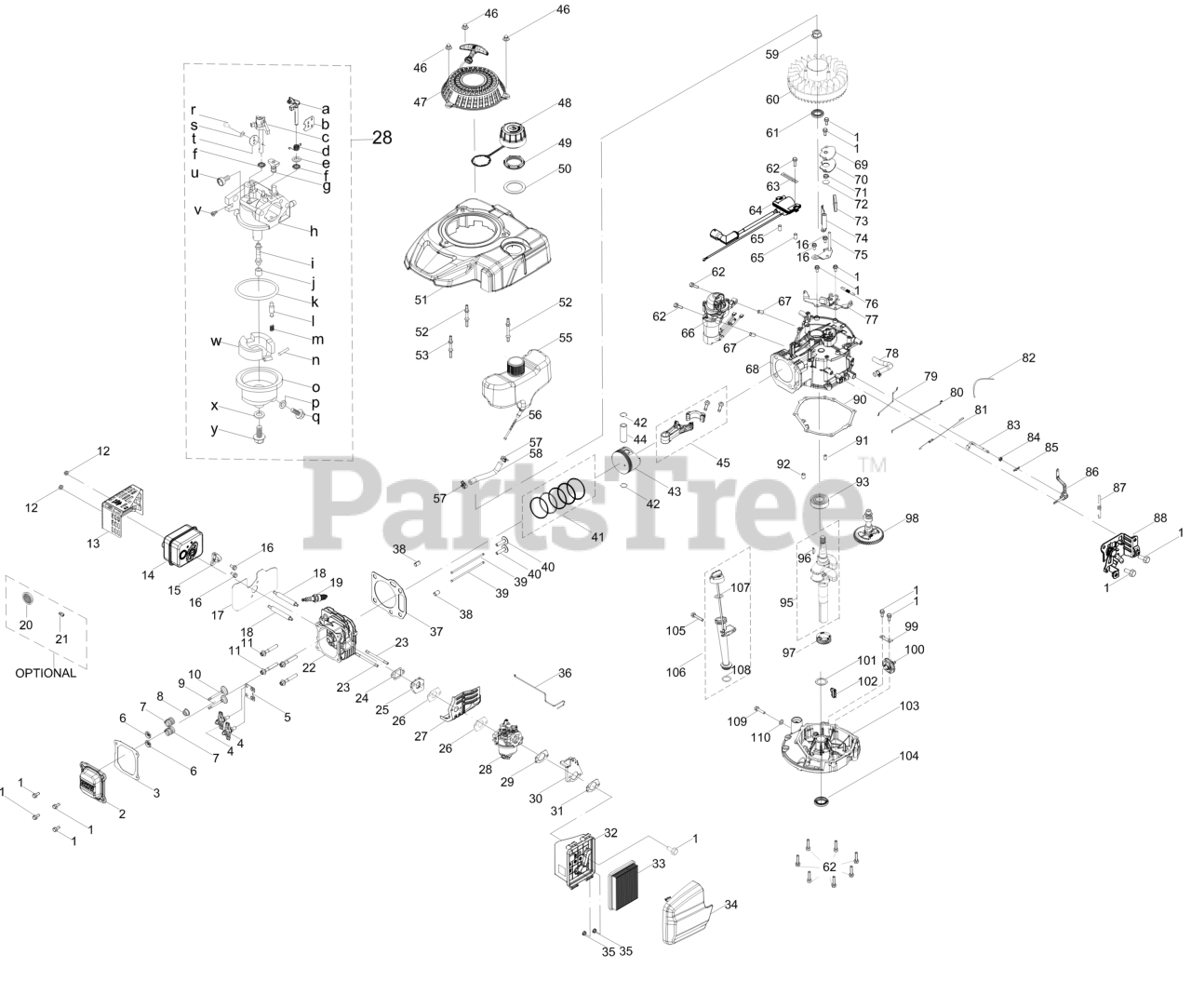

6X65QUA General Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, Qty 12

0

2

Troy-Bilt 951-14609

VALVE COVER
(Superseded to 951-14609A)

$16.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 751P18586

VALVE COVER GASKET
(Superseded to 751P18586A)

$4.49

$

In Stock, Qty 11

0

4

Troy-Bilt 951-11606

ROCKER ARM ASSEMBLY

$40.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 951-11687

PUSH ROD GUIDE

$7.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 951-11977

VALVE SPRING RETAINER

$4.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 951-12004

VALVE SPRING
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

8

Troy-Bilt 921-04237

INTAKE VALVE SEAL
(Superseded to 921-04237A)

$8.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 951-14641

EXHAUST VALVE
(Superseded to 951-14641A)

$9.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 951-14640

INTAKE VALVE
(Superseded to 951-14640A)

$9.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 910-06185

BOLT-M8 x 54

$6.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 951-15701

MUFFLER SIDE SHIELD

$37.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 951-15700

MUFFLER ASSEMBLY

$38.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 951-14428

THERMOSTAT
(Superseded to 951-14428A)

$41.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 751P18909

MUFFLER GASKET
(Superseded to 751P18909A)

$6.49

$

In Stock, only 2 left!

0

18

Troy-Bilt 710-06423

STUD M6-1 x 98

$4.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 951-14437

SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 951-10351

SPARK ARRESTOR
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 710-04983

SCREW M3.5 x 9.5

$3.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 951-14639

CYLINDER HEAD

$123.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 951-15580

STUD M6 x 90

$5.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 751P18606

CARBURETOR INSULATOR GASKET

$

$

Not available

25

Troy-Bilt 951-11738

CARBURETOR INSULATOR
(Superseded to 951-11738A)

$5.49

$

In Stock, only 1 left!

0

26

Troy-Bilt 721P05941

CARBURETOR GASKET
(Superseded to 721P05941A)

$3.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 751P18991

CARBURETOR HEAT SHIELD

$6.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 651P06895

CARBURETOR

$62.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 721P05942

AIR FILTER BRACKET GASKET
(Superseded to 721P05942A)

$5.99

$

In Stock, Qty 6

0

30

Troy-Bilt 908-05265

AIR FILTER BRACKET

$9.49

$

Usually ships in 3-6 days

0

31

Troy-Bilt 951-14419

AIR FILTER BASE GASKET
(Superseded to 951-14419A)

$8.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 931-12769

AIR FILTER BASE

$13.99

$

In Stock, Qty 9

0

33

Troy-Bilt 951-15245

AIR FILTER

$14.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 490-200-C065

Cub Cadet AIR FILTER

Note: Retail Packaged Part

$14.99

$

In Stock, Qty 5

0

33

Troy-Bilt 490-200-M065

Genuine Factory Parts AIR FILTER
(Superseded to 490-200-Y065)

Note: Retail Packaged Part

$14.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 931-12768

AIR FILTER COVER
(Superseded to 931-12768A)

$11.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 951-14421

CHOKE TEMP CONTROL LINKAGE

$

$

Not available

37

Troy-Bilt 751P18607

CYLINDER HEAD GASKET
(Superseded to 751P18607A)

$4.99

$

In Stock, only 4 left!

0

38

Troy-Bilt 715-04108

DOWEL PIN

$4.49

$

In Stock, only 1 left!

0

39

Troy-Bilt 747-04862

PUSH ROD

$6.49

$

In Stock, Qty 6

0

40

Troy-Bilt 951-14432

TAPPET
(Superseded to 951-14432A)

$8.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 951-14433

PISTON RING SET
(Superseded to 951-14433A)

$39.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 951-11603

SNAP RING-PISTON PIN

$4.49

$

Usually ships in 3-6 days

0

43

Troy-Bilt 951-14434

PISTON
(Superseded to 951-14434A)

$64.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 951-14435

PISTON PIN

$12.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 951-14436

CONNECTING ROD ASSEMBLY

$

$

Not available

46

Troy-Bilt 712-04276

ACORN NUT
(Superseded to 712-04276A)

$6.49

$

In Stock, Qty 12

0

47

Troy-Bilt 951-05360

RECOIL STARTER ASSEMBLY
(Superseded to 951-05360A)

$57.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 951-15255

FUEL CAP W/TETHER
(Superseded to 951-15255A)

$26.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 931-10290

FUEL TANK NUT

$6.49

$

Usually ships in 3-6 days

0

50

Troy-Bilt 951-14406

FUEL TANK UPPER GROMMET

$12.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 631-05436

ENGINE SHROUD W/O IGNITION SWITCH

$36.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 951-14397

STARTER/SHROUD REAR STUD

$9.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 951-14819

STARTER SHROUD FRONT STUD M6X74

$8.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 931-12771

FUEL TANK
(Superseded to 931-12771A)

$49.99

$

In Stock, only 3 left!

0

56

Troy-Bilt 951-12296

FUEL FILTER
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 490-202-M006

Genuine Factory Parts FUEL FILTER

Note: Retail Packaged Part

$6.99

$

In Stock, Qty 11

0

57

Troy-Bilt 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

58

Troy-Bilt 935-05215

FUEL HOSE
(Superseded to 935-05215A)

$13.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 712-04287

FLYWHEEL NUT

$6.99

$

In Stock, only 1 left!

0

60

Troy-Bilt 951-15491

FLYWHEEL ASSEMBLY

$101.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 951-11596

CRANKSHAFT SEAL

$6.49

$

In Stock, only 1 left!

0

62

Troy-Bilt 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

Usually ships in 3-6 days

0

63

Troy-Bilt 951-11622

FLEXIBLE CLAMP
(Superseded to 951-11622A)

$3.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 925-07167

IGNITION COIL ASSEMBLY

$81.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 950-06314

IGNITION COIL SPACER

$6.49

$

Usually ships in 3-6 days

0

66

Troy-Bilt 951-05534

ELECTRIC STARTER ASSEMBLY

$187.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 715-04088

DOWEL PIN
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

68

Troy-Bilt 751-19015

CRANKCASE
(Superseded to 751P19015)

$85.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 951-14404

BREATHER COVER PLATE

$14.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 951-14405

BREATHER GASKET

$10.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 732-04718

BREATHER VALVE SPRING

$4.49

$

In Stock, only 1 left!

0

72

Troy-Bilt 951-11614

BREATHER VALVE

$4.49

$

In Stock, only 1 left!

0

73

Troy-Bilt 951-11730

BREATHER SCREEN

$5.49

$

Usually ships in 3-6 days

0

74

Troy-Bilt 951-11529

AIR VANE
(Superseded to 951-11529A)

$7.49

$

Usually ships in 3-6 days

0

75

Troy-Bilt 751P18911

AIR VANE BRACKET

$5.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 932-05566

ENGINE BRAKE SPRING
(Superseded to 932-05566A)

$4.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 951-05533

ENGINE BRAKE ASSEMBLY

$37.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 951-15567

BREATHER HOSE ASSEMBLY

$5.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 951-15702

CHOKE LINKAGE

$4.99

$

In Stock, only 1 left!

0

80

Troy-Bilt 951-14721

THROTTLE LINKAGE

$6.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 732-05188

THROTTLE LINKAGE SPRING
(Superseded to 732P05188A)

$6.99

$

In Stock, only 2 left!

0

82

Troy-Bilt 725-06031

CABLE TIE - 3 x 150

$2.49

$

Usually ships in 3-6 days

0

83

Troy-Bilt 951-11621

GOVERNOR ARM SHAFT

$9.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 951-11902

GOVERNOR SEAL
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

85

Troy-Bilt 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

86

Troy-Bilt 951-05160A

GOVERNOR ARM ASSEMBLY

$6.49

$

In Stock, only 1 left!

0

87

Troy-Bilt 951-14718

GOVERNOR SPRING

$

$

Not available

88

Troy-Bilt 951-15703

TWO SPEED THROTTLE CONTROL

$29.99

$

Usually ships in 3-6 days

0

90

Troy-Bilt 751P18609

CRANKCASE COVER GASKET
(Superseded to 751P18609A)

$5.99

$

In Stock, only 1 left!

0

91

Troy-Bilt 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

92

Troy-Bilt 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

93

Troy-Bilt 951-11369

BEARING

$34.99

$

Usually ships in 3-6 days

0

95

Troy-Bilt 751P19128

CRANKSHAFT

$85.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

97

Troy-Bilt 931-10288

CRANKSHAFT TIMING GEAR
(Superseded to 931-10288A)

$9.49

$

Usually ships in 3-6 days

0

98

Troy-Bilt 951-11741

CAMSHAFT ASSEMBLY

$66.99

$

Usually ships in 3-6 days

0

99

Troy-Bilt 951-11609

GOVERNOR GEAR MOUNTING PLATE

$5.49

$

Usually ships in 3-6 days

0

100

Troy-Bilt 951-05336

GOVERNOR GEAR/SHAFT ASSEMBLY
(Superseded to 951-05336A)

$8.99

$

Usually ships in 3-6 days

0

101

Troy-Bilt 736-04491

THRUST WASHER

$4.49

$

Usually ships in 3-6 days

0

102

Troy-Bilt 951-11733

OIL RETURN SEAL

$4.99

$

Usually ships in 3-6 days

0

103

Troy-Bilt 951-14418

CRANKCASE COVER

$

$

Not available

104

Troy-Bilt 951-11545

LOWER CRANKSHAFT SEAL
(Superseded to 951-11545A)

$10.99

$

In Stock, Qty 10

0

105

Troy-Bilt 710-04980

BOLT M6-1 x 35 GR8.8

$3.99

$

In Stock, only 1 left!

0

106

Troy-Bilt 951-05438

OIL DIPSTICK ASSEMBLY

$13.99

$

In Stock, only 1 left!

0

107

Troy-Bilt 921-04795

O-RING
(Superseded to 921-04795A)

$3.99

$

Usually ships in 3-6 days

0

108

Troy-Bilt 921-04697

O-RING

$3.49

$

Usually ships in 3-6 days

0

109

Troy-Bilt 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, Qty 12

0

110

Troy-Bilt 736-04440

WASHER
(Superseded to 736-04440A)

$6.99

$

In Stock, only 1 left!

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Throttle Shaft

$

$

Not available

d

Choke Return Spring

$

$

Not available

e

Troy-Bilt 736-04556

WASHER

$4.49

$

Usually ships in 3-6 days

0

f

Throttle/Choke Shaft Fiber O-Ring

$

$

Not available

g

Idle Jet Assembly

$

$

Not available

h

Carburetor Body

$

$

Not available

i

Emulsion Tube

$

$

Not available

j

Main Jet

$

$

Not available

k

Troy-Bilt 951-11589

FUEL BOWL O-RING
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

l

Troy-Bilt 793P00165

NEEDLE VALVE
(Superseded to 793P00165A)

$4.99

$

In Stock, Qty 11

0

m

Troy-Bilt 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

n

Troy-Bilt 711-06043

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

o

Troy-Bilt 908-05001

FLOAT BOWL

$8.49

$

In Stock, only 1 left!

0

p

Troy-Bilt 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

q

Troy-Bilt 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, Qty 10

0

r

Screw M3×6 Throttle Plate

$

$

Not available

S

Throttle Plate Lock Washer

$

$

Not available

t

Throttle Plate

$

$

Not available

u

Idle Speed Adjusting Screw

$

$

Not available

v

Idle Mixture Screw

$

$

Not available

w

Float

$

$

Not available

x

Troy-Bilt 751-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

y

Troy-Bilt 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, Qty 13

0

Troy-Bilt 752Z6X65QUA

COMPLETE ENGINE 159cc
(Superseded to 952Z6X65QUA)

$

$

Not available
