159cc Engine

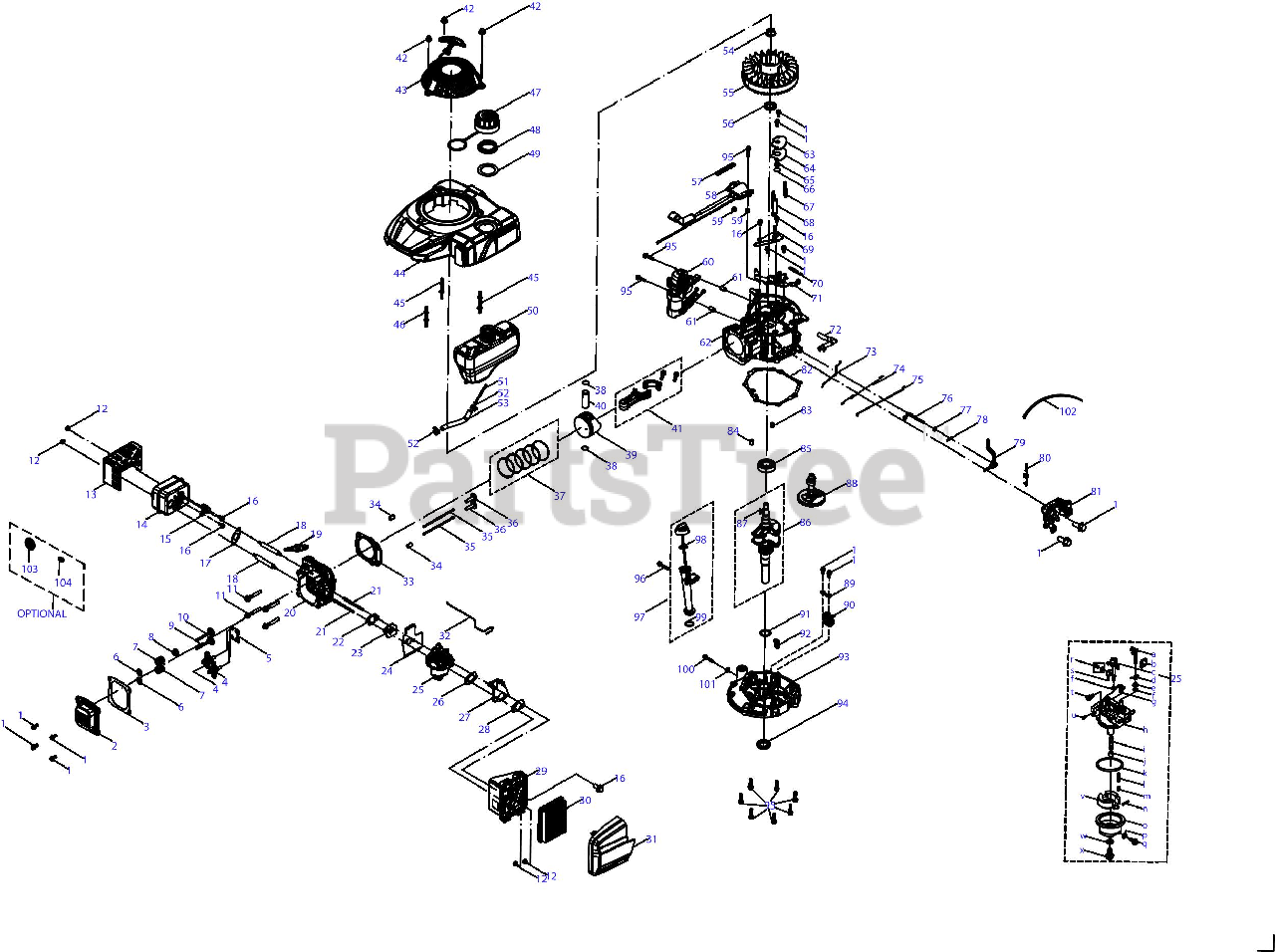

6X65QU General Assembly Parts Diagram

  • Title

1

MTD 710-04916

Bolt M6x14

$4.49

$

In Stock, Qty 12

0

2

MTD 951-14609

Valve Cover
(Superseded to 951-14609A)

$16.99

$

Usually ships in 3-6 days

0

3

MTD 951-11551

Valve Cover Gasket

$10.99

$

In Stock, Qty 11

0

4

MTD 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

5

MTD 951-11687

Push Rod Guide

$7.49

$

Usually ships in 3-6 days

0

6

MTD 951-11977

Valve Spring Retainer

$4.49

$

In Stock, only 2 left!

0

7

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

8

MTD 921-04237

Intake Valve Seal
(Superseded to 921-04237A)

$8.49

$

Usually ships in 3-6 days

0

9

MTD 951-14641

Exhaust Valve
(Superseded to 951-14641A)

$9.99

$

Usually ships in 3-6 days

0

10

MTD 951-14640

Intake Valve
(Superseded to 951-14640A)

$9.99

$

Usually ships in 3-6 days

0

11

MTD 910-06185

Bolt M8x54 Cylinder Head

$6.99

$

Usually ships in 3-6 days

0

12

MTD 712-05015

Nut M6X10

$6.99

$

In Stock, Qty 20+

0

13

MTD 951-15701

Muffler Shield

$37.99

$

Usually ships in 3-6 days

0

14

MTD 951-15700

Muffler Assembly

$38.99

$

Usually ships in 3-6 days

0

15

MTD 951-14428

Choke Thermal Control
(Superseded to 951-14428A)

$41.99

$

Usually ships in 3-6 days

0

16

MTD 710-04915

Bolt M6x12

$4.49

$

In Stock, Qty 20+

0

17

MTD 951-14427

Muffler Gasket
(Superseded to 951-14427A)

$7.49

$

In Stock, Qty 20+

0

18

MTD 710-06423

Muffler Stud M6x98

$4.99

$

Usually ships in 3-6 days

0

19

MTD 951-14437

Spark Plug/F5RTC

$8.49

$

In Stock, Qty 20+

0

20

MTD 951-14639

Cylinder Head

$123.99

$

Usually ships in 3-6 days

0

21

MTD 951-14425

Carb Stud M6x87

$7.49

$

Usually ships in 3-6 days

0

22

MTD 951-11528

Carburetor Insulator Gasket

$4.49

$

In Stock, Qty 20+

0

23

MTD 951-11738

Carburetor Insulator
(Superseded to 951-11738A)

$5.49

$

In Stock, only 1 left!

0

24

MTD 951-14424

Carburetor Gasket

$10.99

$

In Stock, only 1 left!

0

25

MTD 951-05531

Carburetor Assembly

$99.99

$

In Stock, only 2 left!

0

26

MTD 951-14422

Air Filter Bracket Gasket

$7.99

$

In Stock, Qty 20+

0

27

MTD 908-05265

Air Filter Bracket

$9.49

$

Usually ships in 3-6 days

0

28

MTD 951-14419

Air Filter Base Gasket
(Superseded to 951-14419A)

$8.49

$

Usually ships in 3-6 days

0

29

MTD 931-12769

Air Filter Base

$13.99

$

In Stock, Qty 9

0

30

MTD 951-15245

Air Filter Element, Paper

$14.99

$

In Stock, Qty 20+

0

31

MTD 931-12768

Air Filter Cover
(Superseded to 931-12768A)

$11.99

$

In Stock, only 1 left!

0

32

MTD 951-14421

Temp Control Linkage

$

$

Not available

33

MTD 951-14431

Cylinder Head Gasket

$16.99

$

In Stock, only 1 left!

0

34

MTD 715-04108

Cylinder Head Dowel Pin 10x16

$4.49

$

In Stock, only 1 left!

0

35

MTD 747-04862

Push Rod

$6.49

$

In Stock, Qty 6

0

36

MTD 951-14432

Tappet
(Superseded to 951-14432A)

$8.99

$

Usually ships in 3-6 days

0

37

MTD 951-14433

Piston Ring Set
(Superseded to 951-14433A)

$39.99

$

In Stock, only 1 left!

0

38

MTD 951-11603

Piston Pin Snap Ring

$4.49

$

Usually ships in 3-6 days

0

39

MTD 951-14434

Piston
(Superseded to 951-14434A)

$64.99

$

Usually ships in 3-6 days

0

40

MTD 951-14435

Piston Pin

$12.99

$

Usually ships in 3-6 days

0

41

MTD 951-14436

Connecting Rod Assembly

$

$

Not available

42

MTD 712-04276

Starter Acorn Nut
(Superseded to 712-04276A)

$6.49

$

In Stock, Qty 12

0

43

MTD 951-05360

Starter Recoil Assembly
(Superseded to 951-05360A)

$57.99

$

In Stock, only 1 left!

0

44

MTD 631-05436

Engine Shroud Assembly

$36.99

$

Usually ships in 3-6 days

0

45

MTD 951-14397

Shroud Stud M6x78.5

$9.99

$

In Stock, only 1 left!

0

46

MTD 951-14819

Shroud Stud M6x74

$8.99

$

Usually ships in 3-6 days

0

47

MTD 951-15255

Fuel Cap Assembly
(Superseded to 951-15255A)

$26.99

$

In Stock, only 1 left!

0

48

MTD 931-10290

Fuel Tank Nut

$6.49

$

Usually ships in 3-6 days

0

49

MTD 951-14406

Fuel Tank Upper Grommet

$12.99

$

Usually ships in 3-6 days

0

50

MTD 931-12771

Fuel Tank
(Superseded to 931-12771A)

$49.99

$

In Stock, only 3 left!

0

51

MTD 951-12296

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

52

MTD 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

53

MTD 935-05215

Fuel Hose
(Superseded to 935-05215A)

$13.99

$

Usually ships in 3-6 days

0

54

MTD 712-04287

Flywheel Nut M14

$6.99

$

In Stock, only 1 left!

0

55

MTD 951-15491

Flywheel

$101.99

$

Usually ships in 3-6 days

0

56

MTD 951-11596

Upper Crankshaft Seal

$6.49

$

In Stock, only 1 left!

0

57

MTD 951-11622

Flexible Clamp
(Superseded to 951-11622A)

$3.99

$

Usually ships in 3-6 days

0

58

MTD 925-07167

Ignition Coil Assembly

$81.99

$

Usually ships in 3-6 days

0

59

MTD 950-06314

Ignition Coil Spacer

$6.49

$

Usually ships in 3-6 days

0

60

MTD 951-05534

Electric Starter Assembly (69:12)

$187.99

$

Usually ships in 3-6 days

0

61

MTD 715-04088

Starter Housing Dowel Pin 8x8
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

62

MTD 951-14720

Crankcase

$166.99

$

Usually ships in 3-6 days

0

63

MTD 951-14404

Breather Cover Plate

$14.99

$

Usually ships in 3-6 days

0

64

MTD 951-14405

Breather Gasket

$10.99

$

Usually ships in 3-6 days

0

65

MTD 732-04718

Breather Valve Spring

$4.49

$

In Stock, only 1 left!

0

66

MTD 951-11614

Breather Valve

$4.49

$

In Stock, only 1 left!

0

67

MTD 951-11730

Breather Screen

$5.49

$

Usually ships in 3-6 days

0

68

MTD 951-11529

Air Vane
(Superseded to 951-11529A)

$7.49

$

Usually ships in 3-6 days

0

69

MTD 951-14719

Air Vane Bracket

$8.49

$

Usually ships in 3-6 days

0

70

MTD 932-05566

Brake Spring
(Superseded to 932-05566A)

$4.99

$

Usually ships in 3-6 days

0

71

MTD 951-05533

Brake Assembly

$37.99

$

Usually ships in 3-6 days

0

72

MTD 951-15567

Breather Hose Assembly

$5.99

$

Usually ships in 3-6 days

0

73

MTD 951-15702

Choke Linkage

$4.99

$

In Stock, only 1 left!

0

74

MTD 951-14409

Throttle Linkage Spring

$8.99

$

In Stock, only 2 left!

0

75

MTD 951-14721

Throttle Linkage

$6.99

$

Usually ships in 3-6 days

0

76

MTD 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

$9.99

$

Usually ships in 3-6 days

0

77

MTD 951-11574

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

78

MTD 714-04078

Governor Arm Shaft Cotter Pin

$4.49

$

In Stock, only 1 left!

0

79

MTD 951-05160A

Governor Arm Assembly

$6.49

$

In Stock, only 1 left!

0

80

MTD 951-14718

Governor Spring

$

$

Not available

81

MTD 951-15703

Throttle Control, Two Speed

$29.99

$

Usually ships in 3-6 days

0

82

MTD 951-14415

Crankcase Cover Gasket

$14.99

$

In Stock, Qty 14

0

83

MTD 715-04092

Crankcase Cover Dowel Pin 7x14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

84

MTD 715-04096

Crankcase Cover Dowel Pin 9x14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

85

MTD 951-11369

Main Bearing

$34.99

$

Usually ships in 3-6 days

0

86

MTD 951-14417

Crankshaft Assembly

$212.99

$

Usually ships in 3-6 days

0

87

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

88

MTD 951-15571

Camshaft Assembly

$40.99

$

Usually ships in 3-6 days

0

89

MTD 951-11609

Governor Gear Mounting Plate

$5.49

$

Usually ships in 3-6 days

0

90

MTD 951-05336

Governor Gear/Shaft Assembly
(Superseded to 951-05336A)

$8.99

$

Usually ships in 3-6 days

0

91

MTD 736-04491

Crankshaft Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

92

MTD 951-11733

Oil Return Seal

$4.99

$

Usually ships in 3-6 days

0

93

MTD 951-14418

Crankcase Cover

$

$

Not available

94

MTD 951-11545

Lower Crankshaft Seal
(Superseded to 951-11545A)

$10.99

$

In Stock, Qty 10

0

95

MTD 710-04943

Bolt M6x28

$4.49

$

Usually ships in 3-6 days

0

96

MTD 710-04980

Bolt M6x35

$3.99

$

In Stock, only 1 left!

0

97

MTD 951-05438

Dipstick Assembly

$13.99

$

In Stock, only 1 left!

0

98

MTD 921-04795

Dipstick / Oil Fill Tube O-Ring
(Superseded to 921-04795A)

$3.99

$

Usually ships in 3-6 days

0

99

MTD 921-04697

Dipstick / Oil Fill Tube O-Ring

$3.49

$

Usually ships in 3-6 days

0

100

MTD 710-04906

Oil Drain Plug

$6.99

$

In Stock, Qty 12

0

101

MTD 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

$6.99

$

In Stock, only 1 left!

0

102

MTD 725-06031

Plastic Tie 150Mm

$2.49

$

Usually ships in 3-6 days

0

103

MTD 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

104

MTD 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

MTD 952Z6X65QU

Complete Engine

$568.99

$

Usually ships in 3-6 days

0

a

MTD n/a

Choke Shaft

$

$

Currently unavailable

b

MTD n/a

Choke Plate

$

$

Currently unavailable

c

MTD n/a

Throttle Shaft

$

$

Currently unavailable

d

MTD n/a

Choke Return Spring

$

$

Currently unavailable

e

MTD 736-04556

Choke Shaft Washer

$4.49

$

Usually ships in 3-6 days

0

f

MTD n/a

Throttle/Choke Shaft Fiber O-Ring

$

$

Currently unavailable

g

MTD n/a

Idle Jet Assembly

$

$

Currently unavailable

h

MTD n/a

Carburetor Body

$

$

Currently unavailable

i

MTD n/a

Emulsion Tube

$

$

Currently unavailable

j

MTD n/a

Main Jet

$

$

Currently unavailable

k

MTD 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

i

MTD n/a

Needle Valve

$

$

Currently unavailable

m

MTD n/a

Needle Valve Spring

$

$

Currently unavailable

n

MTD n/a

Float Pin

$

$

Currently unavailable

o

MTD 908-05001

Fuel Bowl

$8.49

$

In Stock, only 1 left!

0

p

MTD 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

q

MTD 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 10

0

r

MTD n/a

Screw M3x6 Throttle Plate

$

$

Currently unavailable

s

MTD n/a

Throttle Plate

$

$

Currently unavailable

t

MTD n/a

Idle Speed Adjusting Screw

$

$

Currently unavailable

u

MTD n/a

Idle Mixture Screw

$

$

Currently unavailable

v

MTD n/a

Float

$

$

Currently unavailable

w

MTD 951-11348

Fuel Bowl Mounting Bolt Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

x

MTD 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0
