6A1A1 E - Electrolux/AYP Lawn Tractor FRONT AXLE Parts Diagram

Lawn Tractor

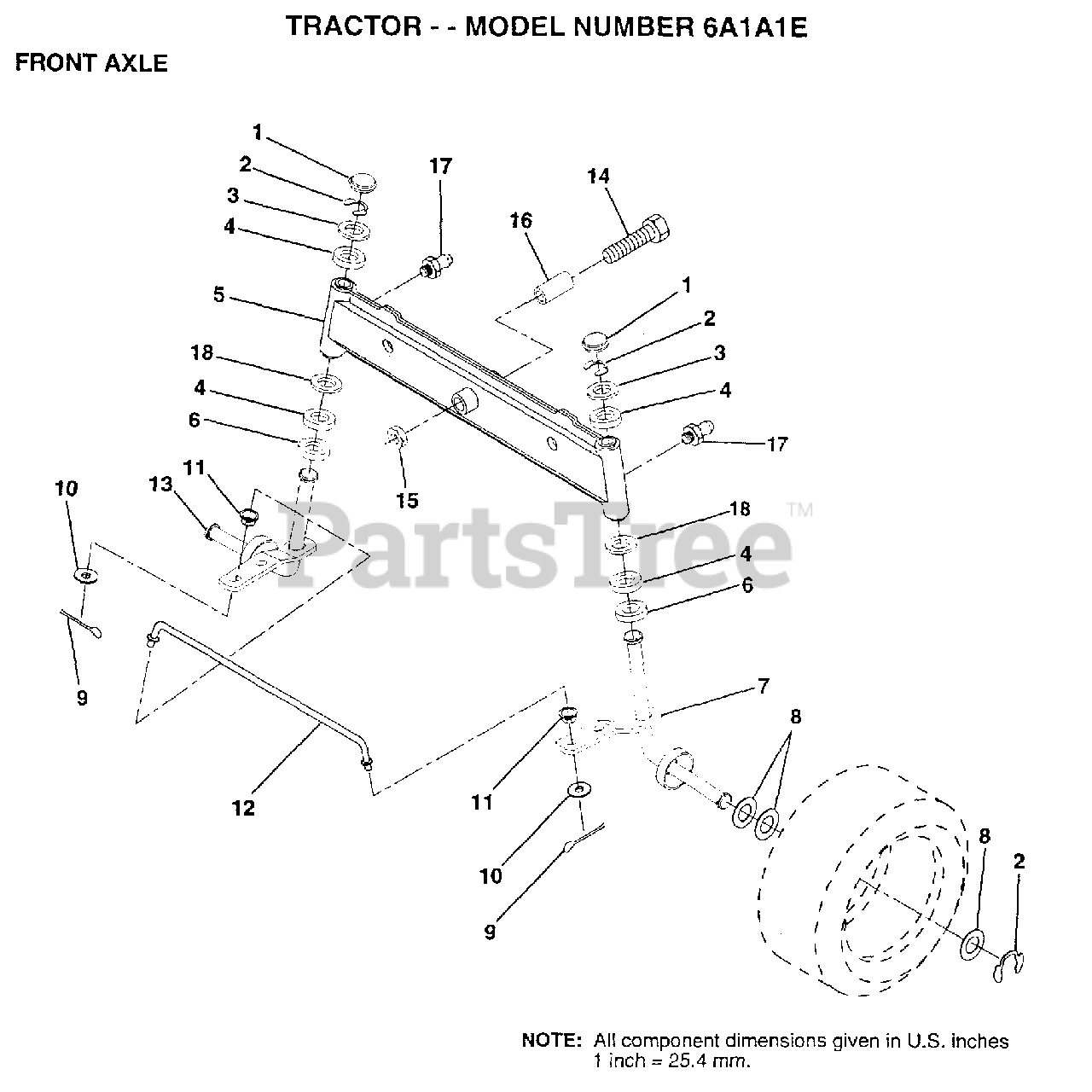

FRONT AXLE Parts Diagram

  • Title
1

Electrolux/AYP 121232X

CAP
(Superseded to 532121232)

$4.99

$

In Stock, Qty 8

0

2

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 142033

AXLE ASM FRONT
(Superseded to 532142033)

$

$

Not available

6

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 10

0

7

Electrolux/AYP 137062

SPINDLE ASM RH
(Superseded to 532137062)

$

$

Not available

8

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 126847X

BUSHING.DRAGLINK
(Superseded to 532126847)

$5.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 130465

TIE ROD
(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 137061

SPINDLE ASM LH
(Superseded to 532137061)

$

$

Not available

14

Electrolux/AYP 74011056

BOLT HEX 5/8-11
(Superseded to 874011056)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 73901000

"NUT-LOC,FLANGE LT"
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 110438X

BEARING
(Superseded to 532110438)

$

$

Not available

17

Electrolux/AYP 6855M

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 19272016

WASHER
(Superseded to 819272016)

$6.49

$

In Stock, only 2 left!

0
