690 I/C (3071082) - Giant-Vac Hard Surface Heavy Duty Lawn Vac, 14.5hp Flip Top Nose Cone Parts Diagram

Hard Surface Heavy Duty Lawn Vac, 14.5hp

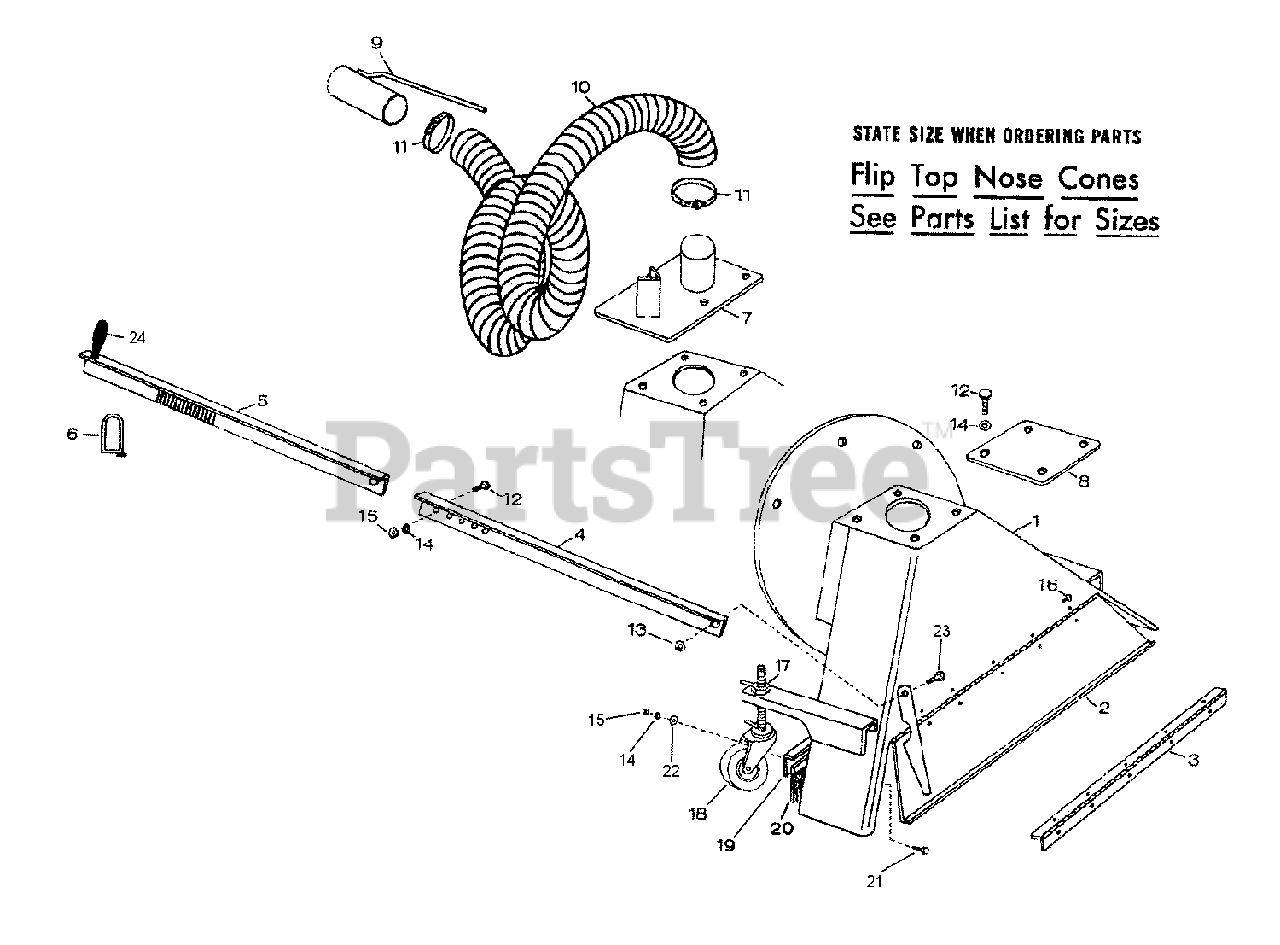

Flip Top Nose Cone Parts Diagram

  • Title

1

Giant-Vac 3027039

FT30 nose cone body

$

$

Currently unavailable

1

Giant-Vac 3027040

FT36 nose cone body

$

$

Currently unavailable

2

Giant-Vac 3027041

Door FT30

$

$

Currently unavailable

2

Giant-Vac 3027042

Door FT36

$

$

Currently unavailable

3

Giant-Vac 3027043

Hinge FT30

$

$

Currently unavailable

3

Giant-Vac 3027044

Hinge FT36

$

$

Currently unavailable

4

Giant-Vac 3023022

Lower adjuster bar

$

$

Not available

5

Giant-Vac 3023023

Upper adjuster bar

$

$

Not available

6

Giant-Vac 3031101

Nut, U-clip – w/5/16-18

$

$

Not available

7

Giant-Vac 3020137

Intake flange and holder 4"

$

$

Currently unavailable

7

3020138

Intake flange and holder 5"

$

$

Not available

7

Giant-Vac 3020111

Intake flange 4"

$

$

Currently unavailable

7

3020112

Intake flange 5"

$

$

Not available

7

Giant-Vac 3020113

Intake flange 6"

$

$

Currently unavailable

7

3020115

Intake flange 8"

$

$

Not available

8

Giant-Vac 3027045

Cover plate

$

$

Not available

9

Giant-Vac 3020145

Intake nozzle 4"

$

$

Currently unavailable

9

Giant-Vac 3020146

Intake nozzle 5"

$

$

Not available

9

Giant-Vac 3020147

Intake nozzle 6"

$

$

Not available

9

Giant-Vac 3020149

Intake nozzle 8"

$

$

Currently unavailable

10

Giant-Vac 3034002

Intake hose 4"

$

$

Currently unavailable

10

Giant-Vac 3034003

Intake hose 5"

$

$

Currently unavailable

11

Giant-Vac 3034011

Hose clamp 4"

$

$

Currently unavailable

11

Giant-Vac 3034012

Hose clamp 5"

$

$

Not available

12

Giant-Vac 3031031

Bolt, 5/16 x 3/4" hex

$

$

Not available

13

Giant-Vac 3031436

Nut, 5/16" lock

$

$

Currently unavailable

14

Giant-Vac 3031003

Washer, 5/16" lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Giant-Vac 3031004

Nut, 5/16" hex
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Giant-Vac 3031100

Rivit, 3/16"

$

$

Not available

17

Giant-Vac 3031038

Nut, 3/4" wing

$

$

Currently unavailable

18

Giant-Vac 3033014

4" caster wheel

$

$

Not available

19

Giant-Vac 3027020

30" brush holder

$

$

Not available

19

Giant-Vac 3027019

36" brush holder

$

$

Currently unavailable

20

Giant-Vac 3027010

30" brush

$

$

Not available

20

Giant-Vac 3027011

36" brush

$

$

Not available

21

Giant-Vac 3031646

Bolt, 5/16-18 x 1-1/4 hex
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

22

Giant-Vac 3031027

Washer, 5/16 flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

23

Giant-Vac 3031016

Bolt, 5/16 x 5/8" hex

$

$

Not available

24

Giant-Vac 3031283

Grip, Handle 1 x 4"
(Superseded to 7024127YP)

$7.49

$

Usually ships in 2-12 days

0
