690 I/C (3071082) - Giant-Vac Hard Surface Heavy Duty Lawn Vac, 14.5hp 690 I/C Hard Surface Vacuum Parts Diagram

Hard Surface Heavy Duty Lawn Vac, 14.5hp

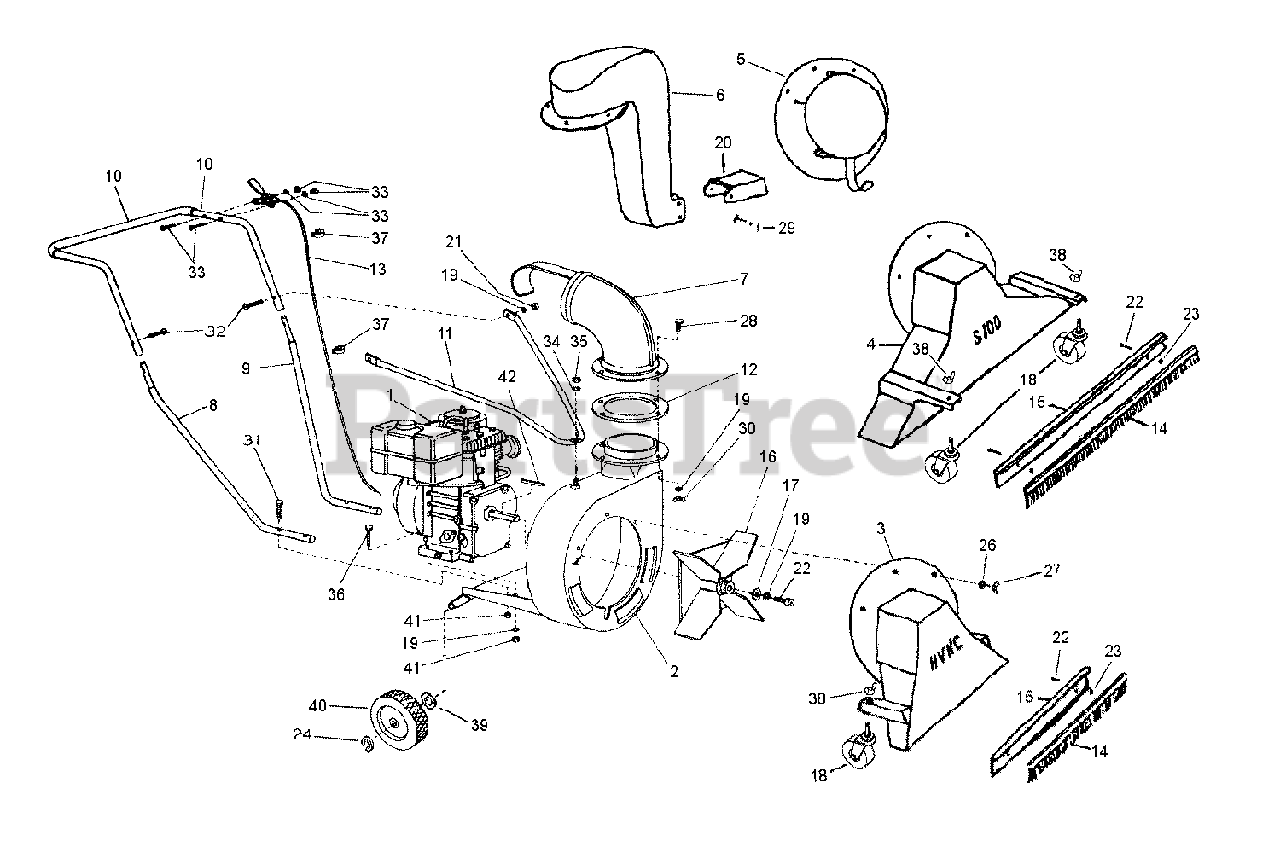

690 I/C Hard Surface Vacuum Parts Diagram

  • Title

1

204312-0181-B1

* Engine, 9 HP B&S Intek

Note: was 205412-0230-B1 or 215312-0301-B1

$

$

Not available

2

Giant-Vac 3010234

Blower housing & engine base

$

$

Not available

3

Giant-Vac 3027017

30HV nose cone body

$

$

Not available

4

Giant-Vac 3027015

S100 nose cone body

$

$

Not available

5

3020102

Intake baffle

$

$

Not available

6

Giant-Vac 3024512

Blower air chute

$

$

Not available

7

Giant-Vac 3024510

Exhaust elbow

$

$

Not available

8

Giant-Vac 3023010

Lower handle right

$

$

Not available

9

Giant-Vac 3023013

Lower handle left

$

$

Not available

10

Giant-Vac 3023009

Upper handle

$

$

Currently unavailable

10

Giant-Vac 1723568

Foam handle cover

Note: was 3031590

$

$

Not available

11

Giant-Vac 3023011

Handle brace

$

$

Not available

12

Giant-Vac 3031105

Gasket, rubber

$

$

Not available

13

Giant-Vac 3035002

Throttle control

$

$

Currently unavailable

14

Giant-Vac 3027011

36" brush - S100

$

$

Not available

14

Giant-Vac 3027010

30" brush - 30HV

$

$

Not available

15

Giant-Vac 3027019

36" brush holder - S100

$

$

Currently unavailable

15

Giant-Vac 3027020

30" brush holder -30HV

$

$

Not available

16

Giant-Vac 3021558

Impeller (complete with Taper-Lok hub & hardware)

$

$

Currently unavailable

17

Giant-Vac 3021559

Hub, Taper-Lok 1-1/8"

$

$

Not available

18

Giant-Vac 3033014

Caster assembly, 4"

$

$

Not available

19

Giant-Vac 7091315

Washer, 5/16 lock
(Superseded to 703116)

Note: was 3031003

$3.49

$

In Stock, Qty 20+

0

20

Giant-Vac 3024513

Blower chute deflector

$

$

Not available

21

Giant-Vac 3031028

Nut, 5/16 acorn

$

$

Currently unavailable

22

Giant-Vac 7091527

Bolt, 5/16-18 x 1-1/4 hex
(Superseded to 7091527YP)

Note: was 3031005

$4.49

$

In Stock, only 4 left!

0

23

Giant-Vac 7091098

Washer, 5/16 flat
(Superseded to 703302)

Note: was 3031027

$4.49

$

In Stock, Qty 20+

0

24

Giant-Vac 3031000

Ring, Snap 5/8"
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

25

3031058

Kit, 3/8" lock washer and nut

$

$

Not available

26

Giant-Vac 3031008

Washer, 3/8 lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

27

Giant-Vac 3031026

Bolt, 3/8" T

$

$

Not available

28

Giant-Vac 3031282

Bolt, 5/16 x 1" hex

$

$

Currently unavailable

29

3031055

Kit, 1/4 x 5/8" bolt, lock washer and nut

$

$

Not available

30

Giant-Vac 3031592

Nut, 5/16-18 wing

$

$

Not available

31

3031057

Kit, 5/16 x 1-3/4" bolt, lock washer and nut

$

$

Not available

32

Giant-Vac 3031056

Bolt, 5/16 x 1-1/2" round slotted head

$

$

Not available

33

Giant-Vac 3031010

Kit, 10-24 x 1-1/2" bolt, lock washer and nut

$

$

Currently unavailable

34

Giant-Vac 3031115

Washer, 3/8 lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

35

Giant-Vac 3031009

Nut, 3/8’ hex
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

36

Giant-Vac 3031002

Bolt, 5/16-18 x 1-3/4 hex (engine mounting)

$

$

Not available

37

Giant-Vac 3031007

Throttle clip

$

$

Currently unavailable

38

Giant-Vac 3031038

Nut, 3/4" wing

$

$

Currently unavailable

39

Giant-Vac 3031001

Washer, 5/8" flat
(Superseded to 1960020SM)

$4.49

$

In Stock, Qty 20+

0

40

Giant-Vac 3033001

Wheel Assy., 4.10/3.50-4
(Superseded to 3033001SM)

$

$

Not available

41

Giant-Vac 7091511

Nut, 5/16-18 hex
(Superseded to 7091511SM)

Note: was 3031004

$3.49

$

In Stock, Qty 20+

0

42

Giant-Vac 3031795

Key, Impeller, 1/4 x 2-1/8"
(Superseded to 703890)

$4.99

$

In Stock, Qty 6

0

--

3024511

Exhaust flange 7" (Not shown)

$

$

Not available

--

Giant-Vac 3000210

Dust control bag (Not shown)

$

$

Not available

--

Giant-Vac 3000510

Liner bag (Not shown)

$

$

Currently unavailable

--

3000710

Polypropylene bag (Not shown)

$

$

Not available
