685 (247-685-100) - Cub Cadet Walk-Behind Blower (1987) B&S 5.0 HP-130212-1731-01 Part 3 Parts Diagram

Walk-Behind Blower

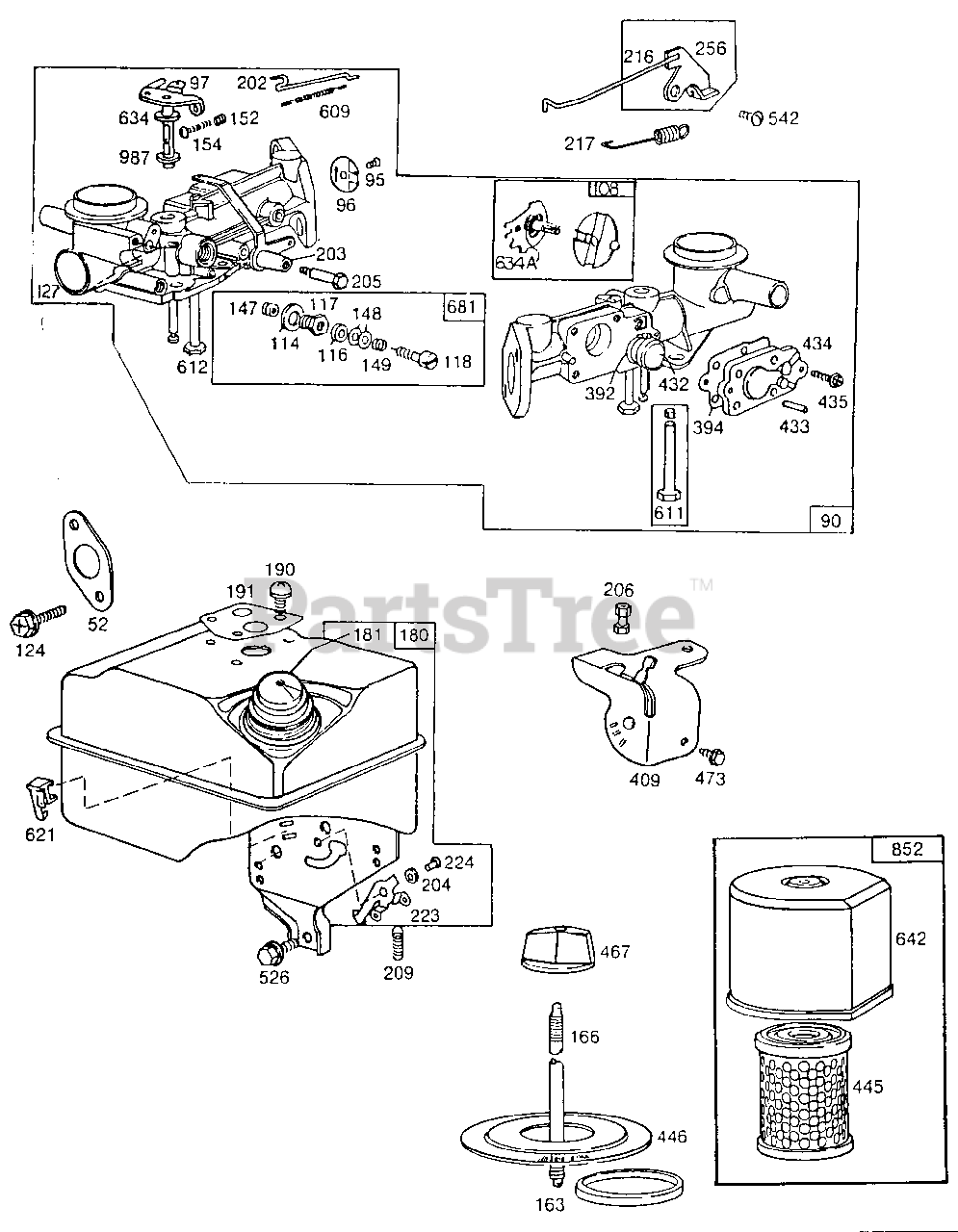

B&S 5.0 HP-130212-1731-01 Part 3 Parts Diagram

  • Title

52

Cub Cadet BS-27355

Gasket-Carburetor Mounting

Note: (Included in Gasket Set - Part No. 397145)

$

$

Not available

90

Cub Cadet BS-397940

Carb. Ass'y.

$

$

Currently unavailable

95

Cub Cadet BS-93499

Screw-Throttle Valve to Shaft Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

96

Cub Cadet BS-211203

Throttle-Carburetor

$

$

Currently unavailable

97

Cub Cadet BS-299212

Shaft and Lever-Throttle

$

$

Not available

108

Cub Cadet BS-397134

Valve Group-Choke

$13.99

$

In Stock, Qty 5

0

114

Cub Cadet BS-66594

Gasket-Needle Valve Nut

$

$

Currently unavailable

116

Cub Cadet BS-65978

Packing-Needle Valve

$5.99

$

In Stock, only 3 left!

0

117

Cub Cadet BS-230590

Nut-Needle Valve

$

$

Not available

118

Cub Cadet BS-23433

Valve-Needle

$

$

Not available

124

Cub Cadet BS-93357

Screw-Hex Head

$

$

Not available

127

Cub Cadet BS-22831

Plug-Welch

$

$

Not available

147

Cub Cadet BS-230591

Seat-Needle Valve

$

$

Not available

148

Cub Cadet BS-22235

Washer-Needle Valve

$

$

Not available

149

Cub Cadet BS-26336

Spring-Needle Valve

$

$

Not available

152

Cub Cadet BS-260575

Spring-Throttle Adjustment

$

$

Currently unavailable

154

Cub Cadet BS-93527

Screw-Machine, Rd. Hd.- 5-40 x 5/8"

$

$

Not available

163

Cub Cadet BS-271139

Gasket-Air Cleaner Mtg.

$

$

Not available

166

Cub Cadet BS-231332

Stud-Air Cleaner

$13.99

$

Usually ships in 2-12 days

0

180

Cub Cadet BS-397137

Tank Assembly-Fuel

$

$

Not available

181

Cub Cadet BS-394818

Cap-Fuel Tank
(Superseded to BS-394818S)

$33.99

$

In Stock, only 1 left!

0

190

Cub Cadet BS-93440

Screw-Fuel Tank Mounting Sem

$

$

Not available

191

Cub Cadet BS-271592

Gasket-Fuel Tank Mounting
(Superseded to BS-272409S)

Note: (Included in Gasket Set - Part No. 397145)

$3.99

$

In Stock, Qty 20+

0

202

Cub Cadet BS-260678

Link-Throttle
(Superseded to BS-691786)

$

$

Not available

203

Cub Cadet BS-393919

Crank-Bell

$

$

Not available

204

Cub Cadet BS-222962

Bushing-Governor Lever (Flat)

$

$

Currently unavailable

205

Cub Cadet BS-93838

Screw-Shoulder

$

$

Not available

206

Cub Cadet BS-280012

Nut-Control Rod

$

$

Currently unavailable

209

Cub Cadet BS-260695

Spring-Governor
(Superseded to BS-796260)

$4.99

$

In Stock, Qty 15

0

216

Cub Cadet BS-397709

Link-Choke (Includes Bell Crank)

$

$

Currently unavailable

217

Cub Cadet BS-261951

Spring-Choke

$

$

Currently unavailable

223

Cub Cadet BS-221517

Lever Governor Control

$

$

Not available

224

Cub Cadet BS-93491

Rivet Governor Control Lever Mounting

$1.49

$

Usually ships in 2-12 days

0

256

Cub Cadet BS-397709

Crank-Bell (Includes Choke Link)

$

$

Currently unavailable

392

Cub Cadet BS-260455

Spring-Fuel Pump Diaphragm

$4.49

$

In Stock, Qty 8

0

394

Cub Cadet BS-270026

Diaphragm

$3.99

$

In Stock, Qty 20+

0

409

Cub Cadet BS-299837

Lever-Trol-Speed Control

$

$

Currently unavailable

432

Cub Cadet BS-221377

Cap-Spring
(Superseded to BS-690766)

$4.99

$

In Stock, only 3 left!

0

433

Cub Cadet BS-93265

Pin-Diaphragm Cover

$

$

Currently unavailable

434

Cub Cadet BS-210959

Cover-Diaphragm
(Superseded to BS-691713)

$10.99

$

In Stock, only 1 left!

0

435

Cub Cadet BS-93141

Screw-Diaphragm Cover

$

$

Not available

445

Cub Cadet BS-396424

Cartridge-Air Cleaner
(Superseded to BS-396424S)

$13.99

$

In Stock, only 3 left!

0

446

Cub Cadet BS-222844

Base-Air Cleaner

$

$

Not available

467

Cub Cadet BS-212706

Knob-Air Cleaner
(Superseded to BS-691668)

$5.49

$

In Stock, only 1 left!

0

473

Cub Cadet BS-93612

Screw-Sem

$

$

Currently unavailable

526

Cub Cadet BS-93343

Screw-Tank Bracket Mounting Sem
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 11

0

542

Cub Cadet BS-94025

Screw

$

$

Currently unavailable

609

Cub Cadet BS-260294

Spring-Throttle Link

$

$

Currently unavailable

611

Cub Cadet BS-391813

Fuel Pipe and Clip Assembly

$

$

Not available

612

Cub Cadet BS-296811

Pipe-Fuel

$

$

Not available

621

Cub Cadet BS-297472

Switch-Stop

$

$

Not available

634

Cub Cadet BS-271853

Washer-Throttle Shaft (Foam)
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

634A

Cub Cadet BS-270382

Washer-Choke Shaft
(Superseded to BS-691869)

$3.99

$

In Stock, only 3 left!

0

642

Cub Cadet BS-223306

Cover-Air Cleaner

$

$

Not available

681

Cub Cadet BS-299060

Needle Valve Kit

$21.99

$

In Stock, only 3 left!

0

852

Cub Cadet BS-397294

Cleaner Group-Air

$

$

Currently unavailable

987

Cub Cadet BS-398970

Seal-Throttle Shaft
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0
