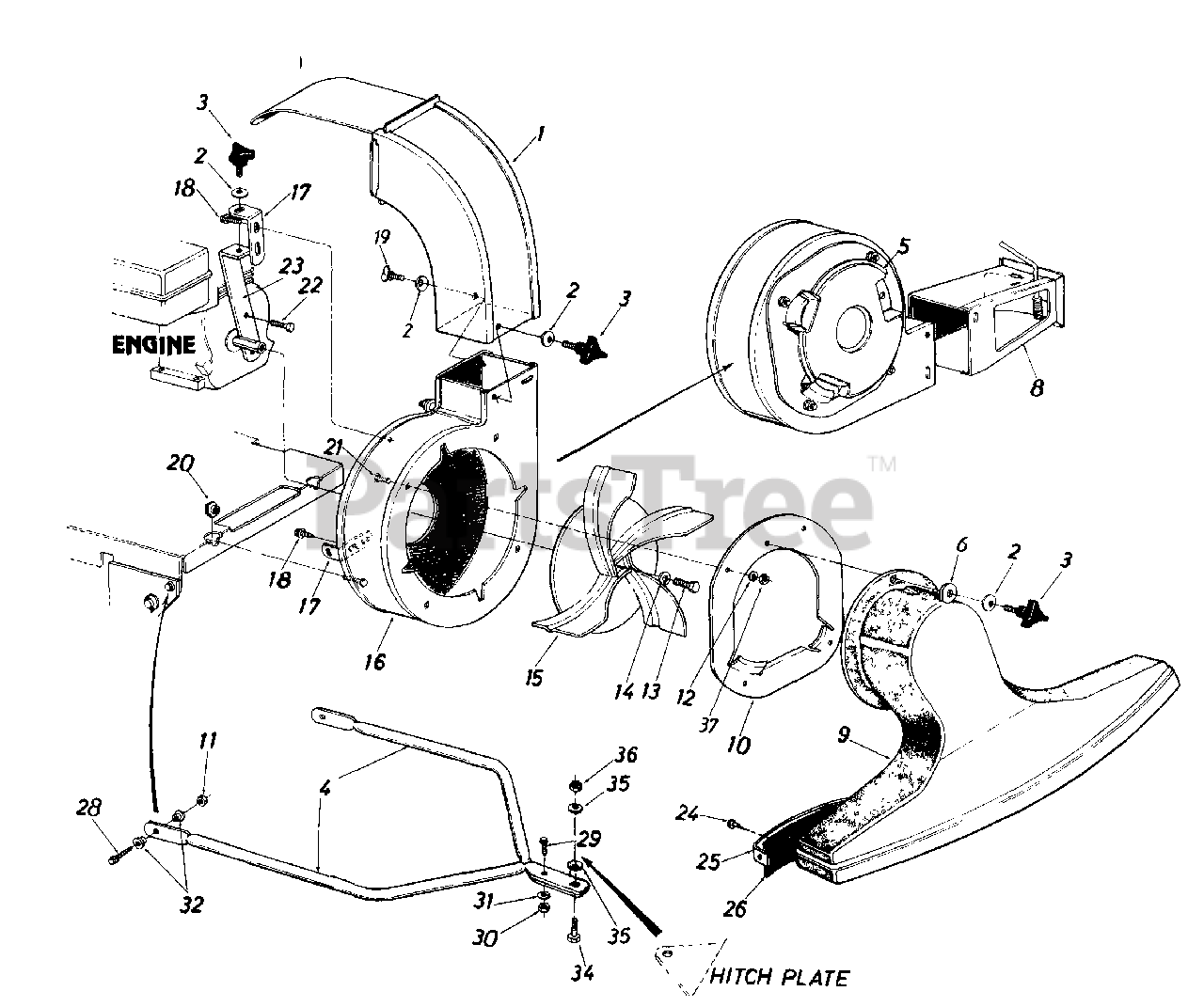

685 (246-685-100) - Cub Cadet Walk-Behind Blower (1996) Impeller Parts Diagram

Walk-Behind Blower

Impeller Parts Diagram

  • Title

1

Cub Cadet 14532

Air Duct Assembly

Variations

Cub Cadet 14532-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14532-0637

DUCT-AIR - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 14532-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 14532-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

2

Cub Cadet 736-0242

Belleville Wash..34" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 720-0170

Hand Knob

$11.99

$

In Stock, only 2 left!

0

4

Cub Cadet 749-0501

Tow Bar Half

Note: Optional Parts

Variations

Cub Cadet 749-0501-0637

TOW BAR-HALF - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 731-0608

Impeller Guard

$

$

Not available

6

Cub Cadet 736-0231

Fl-Wash..344" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 11

0

8

Cub Cadet 14479

Directional Discharge Ass'y.

Variations

Cub Cadet 14479-0483

DISCHARGE ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 14479-0498

DISCHARGE ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14479-0637

DISCHARGE ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 14479-0638

DISCHARGE ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 14479-0665

DISCHARGE ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 14479-0691

DISCHARGE ASSEMBLY - BLACK JACK (0691)

$

$

Not available

Cub Cadet 14479-0662

DISCHARGE ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 14479-0709

DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

9

Cub Cadet 14562B

Nozzle Ass'y.

$

$

Not available

10

Cub Cadet 14563A

Nozzle Plate Ass'y.

Variations

Cub Cadet 14563A-0483

PLATE ASSEMBLY-NOZZLE - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 14563A-0498

PLATE ASSEMBLY-NOZZLE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14563A-0637

PLATE ASSY-NOZZLE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 14563A-0638

PLATE ASSEMBLY-NOZZLE - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 14563A-0691

USE 14563A-0637 PLATE ASSY-NO - BLACK JACK (0691)

$

$

Not available

Cub Cadet 14563A-0709

PLATE ASSEMBLY-NOZZLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

11

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0119

L-Wash. 5/16" I.D."
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

14

Cub Cadet 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 9

0

15

Cub Cadet 14557A

Air Vane Plate Ass'y. w/Pulley

$

$

Not available

16

Cub Cadet 14496A

Blower Housing Complete
(Superseded to 14496B)

Variations

Cub Cadet 14496A-0483

BLOWER HOUSING ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 14496A-0498

BLOWER HOUSING ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14496A-0637

USE 14496B-0638 HOUSING ASM-B - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 14496A-0638

USE 14496B-0638 HOUSING ASM-B - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 14496A-0662

BLOWER HOUSING ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 14496A-0665

BLOWER HOUSING ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 14496A-0691

BLOWER HOUSING ASSEMBLY - BLACK JACK (0691)

$

$

Not available

Cub Cadet 14496A-0709

BLOWER HOUSING ASSEMBLY - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

17

Cub Cadet 14541

Right Angle Bracket
(Superseded to 14541-0637)

Variations

Cub Cadet 14541-0637

BRACKET-RIGHT ANGL - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 710-0600

Hex Self-Tap Scr. 5/16-18 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-1258

Thumb Screw 5/16-18

$

$

Not available

20

Cub Cadet 711-0758

Hex Shoulder Nut.50 I.D.
(Superseded to 911-0758)

$11.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0627

Hex Locking Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 14539

Housing - Engine Brace Ass'y.
(Superseded to 14539-0637)

Variations

Cub Cadet 14539-0637

HOUSING-ENG BRACE - POWDER BLACK (0637)

$

$

Not available

$

$

24

Cub Cadet 728-0173

Pop Rivet (5 Required)
(Superseded to 928-0173)

$4.49

$

In Stock, only 4 left!

0

25

Cub Cadet 14569

Wiper Retaining Strip

Variations

Cub Cadet 14569-0637

WIPER RETA - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 735-0214

Nozzle Wiper

$34.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-0602

Hex Bolt 5/16-18 x 1.00" Lg.

Note: Optional Parts

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

Note: Optional Parts

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

Note: Optional Parts

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

Note: Optional Parts

$4.49

$

In Stock, Qty 11

0

32

Cub Cadet 748-0234

Shoulder Spacer

Note: Optional Parts

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 738-0143

Shld. Bolt .496 Dia.

Note: Optional Parts

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0219

Belleville Wash..39" I.D x 1.12" OD
(Superseded to 936-0219)

Note: Optional Parts

$4.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 712-0181

Hex Jam L-Nut 3/8-26 Thd.

Note: Optional Parts

$4.49

$

In Stock, only 3 left!

0

37

Cub Cadet 712-3010

Hex Nut 5/16-18 Thd. (Gr 5)

$4.49

$

In Stock, Qty 20+

0
