685 (245-685-100) - Cub Cadet Walk-Behind Blower (1995) Rewind Starter And Flywheel Assembly Parts Diagram

Walk-Behind Blower

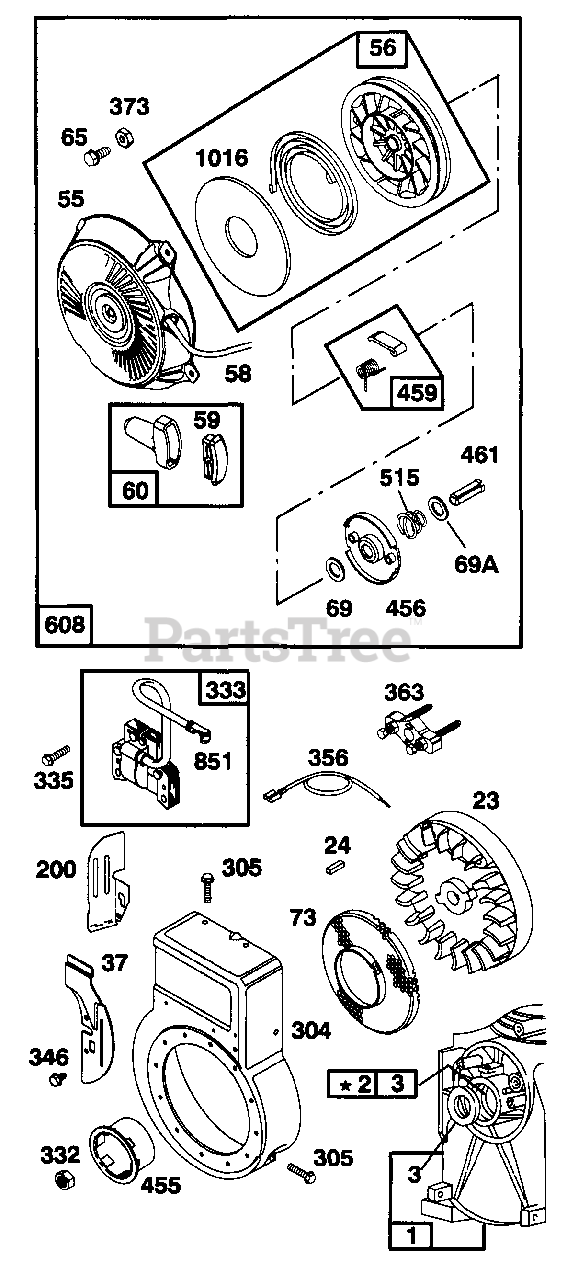

Rewind Starter And Flywheel Assembly Parts Diagram

  • Title

55

Cub Cadet BS-494846

Housing-Rewind Starter
(Superseded to BS-497830)

$49.99

$

In Stock, only 3 left!

0

56

Cub Cadet BS-493824

Pulley-Rewind Starter

$

$

Not available

58

Cub Cadet BS-280406

Rope-Rewind Starter Cut to Required Length.
(Superseded to BS-280406S)

$8.49

$

In Stock, Qty 5

0

59

Cub Cadet BS-396892

Insert-Starter Handle

$5.49

$

In Stock, only 1 left!

0

60

Cub Cadet BS-393152

Handle-Rewind Starter

$4.99

$

Usually ships in 2-12 days

0

65

Cub Cadet BS-94686

Screw-Housing Mtg.

$

$

Not available

69

Cub Cadet BS-280973

Washer

$5.49

$

Usually ships in 2-12 days

0

69A

Cub Cadet BS-224322

Washer

$5.49

$

Usually ships in 2-12 days

0

373

Cub Cadet BS-92987

Nut-Hex.
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

456

Cub Cadet BS-224321

Retainer

$8.99

$

In Stock, only 2 left!

0

459

Cub Cadet BS-492833

Pawl-Starter

$4.99

$

Usually ships in 2-12 days

0

461

Cub Cadet BS-262626

Pin-Spring

$4.49

$

Usually ships in 2-12 days

0

515

Cub Cadet BS-262625

Spring

$6.49

$

Usually ships in 2-12 days

0

608

Cub Cadet BS-495766

Starter-Rewind
(Superseded to BS-497830)

$49.99

$

In Stock, only 3 left!

0

1016

Cub Cadet BS-224278

Spacer

$3.49

$

Usually ships in 2-12 days

0

1

Cub Cadet BS-395990

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-297565

Bushing

$20.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

Note: Included In Gasket Set, P/N BS-495603

$5.49

$

In Stock, Qty 17

0

23

Cub Cadet BS-297229

Flywheel

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

37

Cub Cadet BS-222443

Guard-Flywheel

$

$

Not available

73

Cub Cadet BS-224883

Screen-Rotating

$21.99

$

In Stock, only 1 left!

0

200

Cub Cadet BS-223886

Guide-Air

$

$

Not available

304

Cub Cadet BS-495759

Housing-Blower

$

$

Not available

305

Cub Cadet BS-94786

Screw-Hex. Head
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 12

0

332

Cub Cadet 712-3056

Nut-Flywheel

$4.99

$

In Stock, Qty 13

0

333

Cub Cadet BS-397358

Armature-Magneto

$53.99

$

In Stock, Qty 20+

0

335

Cub Cadet BS-93414

Screw-Sem

$

$

Not available

346

Cub Cadet BS-94680

Screw-Hex. Head
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 8

0

356

Cub Cadet BS-398808

Wire-Stop

$11.99

$

In Stock, only 1 left!

0

363

Cub Cadet BS-19069

Flywheel Puller

$23.99

$

In Stock, only 1 left!

0

455

Cub Cadet BS-224250

Cup-Starter

$9.49

$

Usually ships in 2-12 days

0

851

Cub Cadet BS-493880

Cable Term.-Ignition
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet BS-495603

Gasket Set

Note: Includes Ref No 3

$32.99

$

In Stock, Qty 20+

0
