685 (244-685-100) - Cub Cadet Walk-Behind Blower (1994) Carburetor And Fuel Tank Parts Diagram

Walk-Behind Blower

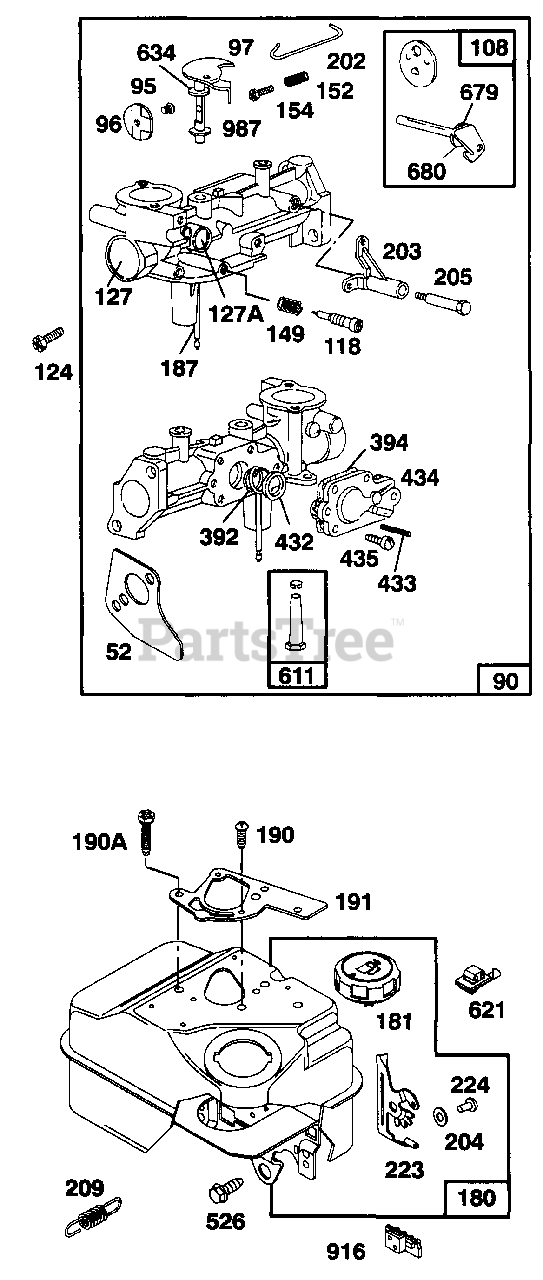

Carburetor And Fuel Tank Parts Diagram

  • Title

52

Cub Cadet BS-272585

Gasket-Carburetor Mounting Qty. 2
(Superseded to BS-273113S)

Note: Included Carburetor Kit, P/N BS-495606; Included in Gasket Set, P/N BS-495603

$4.49

$

In Stock, Qty 15

0

90

Cub Cadet BS-495426

Carburetor
(Superseded to BS-498298)

$149.99

$

In Stock, Qty 19

0

95

Cub Cadet BS-93499

Screw-Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

96

Cub Cadet BS-223793

Throttle-Carburetor

$

$

Currently unavailable

97

Cub Cadet BS-490048

Shaft-Throttle

$

$

Not available

108

Cub Cadet BS-491177

Valve-Choke

$

$

Not available

118

Cub Cadet BS-231533

Valve-Needle

$

$

Not available

124

Cub Cadet BS-94616

Screw-Hex. Head
(Superseded to BS-690953)

$5.99

$

Usually ships in 2-12 days

0

127

Cub Cadet BS-220352

Plug-Welch
(Superseded to BS-691718)

$13.99

$

In Stock, only 4 left!

0

127A

Cub Cadet BS-223789

Plug-Welch

$

$

Not available

149

Cub Cadet BS-26336

Spring-Needle Valve

$

$

Not available

152

Cub Cadet BS-260575

Spring-Throttle Adjustment

$

$

Currently unavailable

154

Cub Cadet BS-93527

Screw-Round Head

$

$

Not available

187

Cub Cadet BS-231068

Pipe-Fuel

$

$

Not available

202

Cub Cadet BS-262270

Link-Throttle
(Superseded to BS-691812)

$8.99

$

In Stock, only 1 left!

0

203

Cub Cadet BS-280720

Bell Crank

$

$

Not available

205

Cub Cadet BS-231520

Screw-Shoulder

$

$

Not available

392

Cub Cadet BS-262328

Spring-Diaphragm
(Superseded to BS-691823)

$4.99

$

In Stock, only 2 left!

0

394

Cub Cadet BS-272538

Diaphragm
(Superseded to BS-272538S)

Note: Included Carburetor Kit, P/N BS-495606

$3.99

$

In Stock, Qty 20+

0

432

Cub Cadet BS-221377

Cap-Spring
(Superseded to BS-690766)

$4.99

$

In Stock, only 3 left!

0

433

Cub Cadet BS-93265

Pin-Diaphragm Cover

$

$

Currently unavailable

434

Cub Cadet BS-213963

Cover-Diaphragm
(Superseded to BS-691713)

$10.99

$

In Stock, only 1 left!

0

435

Cub Cadet BS-93141

Screw-Diaphragm Cover

$

$

Not available

611

Cub Cadet BS-391813

Pipe-Fuel

$

$

Not available

634

Cub Cadet BS-271853

Washer-Shaft (Foam)
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

679

Cub Cadet BS-270382

Washer-Felt
(Superseded to BS-691869)

$3.99

$

In Stock, only 3 left!

0

680

Cub Cadet BS-221839

Washer-Shaft (Brass)

$

$

Not available

987

Cub Cadet BS-398970

Seal-Throttle Shaft
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

180

Cub Cadet BS-495405

Tank-Fuel
(Superseded to BS-694315)

$

$

Not available

181

Cub Cadet BS-494559

Cap-Fuel Tank

$

$

Not available

190

Cub Cadet BS-94712

Screw-Sem

$

$

Not available

190A

Cub Cadet BS-94677

Screw-Sem (1-3/4" Long)

$

$

Not available

191

Cub Cadet BS-272489

Gasket-Tank
(Superseded to BS-692241)

Note: Included in Carburetor Kit, P/N BS-495606; Included in Gasket Set, P/N BS-495603

$4.49

$

In Stock, Qty 10

0

204

Cub Cadet BS-222962

Bushing-Lever

$

$

Currently unavailable

209

Cub Cadet BS-262283

Spring-Governor
(Superseded to BS-691816)

$10.99

$

In Stock, only 4 left!

0

223

Cub Cadet BS-223455

Lever-Gov. Control

$

$

Currently unavailable

224

Cub Cadet BS-93491

Rivet-Tubular

$1.49

$

Usually ships in 2-12 days

0

526

Cub Cadet BS-94659

Screw-Sem

$

$

Not available

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

916

Cub Cadet BS-280321

Rack-Governor Gear

$

$

Not available

Cub Cadet BS-495603

Gasket Set

Note: Includes Ref. No. 52, 191

$32.99

$

In Stock, Qty 20+

0

Cub Cadet BS-495606

Carburetor Kit

Note: Includes Ref. No. 52, 394, 191

$26.99

$

In Stock, Qty 11

0
