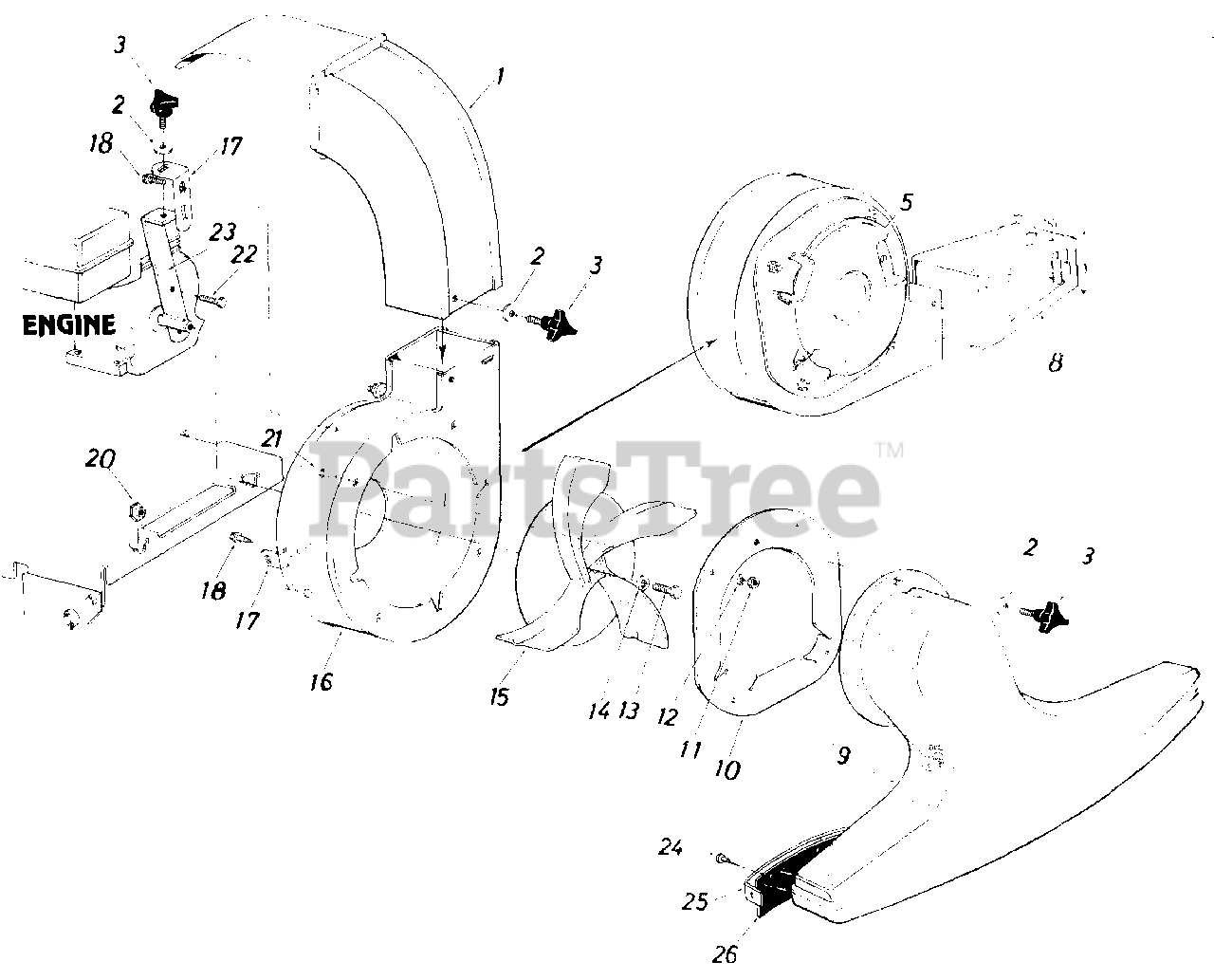

685 (244-685-100) - Cub Cadet Walk-Behind Blower (1984) Blower And Nozzle Parts Diagram

Walk-Behind Blower

Blower And Nozzle Parts Diagram

  • Title

1

Cub Cadet 14532

Air Duct Assembly

Note: Color Code - 499

Variations

Cub Cadet 14532-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14532-0637

DUCT-AIR - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 14532-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 14532-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

2

Cub Cadet 736-0242

Belleville Wash. .34" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 720-0170

3-Arm Thumb Scr. 5/16-18 x .75" Lg.

$11.99

$

In Stock, only 2 left!

0

5

Cub Cadet 731-0608

Blower Guard

$

$

Not available

8

Cub Cadet 14479

Directional Discharge Ass'y.

Variations

Cub Cadet 14479-0483

DISCHARGE ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 14479-0498

DISCHARGE ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14479-0637

DISCHARGE ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 14479-0638

DISCHARGE ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 14479-0665

DISCHARGE ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 14479-0691

DISCHARGE ASSEMBLY - BLACK JACK (0691)

$

$

Not available

Cub Cadet 14479-0662

DISCHARGE ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 14479-0709

DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

9

Cub Cadet 14562

Nozzle Ass'y.

$

$

Not available

10

Cub Cadet 14563

Nozzle Plate Ass'y.
(Superseded to 14563A)

$

$

Not available

11

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

14

Cub Cadet 736-0217

L.-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 6

0

15

Cub Cadet 14557

Air Vane Plate Ass'y. w/pulley
(Superseded to 14557A-0637)

Note: Color Code - 499

$

$

Not available

16

Cub Cadet 14496

Blower Housing Complete
(Superseded to 14496B)

Note: Color Code - 499

$

$

Not available

17

Cub Cadet 14541

Right Angle Bracket
(Superseded to 14541-0637)

Variations

Cub Cadet 14541-0637

BRACKET-RIGHT ANGL - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 710-0600

Hex Wash. Hd. Self Tap Scr. 5/16-18 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-0758

Hex Shoulder Nut .50 I.D.
(Superseded to 911-0758)

$11.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0627

Hex Locking Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 14539

Housing - Engine Brace Ass'y.
(Superseded to 14539-0637)

Variations

Cub Cadet 14539-0637

HOUSING-ENG BRACE - POWDER BLACK (0637)

$

$

Not available

$

$

24

Cub Cadet 728-0143

Pop Rivet
(Superseded to 928-0180)

Note: (5 Required)

$

$

Not available

25

Cub Cadet 14569

Wiper Retaining Strip

Variations

Cub Cadet 14569-0637

WIPER RETA - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 735-0214

Nozzle Wiper

$34.99

$

Usually ships in 3-6 days

0
